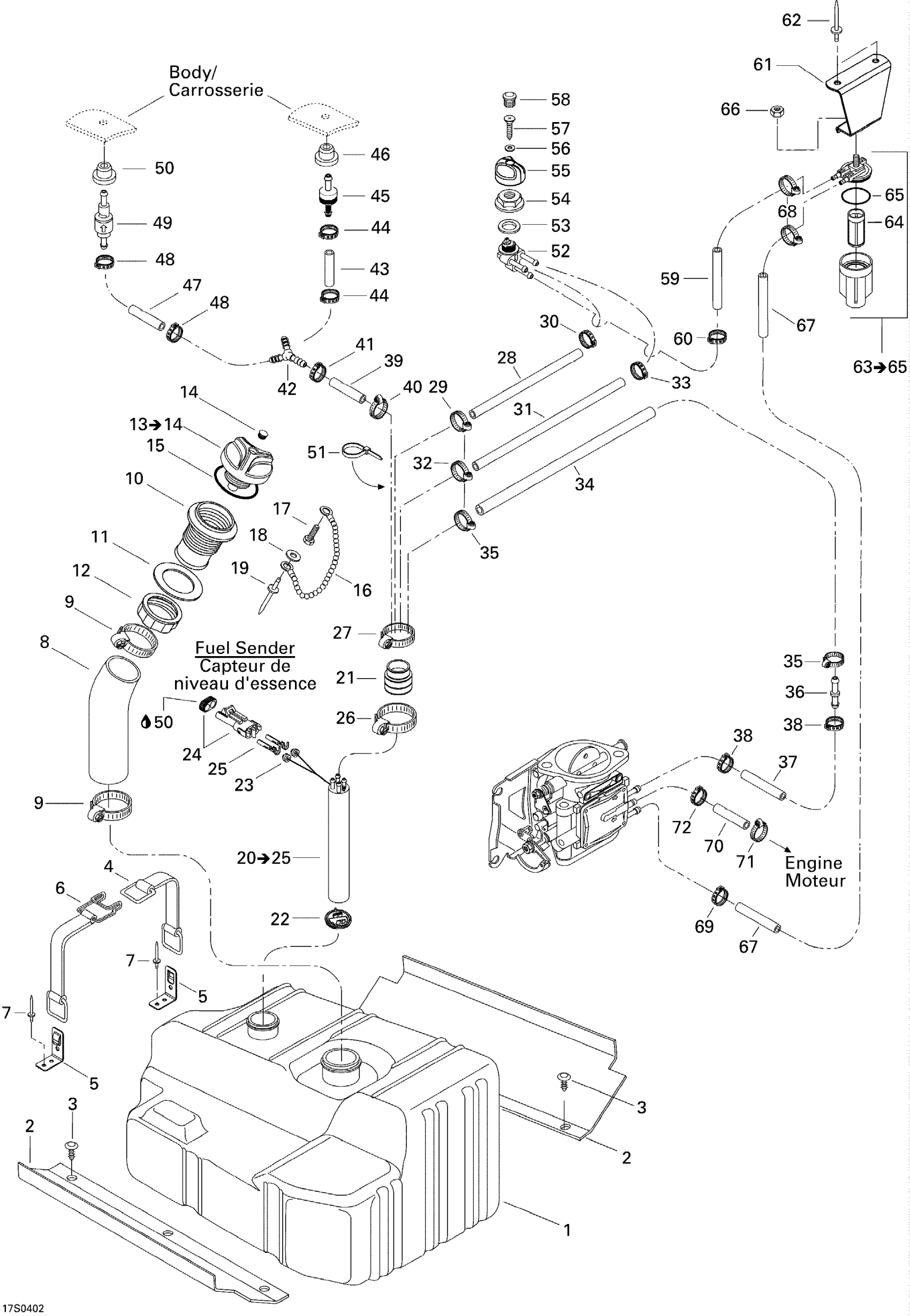

Sea-doo GTI LE, 2004 Fuel System Diagram

#

Description
Price

1

Fuel Tank

275500291

Unavailable

2

Rubber Pad

293830077

Unavailable

3

Black, Dart

293730006

$0.81

4

Fuel Tank Strap

293850036

$13.62

5

STRAP CLIP 90 - Call your local BRP dealership

293850076

Unavailable

6

Fuel Tank Strap

293850094

$17.52

7

Avdel Rivet 3/16"

293150037

$0.47

8

Filler Hose Neck

275500520

Unavailable

9

Tridon Clamp

293650023

$11.37

10

Filler Neck, Fuel

275500231

$12.40

11

Gasket

293250029

$12.06

12

Filler Neck Nut, Fuel

211100012

$11.51

13

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$22.72

14

Black, Snap Cap

293000034

$7.48

15

GASKET - Call your local BRP dealership This part replaces 293250075.

293250211

Unavailable

16

Fuel Cap Chain

275500974

$14.27

17

Screw K40 X 10

241140060

$1.25

18

Flat Washer M3, Stainless

234032600

$0.52

19

Pop Rivet 1/8"

390407900

$1.17

20

BAFFLE - Call your local BRP dealership | Includes 20 to 25

275500470

Unavailable

21

Tube Adapter

275500111

Unavailable

22

FUEL FILTER - Call your local BRP dealership

275500397

Unavailable

23

Wire Seal

278000218

$3.48

24

Male Connector, 2 Circuits

278000220

$11.02

25

Female Terminal

278000223

$2.55

26

Tridon Clamp

293650023

$11.37

27

Tridon Clamp

293650035

$5.80

28

Was 275500549 Hose 1/4"

219704357

$178.33

29

Tridon Gear Clamp

293650170

$1.74

30

Oetiker Clamp

293650042

$1.40

31

Was 275500549 Hose 1/4"

219704357

$178.33

32

Tridon Gear Clamp

293650170

$1.74

33

Oetiker Clamp

293650042

$1.40

34

Was 275500549 Hose 1/4"

219704357

$178.33

35

Tridon Gear Clamp

293650170

$1.74

36

Straight Fitting

293710039

$6.75

37

Was 275500549 Hose 1/4"

219704357

$178.33

38

Oetiker Gear Clamp

293650025

$2.46

39

Was 275500549 Hose 1/4"

219704357

$178.33

40

Tridon Gear Clamp

293650170

$1.74

41

Oetiker Gear Clamp

293650025

$2.46

42

Y-Fitting

293710059

$8.19

43

Was 275500549 Hose 1/4"

219704357

$178.33

44

Oetiker Gear Clamp

293650025

$2.46

45

Check Valve

275500398

$8.57

46

Grommet

293720029

$1.13

47

Was 275500549 Hose 1/4"

219704357

$178.33

48

Oetiker Gear Clamp

293650025

$2.46

49

CHECK VALVE - Call your local BRP dealership

275500479

Unavailable

50

Grommet

293720029

$1.13

51

Tie-Rap 180 mm

414115200

$0.09

52

Fuel Valve

275500098

$34.42

53

GASKET - Call your local BRP dealership

293250004

Unavailable

54

HEX. PLASTIC NUT - Call your local BRP dealership

212100009

Unavailable

55

FUEL VALVE KNOB, BLACK - Call your local BRP dealership

275500263

Unavailable

56

Flat Washer 4 mm

234040600

$0.46

57

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

58

Black, Cap

275500241

$2.76

59

Was 275500549 Hose 1/4"

219704357

$178.33

60

Oetiker Clamp

293650042

$1.40

61

FUEL FILTER SUPPORT - Call your local BRP dealership

275500287

Unavailable

62

Pop Rivet 3/16"

293150043

$1.61

63

Fuel Filter Ass'y | Includes 15 - 17.

275500088

$39.52

64

FUEL FILTER - Call your local BRP dealership

275500089

Unavailable

65

O-Ring

275500090

$6.84

66

Hex. Elastic Stop Nut M6

232561600

$0.92

67

Was 275500549 Hose 1/4"

219704357

$178.33

68

Tridon Gear Clamp

293650170

$1.74

69

Oetiker Gear Clamp

293650025

$2.46

70

Was 275500549 Hose 1/4"

219704357

$178.33

71

Tridon Gear Clamp

293650170

$1.74

72

Oetiker Gear Clamp

293650025

$2.46
