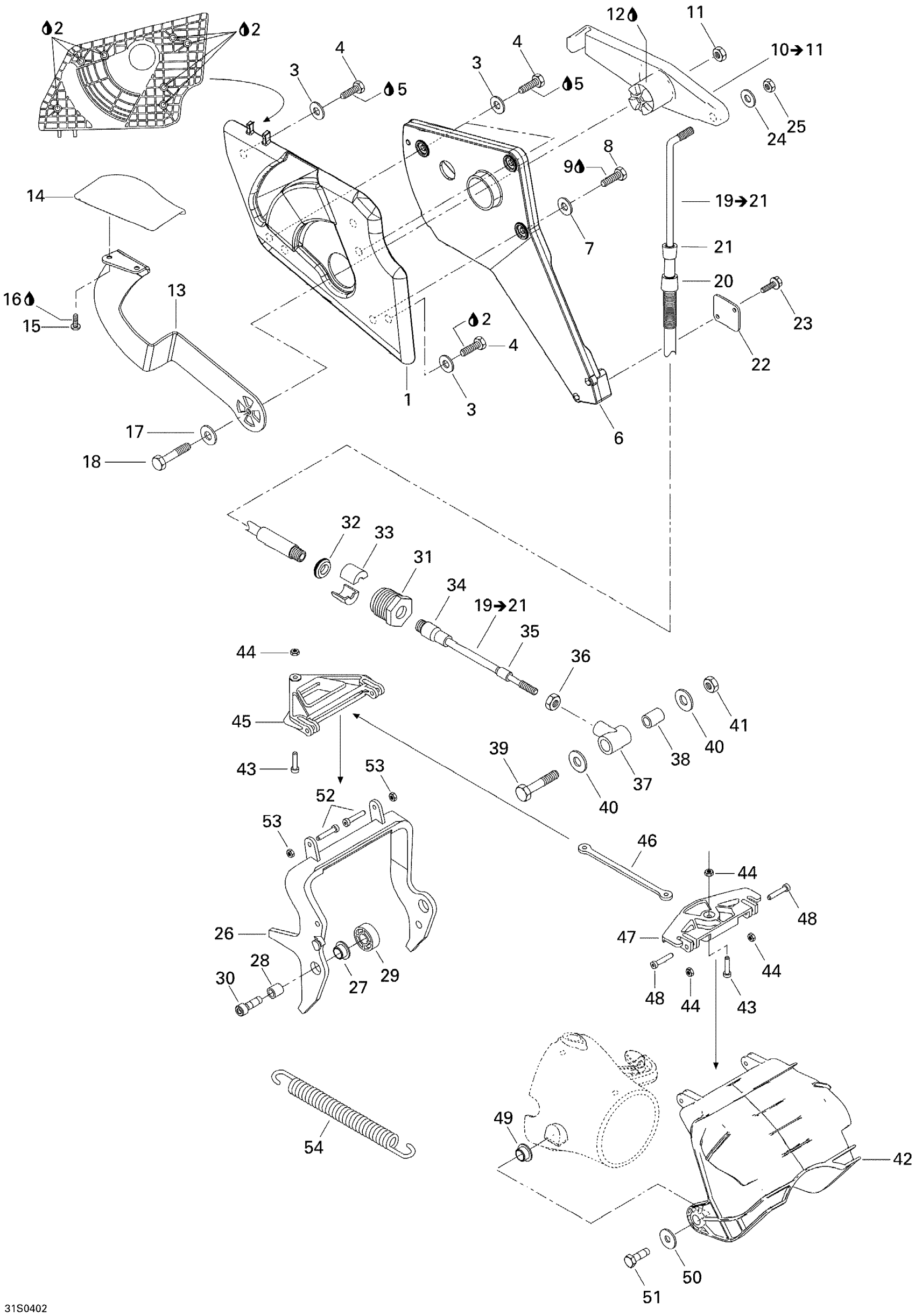

Sea-doo GTI LE, 2004 Reverse Diagram

#

Description
Price

1

Handle Housing

271000984

Unavailable

2

Silicone Sealant 51388, 300 ml

296000309

Unavailable

3

Flat Washer M6, Stainless

234062600

Unavailable

4

Hex. Cap Screw M6 X 12

207161260

Unavailable

5

Loctite 243, 10 ml

293800060

Unavailable

6

REVERSE CABLE SUPPORT - Call your local BRP dealership

268000010

Unavailable

7

Flat Washer M6, Stainless

234062600

Unavailable

8

Hex. Screw M6 X 16

207161660

Unavailable

9

Loctite 243, 10 ml

293800060

Unavailable

10

Lever Ass.

271000986

Unavailable

11

Hex. Elastic Stop Nut M6

232561600

Unavailable

12

Synthetic Grease, 400 G

293550010

Unavailable

13

HANDLE LEVER - Call your local BRP dealership | RXP

271000982

Unavailable

14

REVERSE HANDLE - Call your local BRP dealership

271000983

Unavailable

15

PHILLIPS SCREW M5 X 12 - Call your local BRP dealership

208451260

Unavailable

16

Loctite 243, 10 ml

293800060

Unavailable

17

Stainless Flat Washer M6

234061600

Unavailable

18

Hex. Screw M6 X 16

207161660

Unavailable

19

Reverse Cable

268000017

Unavailable

20

Boot, Large

277000473

Unavailable

21

Boot, Small

277000466

Unavailable

22

BRACKET - Call your local BRP dealership

277001058

Unavailable

23

Hex. Flange Screw M5 X 30

207153060

Unavailable

24

Flat Washer M5, Stainless

234051600

Unavailable

25

HEX. ELASTIC STOP NUT - Call your local BRP dealership

212000006

Unavailable

26

ARM BLACK - Call your local BRP dealership

271001012

Unavailable

27

Venturi Bushing

271000321

Unavailable

28

Spacer

271001039

Unavailable

29

BUSHING - Call your local BRP dealership | GTS PRO

293900038

Unavailable

30

PIVOT SCREW M8 X 25 - Call your local BRP dealership

250000026

Unavailable

31

Steering Cable Lock This part replaces 277000784.

277001729

Unavailable

32

RUBBER WASHER - Call your local BRP dealership

211100009

Unavailable

33

Half Ring

277000055

Unavailable

34

Boot, Large

277000473

Unavailable

35

Boot, Small

277000466

Unavailable

36

Hex. Nut

212100005

Unavailable

37

Joint

277001204

Unavailable

38

Spacer

271001020

Unavailable

39

Hex. Screw M6 X 35

207063560

Unavailable

40

Flat Washer M6, Stainless

234062600

Unavailable

41

Hex. Elastic Stop Nut M6

232561600

Unavailable

42

Gate Reverse

271001317

Unavailable

43

PIVOT SCREW - Call your local BRP dealership

250000018

Unavailable

44

Hex. Elastic Nut M5 | X

232551600

Unavailable

45

TRIANGLE - Call your local BRP dealership

268000013

Unavailable

46

CONNECTOR ROD - Call your local BRP dealership

271001018

Unavailable

47

ROD PIVOT - Call your local BRP dealership

268000014

Unavailable

48

SCREW PIVOT - Call your local BRP dealership

250000023

Unavailable

49

Spacer

277001066

Unavailable

50

Flat Washer 8 mm, Stainless

234082600

Unavailable

51

Hex. Screw M8 X 30, Scotch Grip

207383060

Unavailable

52

PIVOT SCREW - Call your local BRP dealership

250000018

Unavailable

53

Hex. Elastic Nut M5 | X

232551600

Unavailable

54

Spring

271001328

Unavailable
