1972 Suzuki GT550 Starter Clutch Diagram

← All diagrams

Find the part on the Starter Clutch diagram for your 1972 Suzuki GT550, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

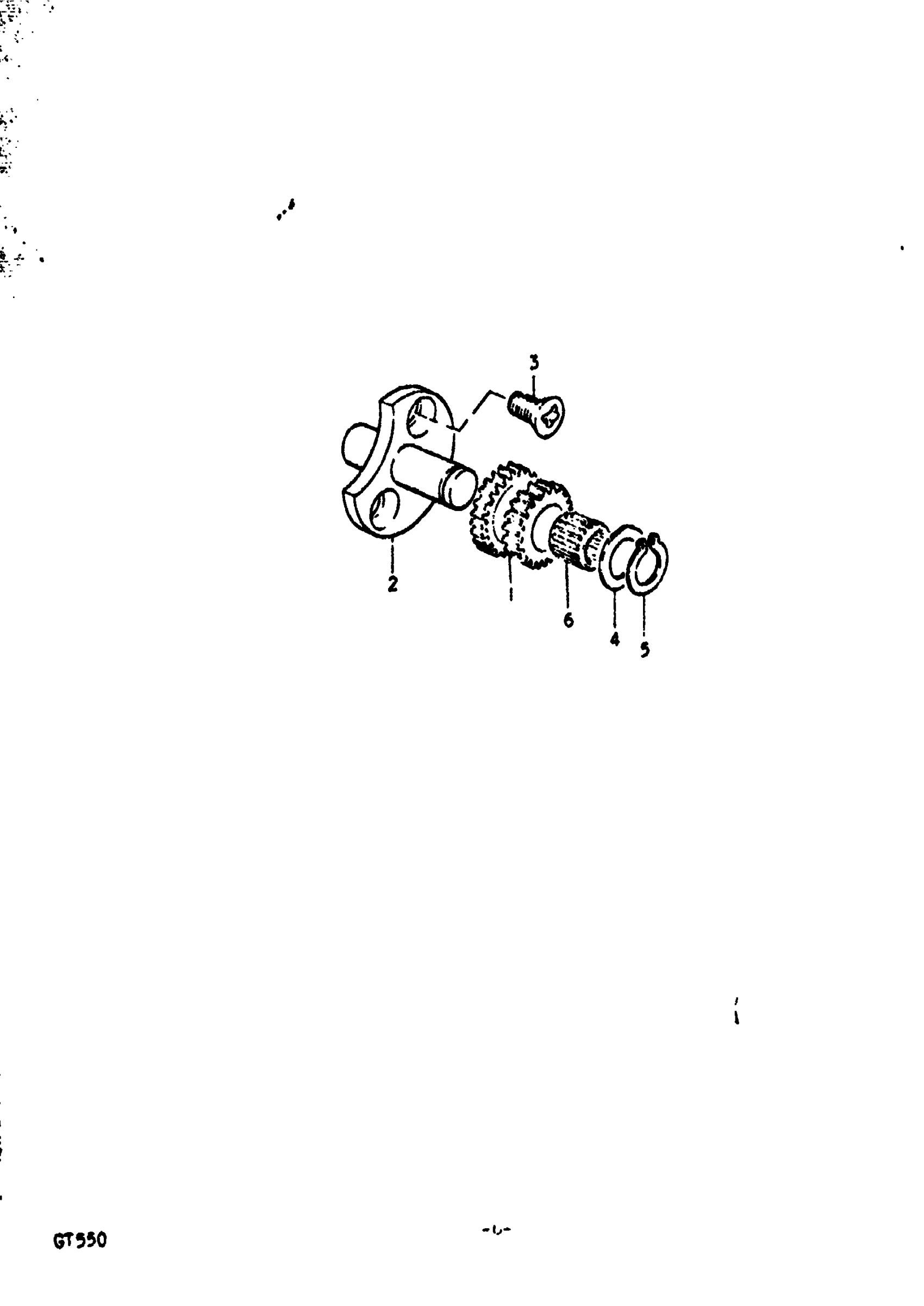

1972 Suzuki GT550 Starter Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR, STARTER IDLE

12611-34001

1
Out of stock

2

SHAFT, STARTER IDLE GEAR

12612-34001

—
Out of stock

3

SCREW This part replaces 02122-06168.

02122-06167

2
Out of stock

4

SHIM (12X20X1) This part replaces 08211-12201.

09181-12167

1
Out of stock

5

CIRCLIP This part replaces 08331-31128.

08331-3112A

1
Out of stock

6

BEARING

09263-12010

1
Out of stock
