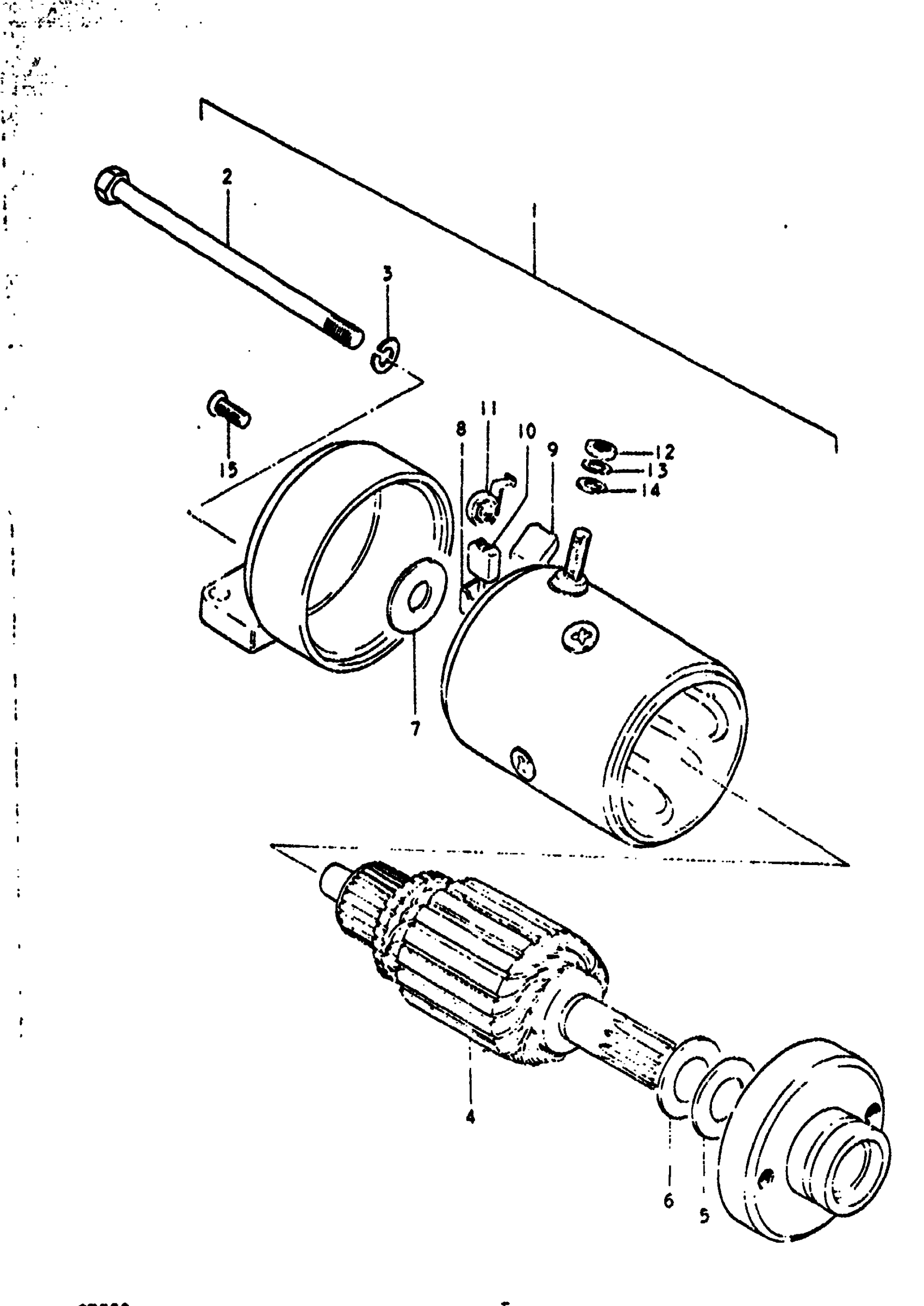

Suzuki GT550 (1972) STARTING MOTOR (MADE BY KOKUSAN) Diagram

#

Description

Price

1

MOTOR ASSY, STARTING | Includes Item(s) 2 - 15

31100-34020

Unavailable

2

BOLT

31281-34020

Unavailable

3

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

4

ARMATURE

31311-34020

Unavailable

5

SHIM (1) | 30x15.5x1

31361-34020

Unavailable

6

SHIM (2) | 30x15.5x0.2

31362-34020

Unavailable

7

SHIM (3) | 25x9.7x1

31363-34020

Unavailable

8

HOLDER, BRUSH

31173-34020

Unavailable

9

BRUSH (+)

31131-34020

Unavailable

10

BRUSH (-)

31132-34020

Unavailable

11

SPRING, BRUSH

31135-34020

Unavailable

12

.NUT This part replaces 08311-31068.

08310-00067

$2.13

13

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

14

WASHER This part replaces 08322-21068.

08322-01067

$2.13

15

SCREW This part replaces 02111-04127.

02112-0412A

$1.49
