1972 Suzuki GT550 LH Handle Switch Diagram

← All diagrams

Find the part on the LH Handle Switch diagram for your 1972 Suzuki GT550, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

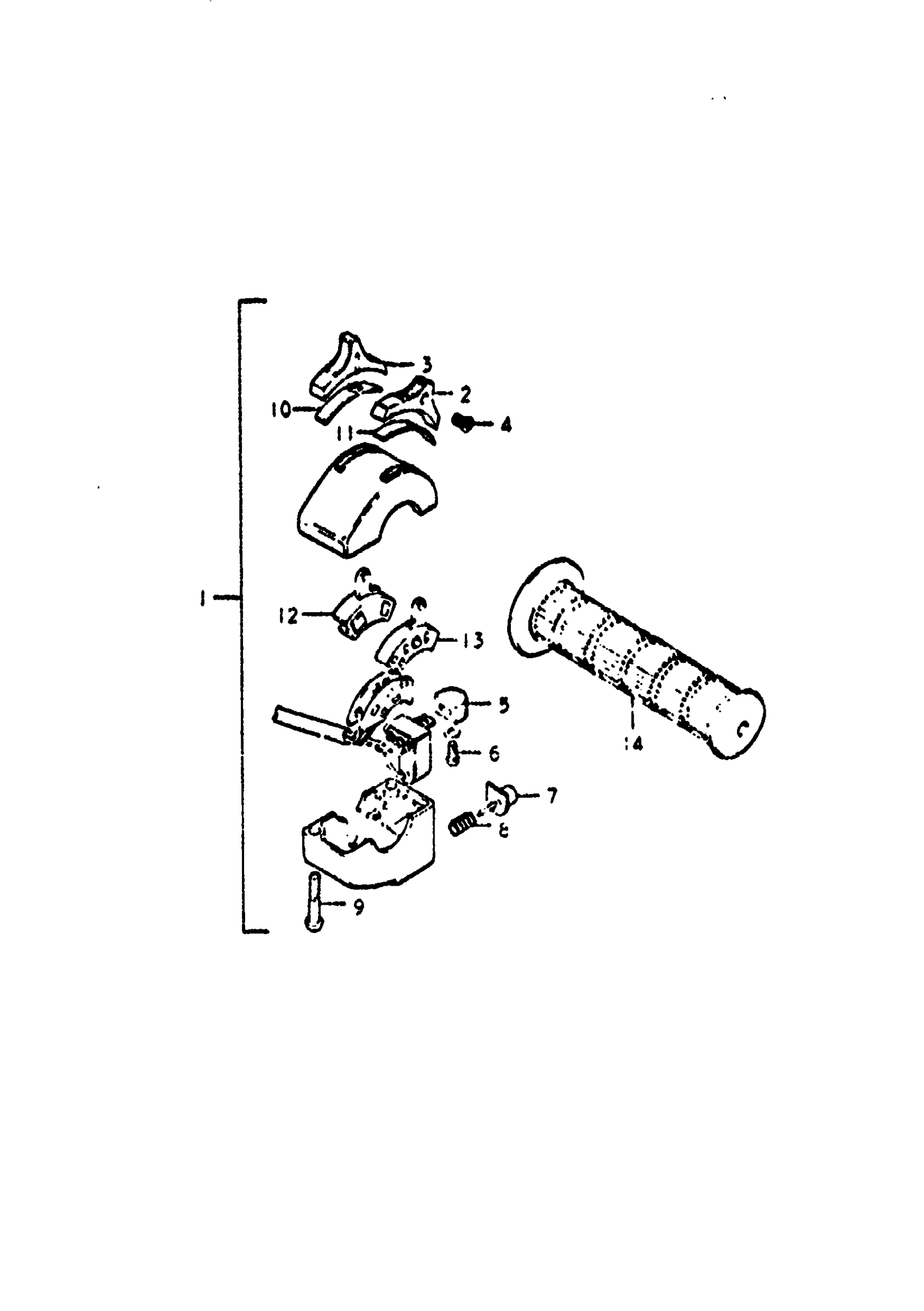

1972 Suzuki GT550 LH Handle Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWITCH ASSY, HANDLE | FROM 57700-33010; Includes Item(s) 2 - 13

57700-33011

1
Out of stock

2

KNOB,HANDLE SWI | FROM 57712-33010 This part replaces 57712-33011.

57712-33012

1
Out of stock

3

KNOB, LIGHTING This part replaces 57713-33010.

57713-33011

1
Out of stock

4

SCREW This part replaces 03121-03088.

03121-03068

2
Out of stock

5

KNOB, LOWER

57742-33010

1
Out of stock

6

SCREW This part replaces 02121-03068.

02122-03067

1
Out of stock

7

BUTTON, HORN

57850-31010

1
Out of stock

8

SPRING, HORN BUTTON

57761-26010

1
Out of stock

9

SCREW This part replaces 02111-05207.

02112-05207

2
Out of stock

10

PLATE

57714-33010

1
Out of stock

11

PLATE, LIGHTING SWITCH

57714-33010

1
Out of stock

12

BLOCK, LIGHTING SWITCH

57734-33010

1
Out of stock

13

BLOCK, DIMMER SWITCH

57353-33010

1
Out of stock

14

GRIP, LH

57211-33010

1
Out of stock
