1987 Suzuki GSXR50 Right Handle Switch Diagram

← All diagrams

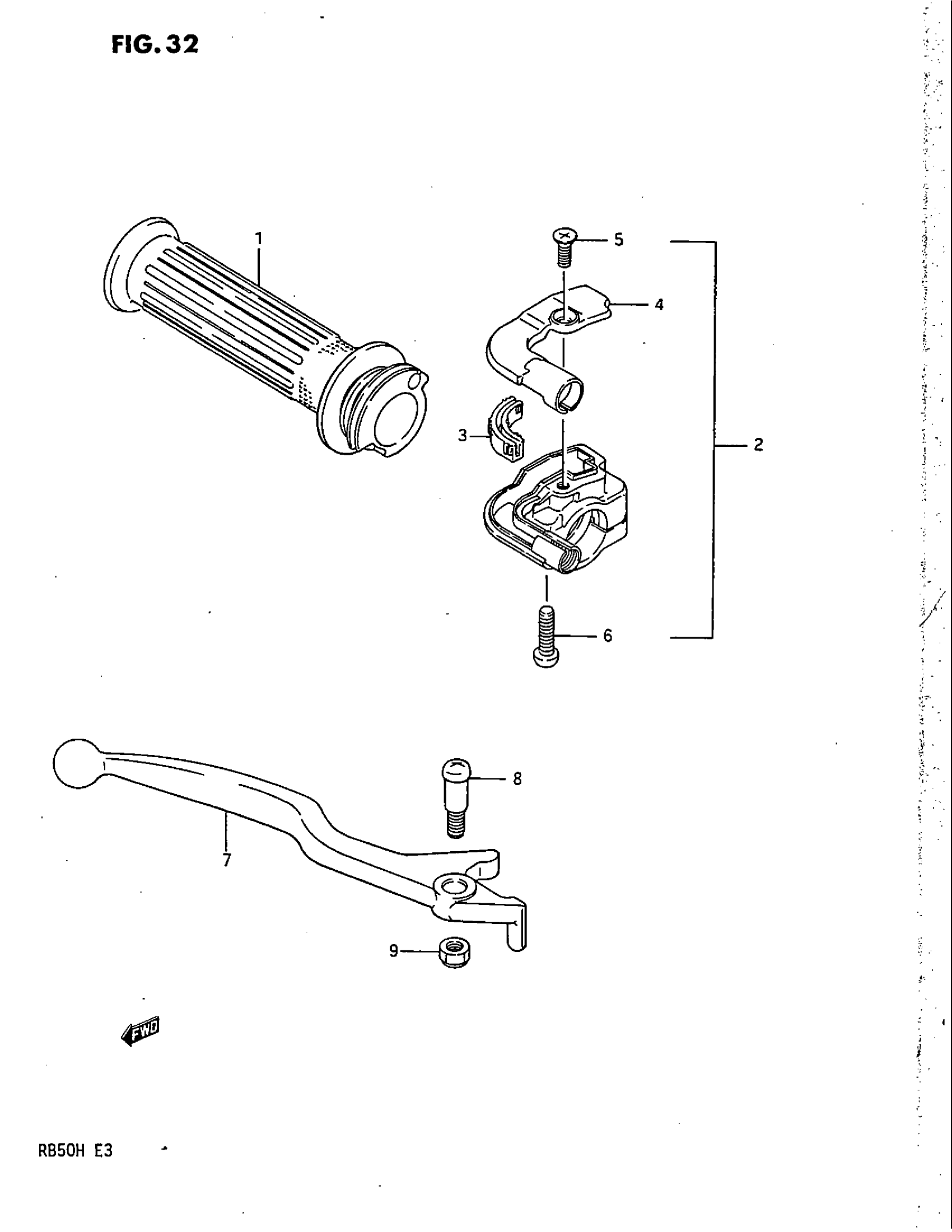

Find the part on the Right Handle Switch diagram for your 1987 Suzuki GSXR50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Suzuki GSXR50 Right Handle Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP, THROTTLE

57110-13600

1
Out of stock

2

CASE ASSY, THROTTLE | Includes Item(s) 3 - 6 This part replaces 57100-28B00.

57100-13610

1
Out of stock

3

PIECE, GUIDE

57122-13600

1
Out of stock

4

COVER

57129-13601

1
Out of stock

5

SCREW This part replaces 02132-04105.

02122-0410A

1
Out of stock

6

SCREW This part replaces 02112-05165.

02112-05164

1
Out of stock

7

LEVER, BRAKE This part replaces 57421-13000.

57421-13001

1
Out of stock

8

SCREW This part replaces 57431-13000.

57431-13001

1
Out of stock

9

.NUT This part replaces 08319-21065.

08319-2106B

1
Out of stock
