1987 Suzuki GSXR50 Left Handle Switch Diagram

← All diagrams

Find the part on the Left Handle Switch diagram for your 1987 Suzuki GSXR50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

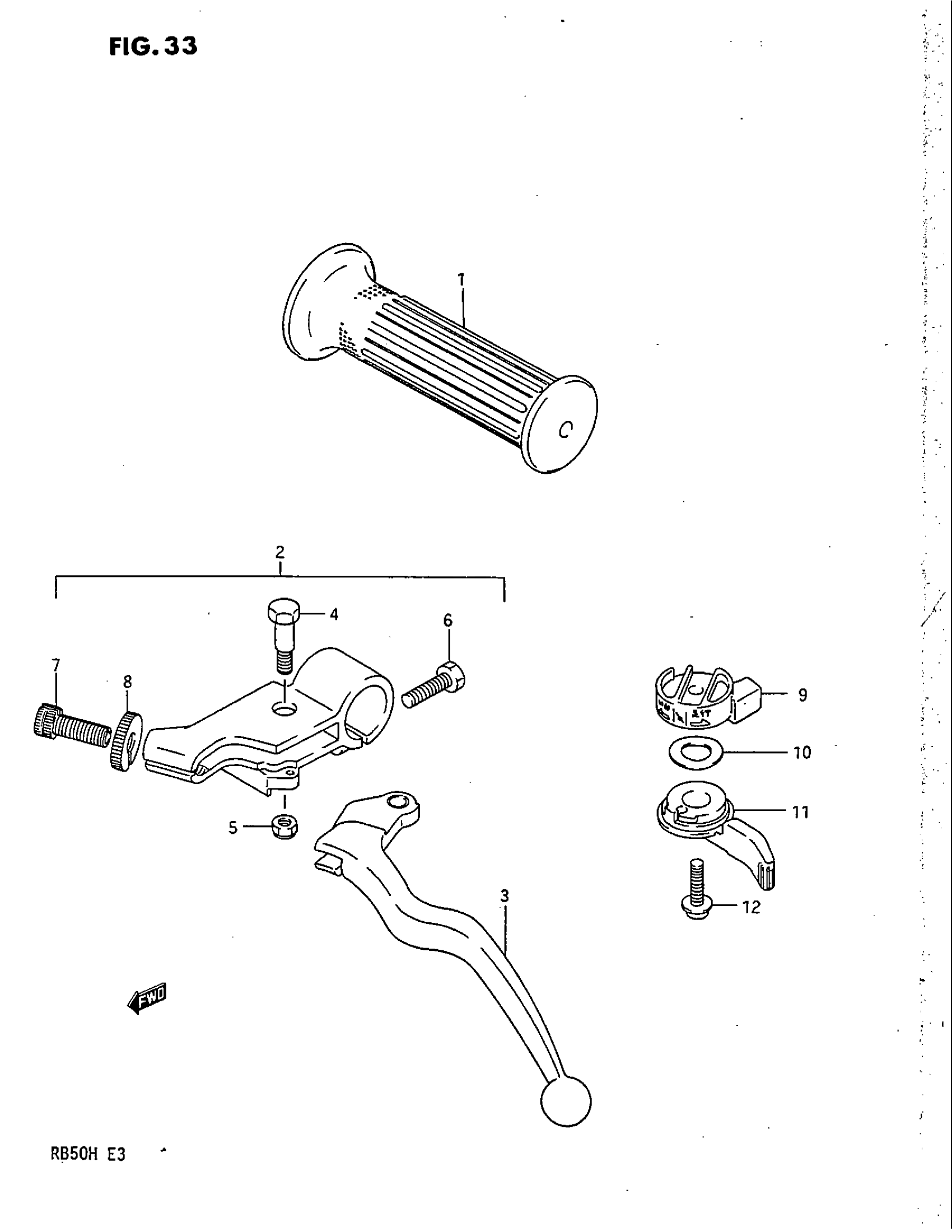

1987 Suzuki GSXR50 Left Handle Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP, LH This part replaces 57211-13600.

57211-46111

1
Out of stock

2

LEVER ASSY, CLUTCH | Includes Item(s) 3 - 8

57500-28B02

1
Out of stock

3

LEVER, CLUTCH

57620-33451

1
Out of stock

4

BOLT This part replaces 57431-33450.

57531-14A00

1
Out of stock

5

.NUT This part replaces 08319-21065.

08319-2106B

1
Out of stock

6

..BOLT This part replaces 01547-06205.

01547-0620B

1
Out of stock

7

.ADJUSTER, BRAKE CABLE This part replaces 57441-13A00.

57441-26010

1
Out of stock

8

NUT This part replaces 57442-44400.

57442-11010

1
Out of stock

9

BODY This part replaces 37572-47A00.

37572-49441

1
Out of stock

10

WASHER, ADJUSTER

58722-03010

1
Out of stock

11

LEVER, STARTER

58721-27503

1
Out of stock

12

SCREW This part replaces 09138-05010.

02112-7516A

1
Out of stock
