1987 Suzuki GSXR50 Cowling Diagram

← All diagrams

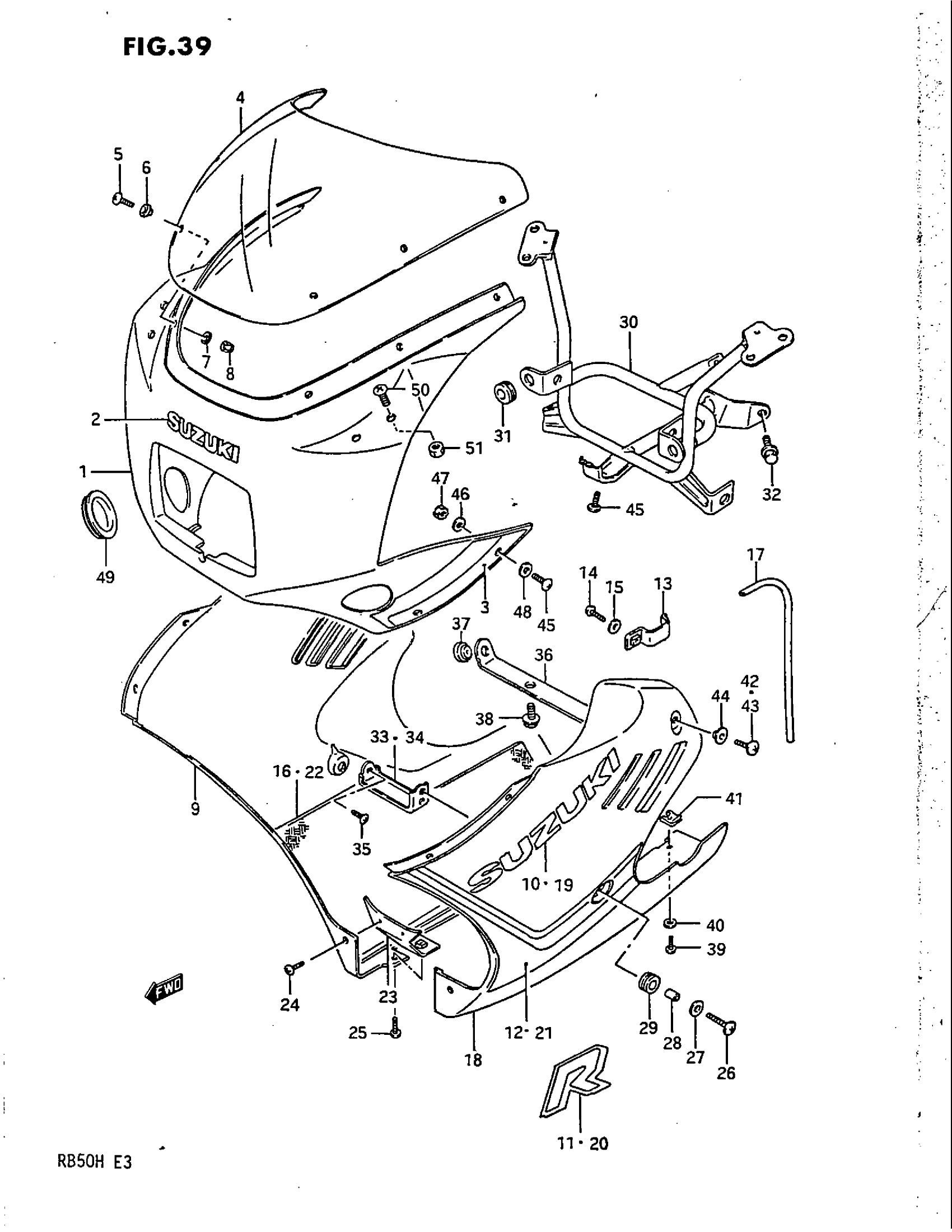

Find the part on the Cowling diagram for your 1987 Suzuki GSXR50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Suzuki GSXR50 Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 3 This part replaces 94400-28830-23Z.

94410-28B00

1
Out of stock

2

EMBLEM,"SUZUKI" This part replaces 68166-31300-064.

68166-31310-064

1
Out of stock

3

TAPE SET

68190-28B00-81F

1
Out of stock

4

WINDOW, COWLING

94611-28B00

1
Out of stock

5

SCREW This part replaces 02142-05164.

02142-0516A

6
Out of stock

6

CUSHION(5.5X11X This part replaces 09320-05008.

09320-05021

6
Out of stock

7

6

$1.97

In stock

8

.NUT This part replaces 08319-21055.

08319-2105A

6
Out of stock

9

NO DESCRIPTION AVAILABLE | Includes Item(s) 10 - 17 This part replaces 94700-28832-14L.

94700-28834

1
Out of stock

10

EMBLEM

68111-43400-07G

1
Out of stock

11

EMBLEM, SIDE

68261-28B00-8AP

1
Out of stock

12

TAPE SET, SIDE RH

68680-28B00-8VF

1
Out of stock

13

CLAMP

09403-07317

1
Out of stock

14

SCREW This part replaces 02142-05128.

02142-05127

1
Out of stock

15

WASHER This part replaces 08322-21057.

08322-01057

1
Out of stock

16

NO DESCRIPTION AVAILABLE This part replaces 94473-28B10.

94473-28B11

1
Out of stock

17

HOSE (4.2X7X1550) | L:1550->400

09343-04119

1
Out of stock

18

NO DESCRIPTION AVAILABLE | Includes Item(s) 19 - 22 This part replaces 94800-28832-14L.

94800-28834

1
Out of stock

19

EMBLEM

68111-43400-07G

1
Out of stock

20

EMBLEM, SIDE

68261-28B00-8AP

1
Out of stock

21

TAPE SET, SIDE LH

68690-28B00-8VF

1
Out of stock

22

NO DESCRIPTION AVAILABLE This part replaces 94474-28B10.

94474-28B11

1
Out of stock

23

BRACKET, COWLING LOWER

94480-28B10

1
Out of stock

24

SCREW This part replaces 02142-05128.

02142-05127

2
Out of stock

25

SCREW This part replaces 02142-05166.

02142-0516A

1
Out of stock

26

SCREW

02142-06207

2
Out of stock

27

WASHER (6.5X18X1.0)

09160-06028

2
Out of stock

38

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

2
Out of stock

29

CUSHION

09320-09016

2
Out of stock

30

BRACE, COWLING

94510-28B01

1
Out of stock

31

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

2
Out of stock

32

BOLT This part replaces 01517-06164.

01550-0616A

3
Out of stock

33

BRACE, LOWER RH

94540-28B00

1
Out of stock

34

BRACE, LOWER LH

94550-28B00

1
Out of stock

35

SCREW This part replaces 02142-06126.

02142-0612A

2
Out of stock

36

PLATE, SUPPORT

94581-28B00

1
Out of stock

37

CUSHION This part replaces 09321-10021.

09321-10007

2
Out of stock

38

BOLT (8X12) This part replaces 01517-08125.

01550-0812A

2
Out of stock

39

SCREW, BRACKET This part replaces 03241-05166.

03241-0516A

2
Out of stock

40

WASHER

09160-05013

2
Out of stock

41

NUT

09148-05020

2
Out of stock

42

SCREW, LH (6X12)

02142-06127

1
Out of stock

43

SCREW, RH (6X20)

09125-06052

1
Out of stock

44

WASHER

09169-06033

2

$1.81

In stock

45

SCREW This part replaces 02142-05128.

02142-05127

5
Out of stock

46

4

$1.97

In stock

47

NUT This part replaces 08310-11056.

08310-0005A

4
Out of stock

48

WASHER This part replaces 08322-21057.

08322-01057

4
Out of stock

49

GROMMET

35674-28B10

2
Out of stock

50

SCREW

02142-06127

4
Out of stock

51

NUT This part replaces 08316-26068.

08316-2006A

4
Out of stock
