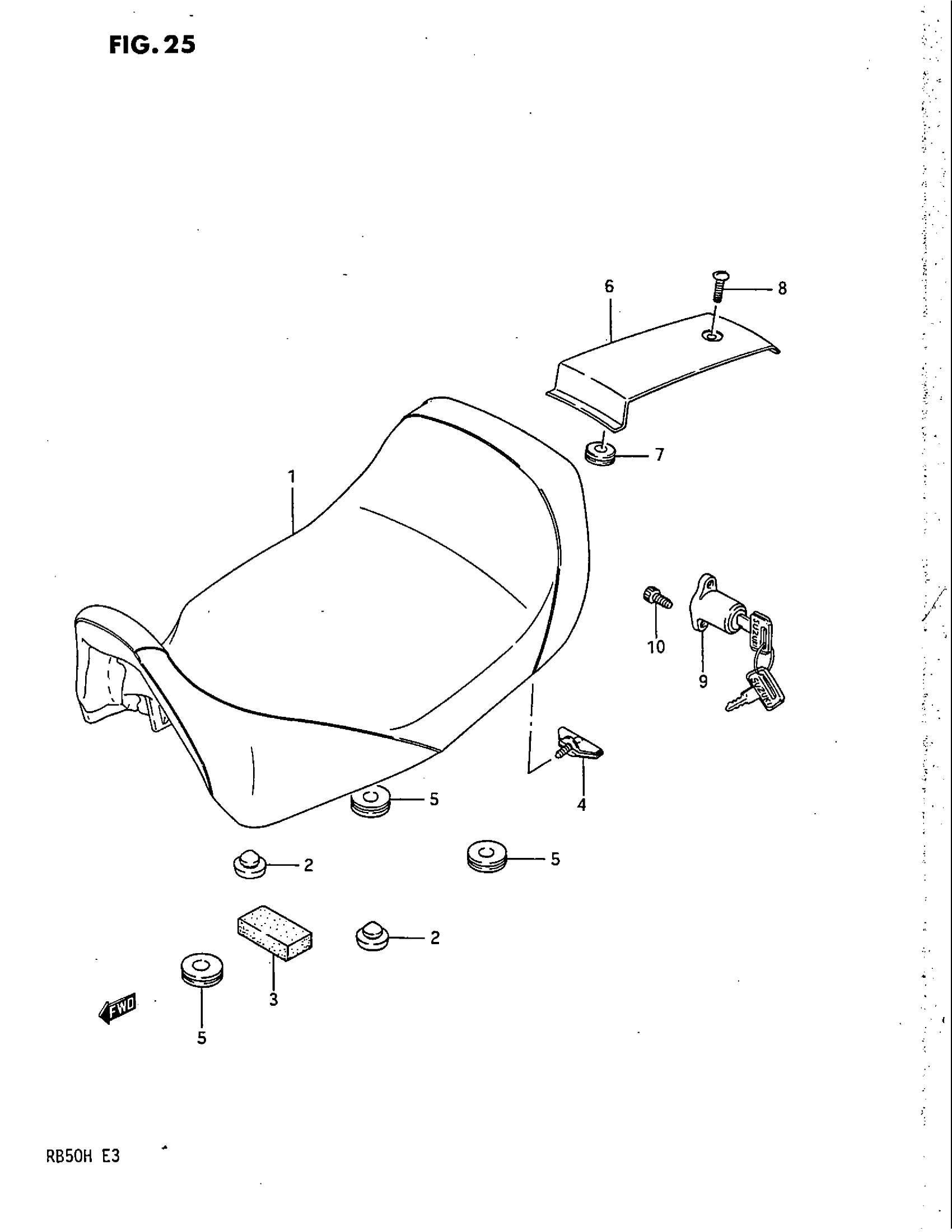

Find the part on the Seat diagram for your 1987 Suzuki GSXR50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Suzuki GSXR50 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 3 This part replaces 45100-28B01-54G.

45100-28B01-48H

1
Out of stock

2

CUSHION

09329-10001

2

$2.56

In stock

3

CUSHION, BATTERY STOPPER

45255-03A00

1
Out of stock

4

BOLT This part replaces 09119-06017.

09119-06017-XC0

1
Out of stock

5

CUSHION This part replaces 09320-09021.

09320-09502

3
Out of stock

6

COVER, SEAT TAIL (BLUE)

45511-28B00-23Z

1
Out of stock

7

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

1
Out of stock

8

SCREW

09125-05060

1
Out of stock

9

LOCK SET, HELME This part replaces 95700-09300-KEY.

95700-49850

1
Out of stock

10

BOLT, NO.3 This part replaces 07110-06105.

07130-0610B

2
Out of stock
