1987 Suzuki GSXR50 Frame Cover Diagram

← All diagrams

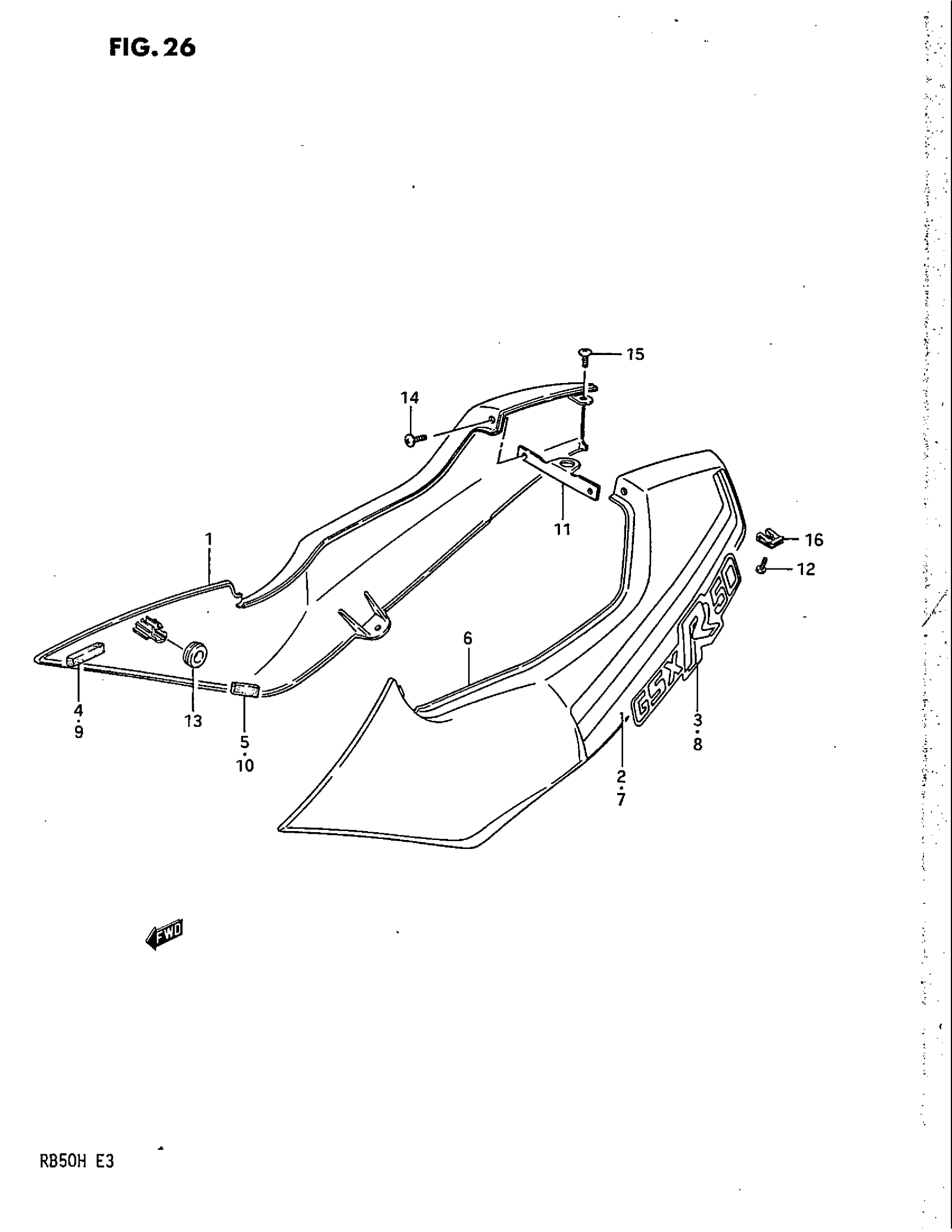

Find the part on the Frame Cover diagram for your 1987 Suzuki GSXR50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Suzuki GSXR50 Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, FRAME, R | Includes Item(s) 2 - 5 This part replaces 47110-28880-14L.

47110-28B00

1
Out of stock

2

TAPE SET, SIDE COVER RH

68130-28B00-8VF

1
Out of stock

3

EMBLEM, SIDE COVER

68131-28B40-66P

1
Out of stock

4

CUSHION, FRONT

47261-28B00

1
Out of stock

5

CUSHION, FRONT This part replaces 47262-28B00.

47261-28B00

1
Out of stock

6

NO DESCRIPTION AVAILABLE | Includes Item(s) 7 - 10 This part replaces 47210-28880-14L.

47210-28B00

1
Out of stock

7

TAPE SET, SIDE COVER LH

68140-28B00-8VF

1
Out of stock

8

EMBLEM, SIDE COVER

68131-28B40-66P

1
Out of stock

9

CUSHION, FRONT

47261-28B00

1
Out of stock

10

CUSHION, FRONT This part replaces 47262-28B00.

47261-28B00

1
Out of stock

11

BRACKET, SIDE COVER

47170-28B00

1
Out of stock

12

.SCREW This part replaces 02142-05124.

02142-0512A

4
Out of stock

13

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

4
Out of stock

14

SCREW, BRACKET This part replaces 03242-05165.

03241-0516A

2
Out of stock

15

SCREW, BRACKET This part replaces 03241-05166.

03241-0516A

2
Out of stock

16

NUT

09148-05020

4
Out of stock
