2009 Suzuki GSX650F Wiring Harness Diagram

← All diagrams

Find the part on the Wiring Harness diagram for your 2009 Suzuki GSX650F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

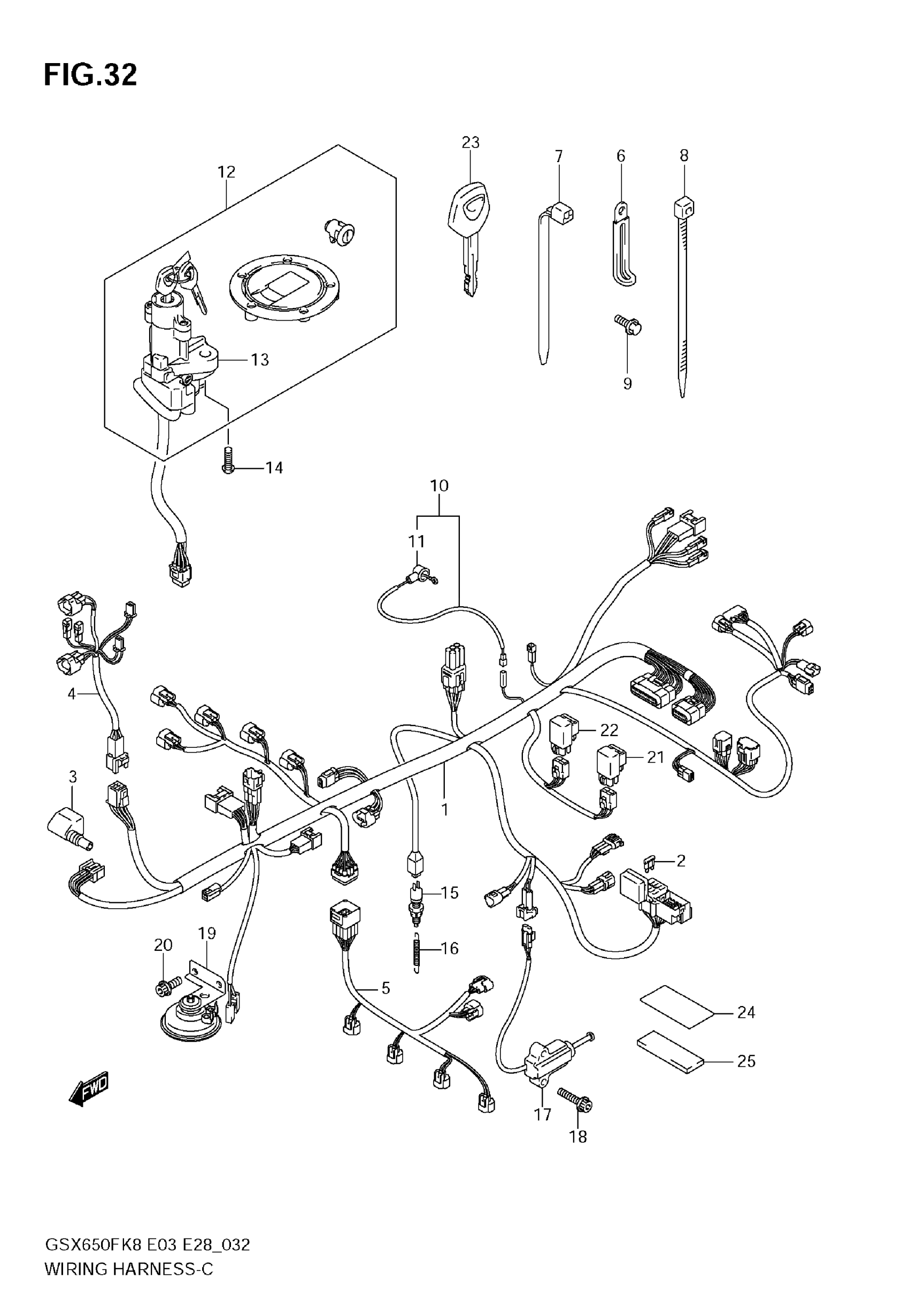

2009 Suzuki GSX650F Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS, WIRING NO.1

36610-17H80

1
Out of stock

1

HARNESS, WIRING NO.1 | E33; Includes Item(s) 2 - 3

36610-17H90

1
Out of stock

2

FUSE (10A)

09481-10501

3
Out of stock

2

FUSE (15A)

09481-15501

3
Out of stock

3

COVER

36618-35F00

1
Out of stock

4

HARNESS,WIRING This part replaces 36620-17H00.

36620-17H01

1
Out of stock

5

WIRE, INJECTOR LEAD

36859-17H00

1
Out of stock

6

CLAMP (L:45)

09404-06429

4
Out of stock

6

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

1
Out of stock

7

CLAMP (L:95)

09407-11401

3
Out of stock

7

CLAMP (L:125)

09407-14403

1
Out of stock

7

CLAMP (L:165)

09407-18402

1
Out of stock

7

CLAMP (L:235)

09407-25401

1
Out of stock

8

CLAMP (L:145)

09407-14407

5
Out of stock

9

BOLT, WIRING HARNESS

01550-0612A

1
Out of stock

10

WIRE, OIL PRESSURE SWITCH | Includes Item(s) 11

36851-18H00

1
Out of stock

11

CAP, OIL PRESSURE

36618-43410

1
Out of stock

12

LOCK SET This part replaces 37000-49820.

37000-49824

1
Out of stock

12

LOCK SET | E33; Includes Item(s) 13 This part replaces 37000-49830.

37000-49834

1
Out of stock

13

LOCK ASSY,STEER This part replaces 37100-49G00.

37100-49G02

1
Out of stock

14

SCREW (8X20)

09139-08016

2
Out of stock

15

SWITCH ASSY, STOP LAMP

37740-24A00

1
Out of stock

16

SPRING

09443-06054

1
Out of stock

17

SWITCH ASSY,SIDE STAND This part replaces 37840-25D00.

37840-25D02

1
Out of stock

18

SCREW

07120-0620B

2
Out of stock

19

HORN ASSY

38500-17H00

1
Out of stock

20

BOLT

07120-0512A

1
Out of stock

21

RELAY ASSY, FUEL PUMP

38740-24X50

1
Out of stock

22

RELAY ASSY, FAN MOTOR

38740-24X50

1
Out of stock

23

KEY, BLANK | OPT

37146-33E00

1
Out of stock

24

PROTECTOR (30X75X0.2)

63131-10F00

1
Out of stock

25

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

1
Out of stock
