2009 Suzuki GSX650F Rear Combination Lamp Diagram

← All diagrams

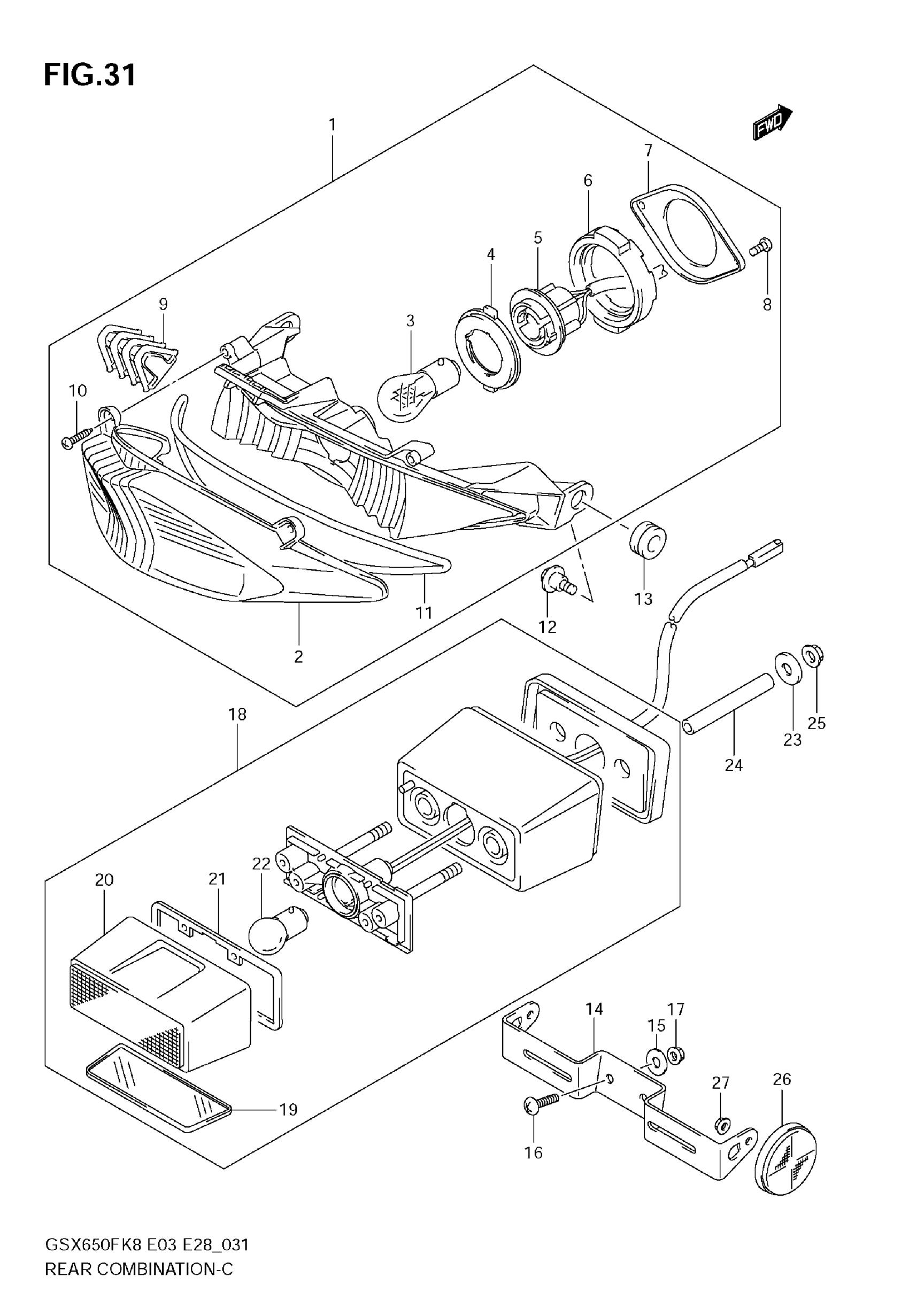

Find the part on the Rear Combination Lamp diagram for your 2009 Suzuki GSX650F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki GSX650F Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, REAR COMB | Includes Item(s) 2 - 11

35710-38G51

1
Out of stock

2

LENS

35712-38G50

1
Out of stock

3

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

1
Out of stock

4

PLATE, NO.1

35716-48B21

1
Out of stock

5

SOCKET & CORD

35718-38G00

1
Out of stock

6

CUSHION

35765-48B21

1
Out of stock

7

PLATE, NO.2

35736-48B21

1
Out of stock

8

SCREW

03211-0412A

2
Out of stock

9

CUSHION

35716-38G00

1
Out of stock

10

SCREW

03211-0416A

2
Out of stock

11

GASKET

35713-38G00

1
Out of stock

12

SCREW, REAR COMB

09139-05080

2
Out of stock

13

CUSHION This part replaces 09320-10054.

09320-10073

2
Out of stock

14

BRACKET, LICENSE PLATE

35927-38G50

1
Out of stock

15

WASHER, BRACKET | 6.5X15X1.5

09160-06077

2
Out of stock

16

SCREW, BRACKET

02142-0616B

2
Out of stock

17

NUT, LICENSE PLATE BRK

08316-1006B

2
Out of stock

18

LAMP ASSY,LICEN | Includes Item(s) 19 - 22 This part replaces 35910-41G50.

35910-41G51

1
Out of stock

19

LENS, LICENSE This part replaces 35912-41G00.

35912-41G01

1
Out of stock

20

COVER

35917-41G00

1
Out of stock

21

GASKET

35913-41G00

1
Out of stock

22

BULB (12V5W) This part replaces 09471-12140.

09471-12058

1
Out of stock

23

WASHER, LICENSE | 6.5X20X1.2

09160-06077

2
Out of stock

24

SPACER, LICENSE | 6.5X9X63.5

09180-06344

2
Out of stock

25

NUT, LICENSE

08316-1006B

2
Out of stock

26

REFLECTOR ASSY, RR SIDE

35970-14A20

2
Out of stock

27

NUT

08316-1005B

2
Out of stock
