Description

Price

1

SPEED & TACHOMETER ASSY

34120-17HB0

Unavailable

1

SPEED & TACHOMETER ASSY | E28

34120-17HA0

Unavailable

2

CASE, UPPER | Includes Item(s) 3

34150-17HA0

Unavailable

3

SWITCH, RUBBER

34124-39G00

$11.18

4

CASE, LOWER

34111-17HA0

Unavailable

5

SCREW (3X16)

34383-35F00

$3.18

6

CUSHION

09320-08028

$2.82

7

SCREW

03541-0512A

$1.41

8

ROTOR,SPEED This part replaces 34981-38G00.

34981-38G01

$17.14

9

SENSOR, SPEED This part replaces 34990-47F00.

34990-35F00

$125.06

10

BOLT, SPEED SENSOR

07120-0512B

$2.71

11

BOLT, SPEED ROTOR

07130-0825B

$3.13

12

CLAMP (L:45)

09404-06429

$1.88

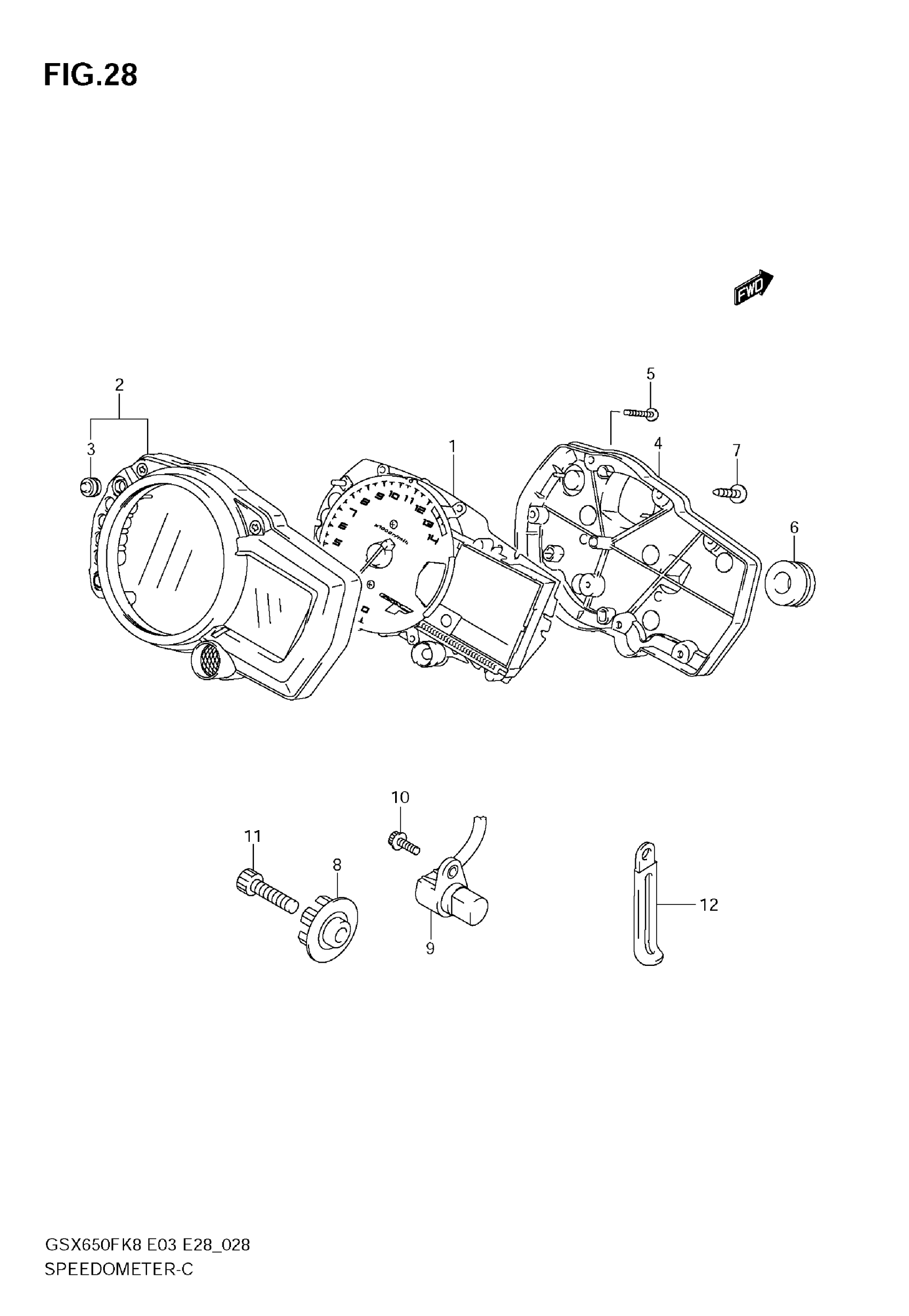

Suzuki GSX650F (2009) SPEEDOMETER Diagram

SPEED & TACHOMETER ASSY

SPEED & TACHOMETER ASSY | E28

CASE, UPPER | Includes Item(s) 3

SWITCH, RUBBER

CASE, LOWER

SCREW (3X16)

CUSHION

SCREW

ROTOR,SPEED This part replaces 34981-38G00.

SENSOR, SPEED This part replaces 34990-47F00.

BOLT, SPEED SENSOR

BOLT, SPEED ROTOR

CLAMP (L:45)
