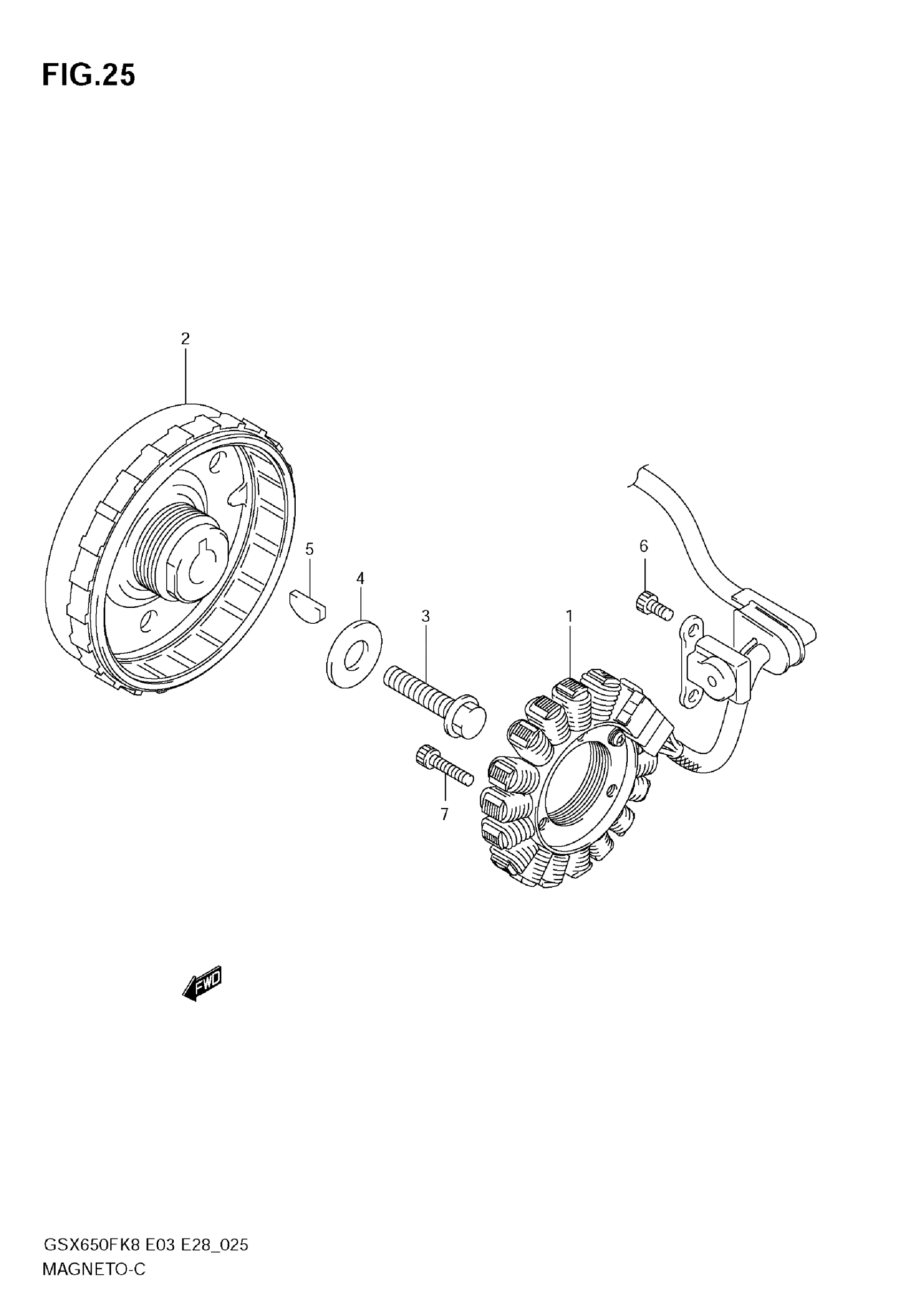

Suzuki GSX650F (2009) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY

32101-18H00

$522.53

2

ROTOR ASSY

32102-18H00

Unavailable

3

BOLT, MAGNETO ROTOR | 12X40

09103-12004

$4.35

4

WASHER (12X30X3.0) | 12X30X3

09160-12036

$4.28

5

KEY, MAGNETO

09420-04008

$3.08

6

BOLT, PULSER COIL

07130-0612A

$2.50

7

BOLT, MAGNETO STATOR

07130-0620A

$2.50
