1997 Suzuki GSX600FV Wiring Harness Diagram

← All diagrams

Find the part on the Wiring Harness diagram for your 1997 Suzuki GSX600FV, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

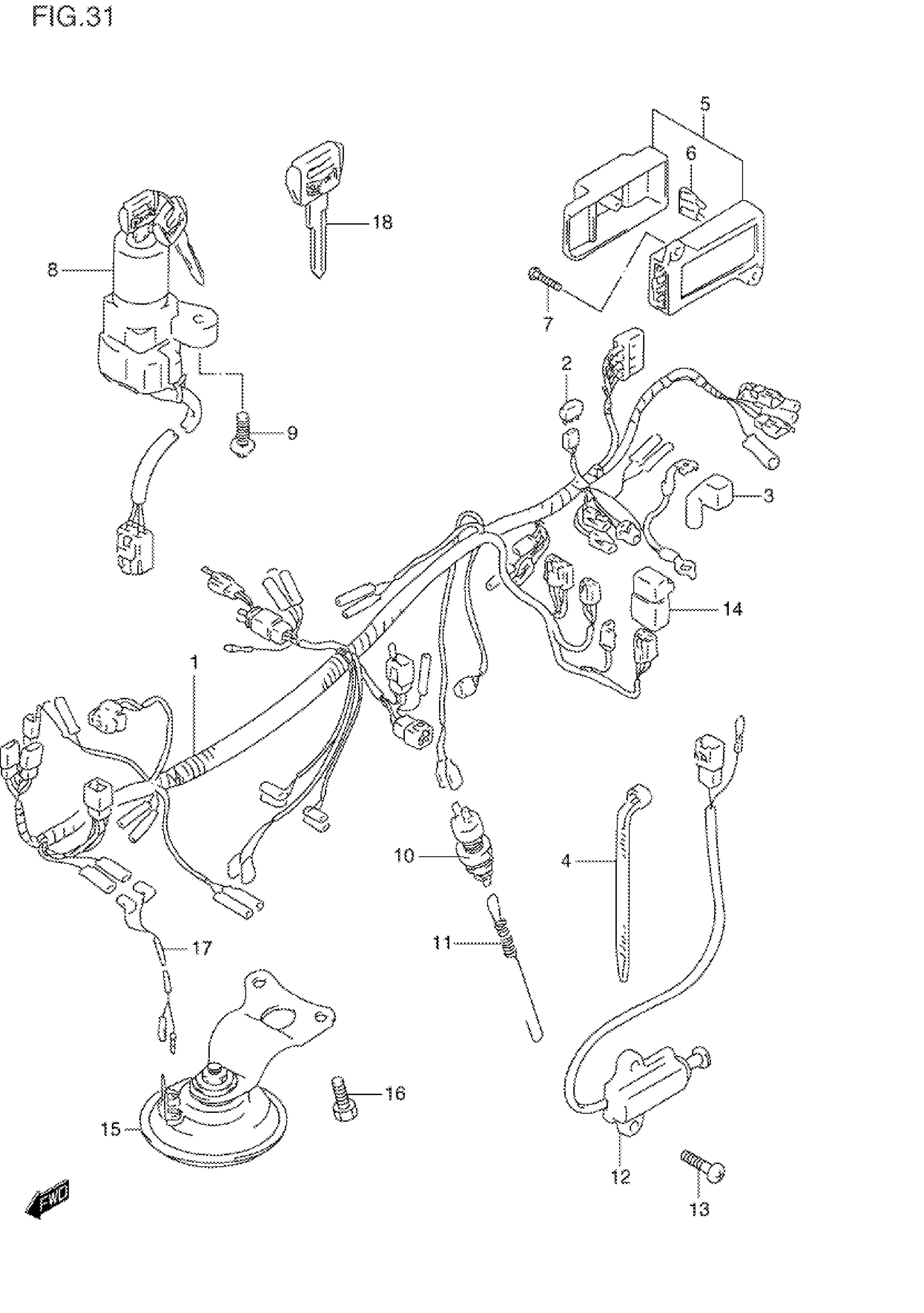

1997 Suzuki GSX600FV Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS, WIRING

36610-19C60

1
Out of stock

1

HARNESS, WIRING | E33; Includes Item(s) 2 - 3

36610-19C70

1
Out of stock

2

.DIODE This part replaces 36611-38A00.

36611-38A10

1
Out of stock

3

CAP, BATTERY PLUS TERMINAL

33624-43500

1
Out of stock

4

CLAMP (L:95)

09407-11401

3
Out of stock

4

CLAMP (L:125)

09407-14403

11
Out of stock

4

CLAMP This part replaces 09407-18403.

09407-18402

4
Out of stock

5

FUSE BOX ASSY | Includes Item(s) 6 - 6

36740-19C00

1
Out of stock

6

FUSE (10A)

09481-10101

4
Out of stock

6

.FUSE (25A) This part replaces 09481-25101.

09481-25103

1
Out of stock

7

SCREW This part replaces 02142-06203.

02142-0620A

2
Out of stock

8

LOCK ASSY, STEERING This part replaces 37100-26D02.

37100-26D03

1
Out of stock

9

BOLT

09139-06026

2
Out of stock

10

SWITCH ASSY, STOP LAMP

37740-24A00

1
Out of stock

11

SPRING

09443-06005

1
Out of stock

12

SWITCH ASSY,SID This part replaces 37840-44X50.

37840-44X52

1
Out of stock

13

BOLT This part replaces 01550-06203.

01550-0620A

2
Out of stock

14

RELAY ASSY, SIDE STAND

38740-24X50

1
Out of stock

15

HORN ASSY

38500-19C01

1
Out of stock

16

BOLT This part replaces 01550-06163.

01550-0616A

2
Out of stock

17

WIRE, CLUTCH SWITCH

36852-19D00

1
Out of stock

18

KEY, BLANK | OPT

37146-26D10

1
Out of stock
