1997 Suzuki GSX600FV Signal Generator Diagram

← All diagrams

Find the part on the Signal Generator diagram for your 1997 Suzuki GSX600FV, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

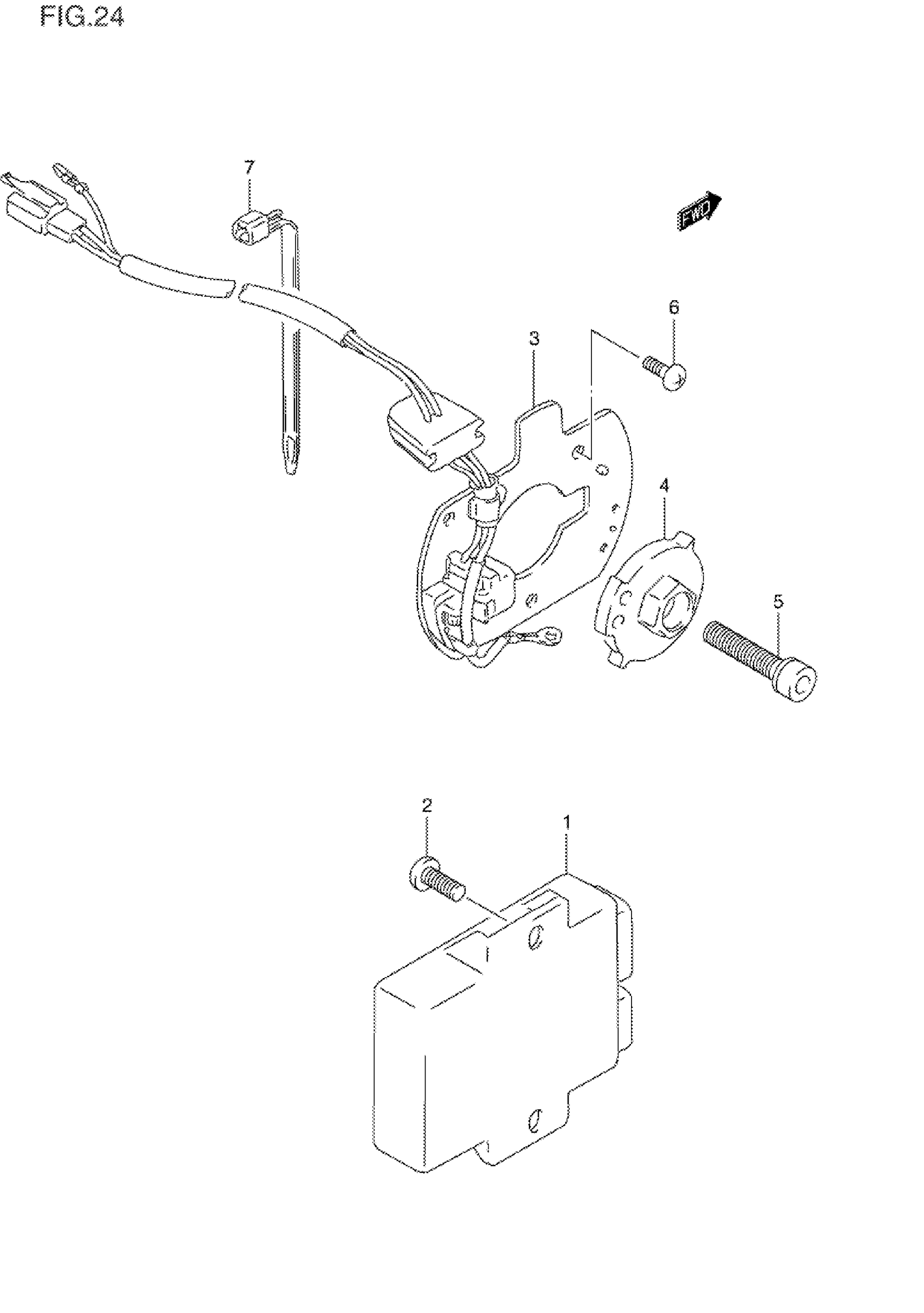

1997 Suzuki GSX600FV Signal Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

IGNITER UNIT

32900-19C40

1
Out of stock

1

IGNITER UNIT | E33

32900-19C50

1
Out of stock

2

SCREW This part replaces 02142-06123.

02142-0612A

2
Out of stock

3

SIGNAL GENERATOR ASSY

33110-17C00

1
Out of stock

4

ROTOR, SIGNAL

33120-19C20

1
Out of stock

5

BOLT, STEERING DAMPER This part replaces 07130-08303.

07130-0830A

1
Out of stock

6

SCREW, THROTTLE This part replaces 02112-05103.

02112-0510A

3
Out of stock

7

CLAMP (L:95)

09407-11401

1
Out of stock
