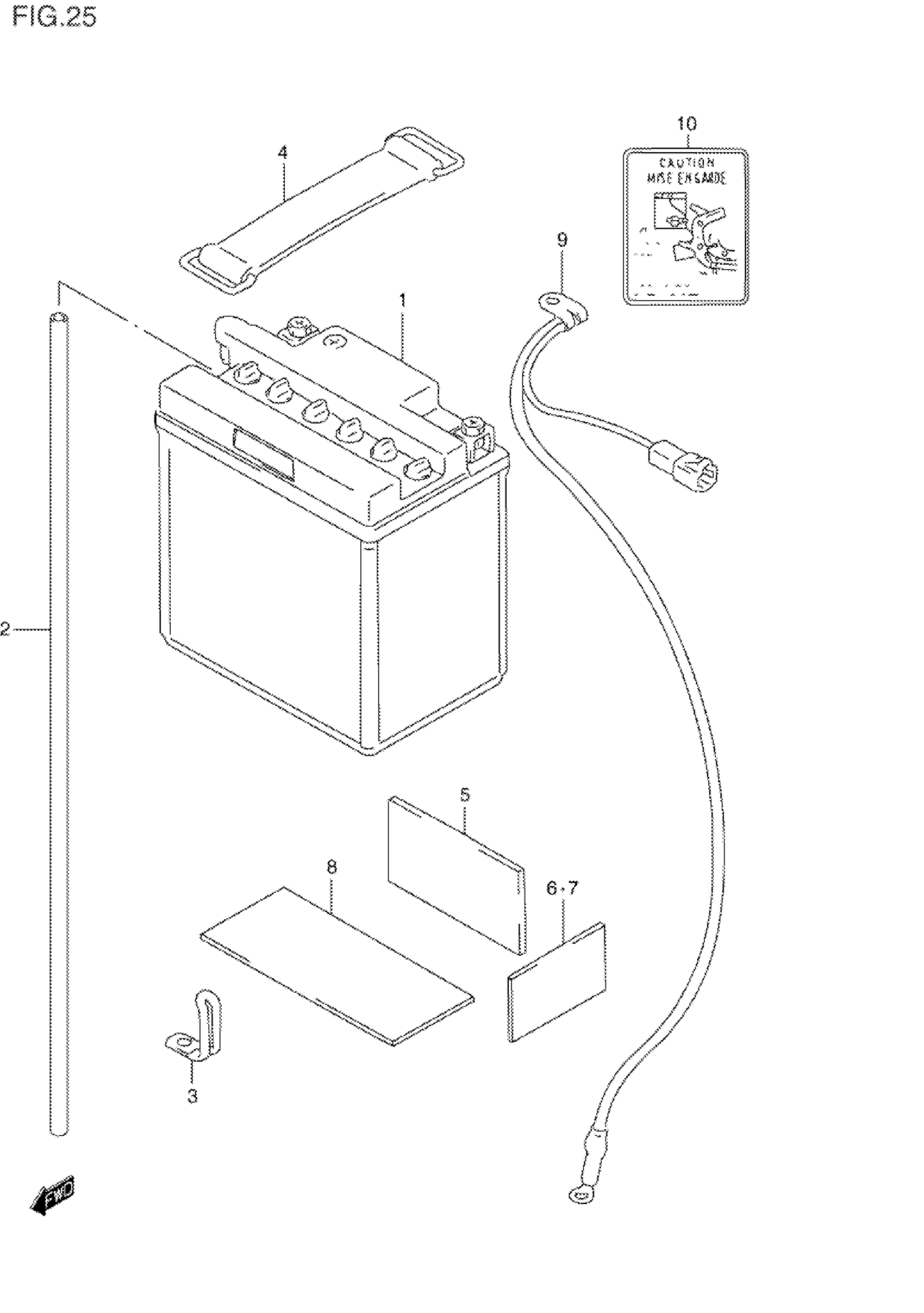

Suzuki GSX600FV (1997) BATTERY Diagram

#

Description
Price

1

BATTERY (12V,14AH) This part replaces 33610-04A40.

33610-04A20

$116.58

1

BATTERY (12V,11AH) | E28

33610-04A20

$116.58

2

HOSE,BATTERY EX | L:780->600 This part replaces 33680-16A10.

33680-16A11

$7.65

3

CLAMP This part replaces 09404-06206.

09404-06039

$1.73

4

BAND, BATTERY

09462-00043

$3.71

5

PROTECTOR | CUT AS REQUIRED PROFILE(20X90)

33651-37000

$4.09

6

PROTECTOR (50X50X5)

33652-20C00

$2.80

7

PROTECTOR | CUT AS REQUIRED PROFILE(30X50)

33651-37000

$4.09

8

CUSHION | CUT AS REQUIRED PROFILE(50X115)

33651-37000

$4.09

9

LEAD WIRE, BATTERY (-)

33860-44B01

Unavailable

10

PLATE, BATTERY CAUTION

33690-19C10

Unavailable
