1996 Suzuki GSX600FT OIL PAN Diagram

← All diagrams

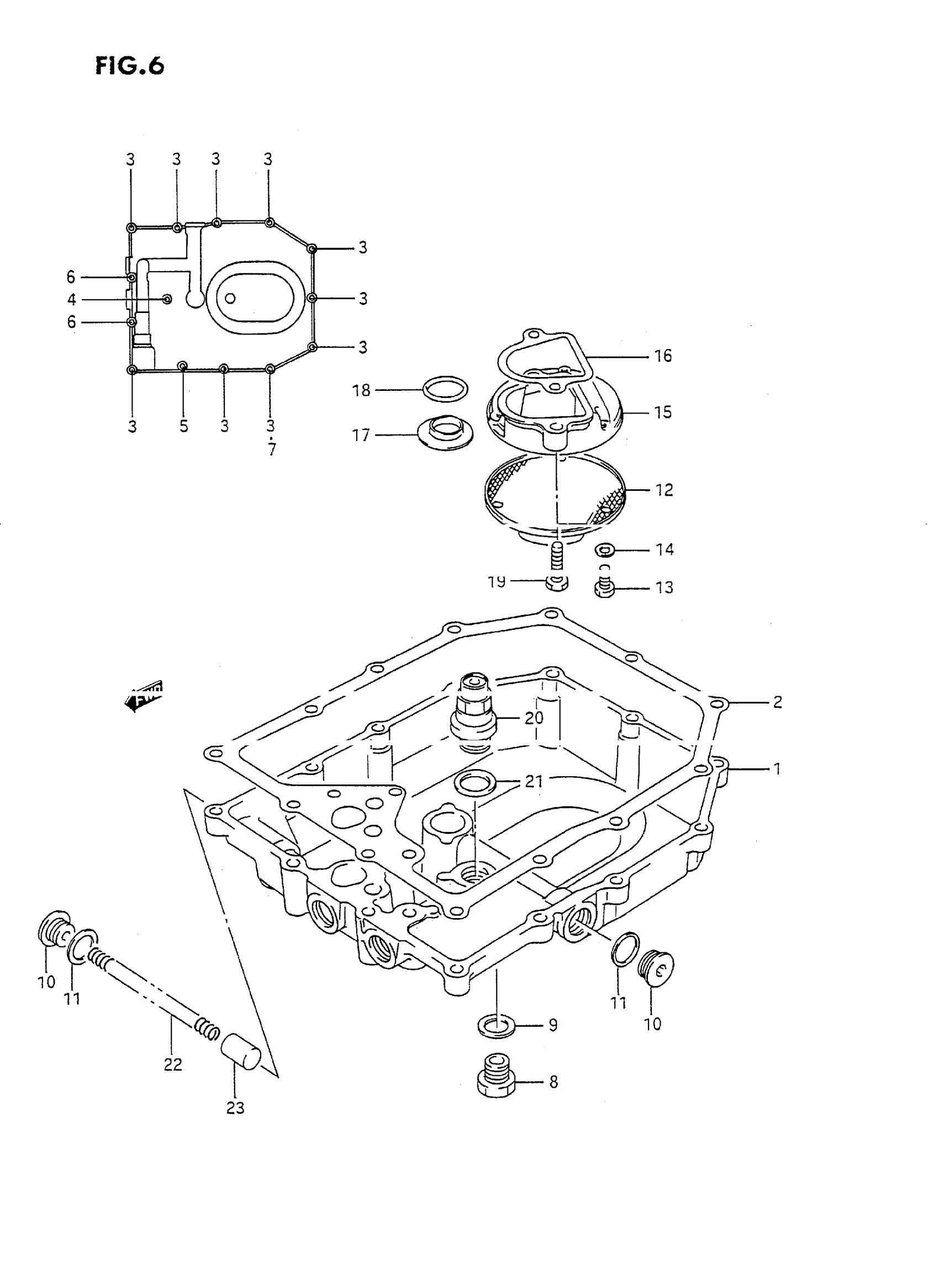

Find the part on the OIL PAN diagram for your 1996 Suzuki GSX600FT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Suzuki GSX600FT OIL PAN Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PAN, OIL

11511-19C00

1
Out of stock

2

O RING, OIL PAN | MODEL J/K/L This part replaces 11489-27A00.

11489-27A21

1
Out of stock

2

O RING, OIL PAN | MODEL M/N This part replaces 11489-27A10.

11489-27A21

1
Out of stock

2

O RING, OIL PAN | MODEL P/R/S/T This part replaces 11489-27A20.

11489-27A21

1
Out of stock

3

BOLT | ~E.NO.138650 This part replaces 07110-06255.

07130-0625B

10
Out of stock

3

BOLT | E.NO.138651~ This part replaces 07130-06258.

07130-06257

10
Out of stock

3

BOLT | MODEL R/S/T This part replaces 07130-06253.

07130-0625B

10
Out of stock

4

BOLT | ~E.NO.138650 This part replaces 07110-06355.

07130-0635B

1
Out of stock

4

NO DESCRIPTION AVAILABLE | E.NO.138651~ This part replaces 07130-06358.

07130-06357

1
Out of stock

4

BOLT | MODEL R/S/T This part replaces 07130-06353.

07130-0635B

1
Out of stock

5

BOLT, STATOR | ~E.NO.138650 This part replaces 07110-06405.

07130-0640B

1
Out of stock

5

BOLT | E.NO.138651~ This part replaces 07130-06408.

07130-06407

1
Out of stock

5

BOLT, STATOR | MODEL R/S/T This part replaces 07130-06403.

07130-0640B

1
Out of stock

6

BOLT | ~E.NO.138650 This part replaces 07110-06455.

07130-0645B

2
Out of stock

6

BOLT | E.NO.138651~ This part replaces 07130-06458.

07130-0645B

2
Out of stock

6

BOLT | MODEL R/S/T This part replaces 07130-06453.

07130-0645B

2
Out of stock

7

GASKET

09168-06024

1
Out of stock

8

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

1
Out of stock

9

GASKET

09168-14002

1
Out of stock

10

PLUG, OIL DRAIN This part replaces 09248-16010.

09248-16012

2
Out of stock

11

GASKET

09168-16002

2
Out of stock

12

STRAINER, ENGINE OIL

16520-06B01

1
Out of stock

13

BOLT | MODEL J/K/L/M/N/P This part replaces 01107-06127.

01500-06127

3
Out of stock

13

BOLT | MODEL R/S/T This part replaces 01570-06123.

01570-0612A

3
Out of stock

15

PROTECTOR, STRAINER

16525-48B01

1
Out of stock

16

GASKET, OIL STR PROTECTOR | MODEL J/K/L This part replaces 16528-27A02.

16528-27A21

1
Out of stock

16

GASKET, OIL STR PROTECTOR | MODEL M/N This part replaces 16528-27A10.

16528-27A21

1
Out of stock

16

GASKET, OIL STR PROTECTOR | MODEL P/R/S/T This part replaces 16528-27A20.

16528-27A21

1
Out of stock

17

GASKET, OIL OUTLET

16529-27A01

1
Out of stock

18

O RING

09280-18009

1
Out of stock

19

BOLT | MODEL J/K/L/M/N/P This part replaces 01517-06257.

01550-06257

2
Out of stock

19

BOLT | MODEL R/S/T This part replaces 01550-06253.

01550-0625A

2
Out of stock

20

REGULATOR, ENGINE OIL

16440-27A01

1
Out of stock

21

WASHER

09168-16002

1
Out of stock

22

SPRING

09440-09023

1
Out of stock

23

PLUNGER, OIL CONTROL

16442-34301

1
Out of stock
