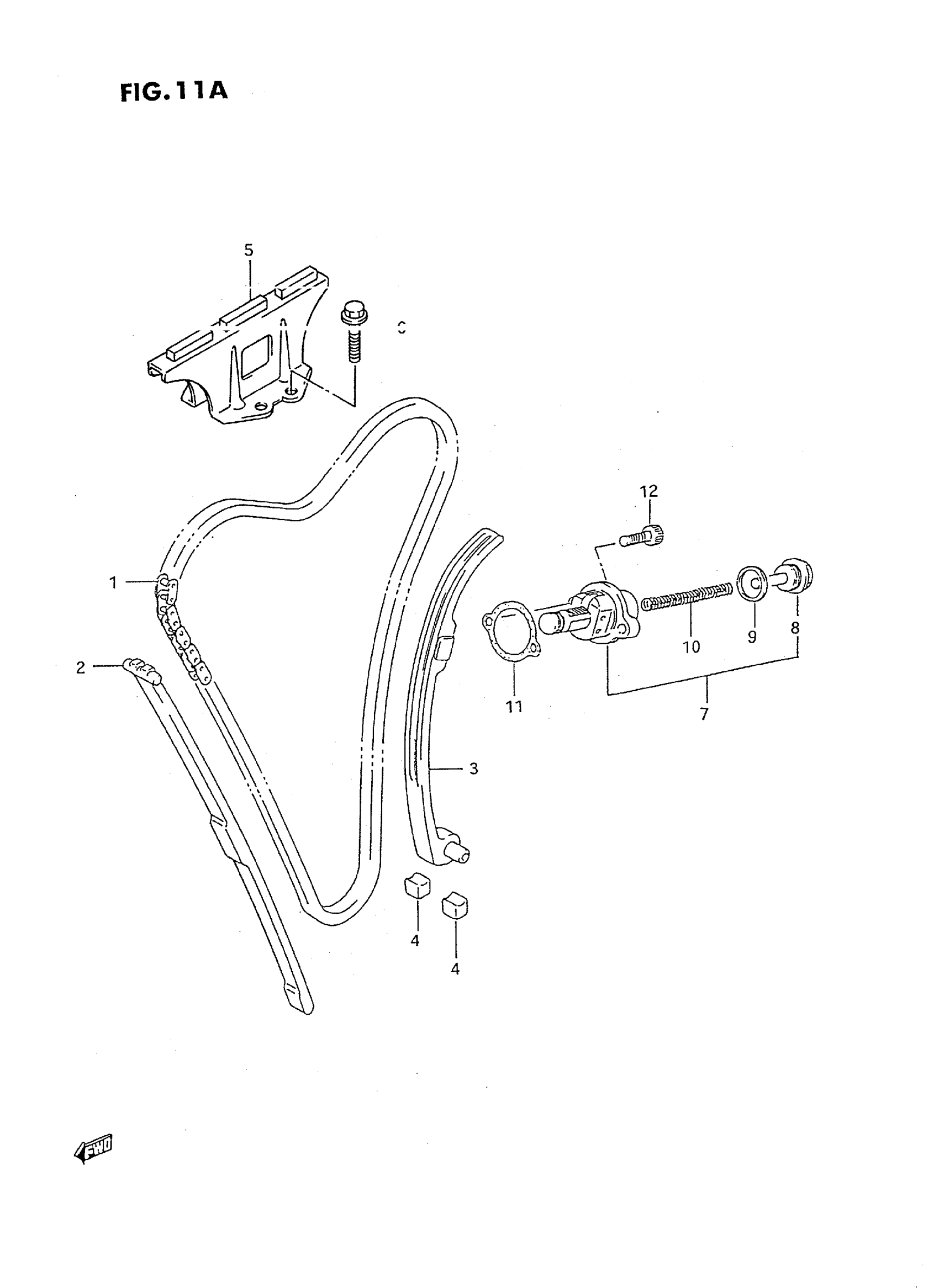

Find the part on the Cam Chain diagram for your 1996 Suzuki GSX600FT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Suzuki GSX600FT Cam Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$196.78

In stock

2

GUIDE, CAM CHAIN NO.1

12771-26E00

1
Out of stock

3

1

$85.83

In stock

4

CUSHION

12814-34200

2

$7.42

In stock

5

GUIDE, CAM CHAIN NO.2

12782-26E00

1
Out of stock

6

BOLT This part replaces 01550-06163.

01550-0616A

4
Out of stock

7

1

$176.20

In stock

8

PLUG

12834-27A00

1
Out of stock

9

GASKET

12832-27A00

1

$9.17

In stock

10

SPRING

12833-26D10

1

$7.77

In stock

11

GASKET, ADJUDTER

12837-27A10

1

$5.11

In stock

12

BOLT This part replaces 07130-06253.

07130-0625B

2
Out of stock
