1996 Suzuki GSX600FT Crankcase Cover Diagram

← All diagrams

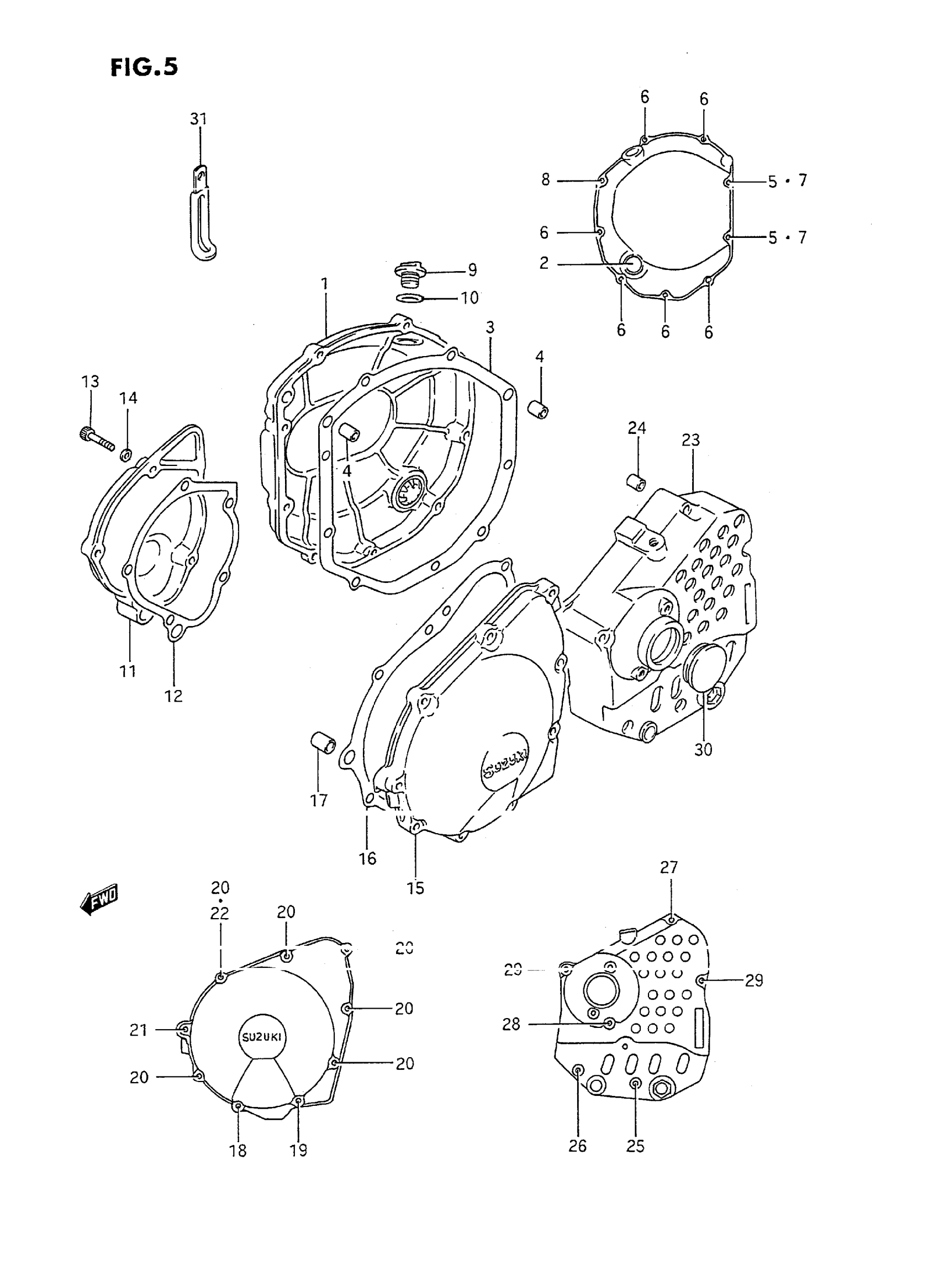

Find the part on the Crankcase Cover diagram for your 1996 Suzuki GSX600FT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Suzuki GSX600FT Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH (BLACK) | MODEL J This part replaces 11340-27A00.

11340-20C00

1
Out of stock

1

COVER, CLUTCH (BLACK) | MODEL K/L/M/N/P/R/S/T; Includes Item(s) 2

11340-20C00

1
Out of stock

2

LENS, OIL LEVEL

11971-33210

1
Out of stock

3

GASKET, CLUTCH COVER | MODEL J/K/L/M/N This part replaces 11482-27A10.

11482-27A20

1
Out of stock

3

GASKET, CLUTCH COVER | MODEL P/R/S/T

11482-27A20

1
Out of stock

4

PIN

04211-09189

2

$1.77

In stock

5

GASKET

09168-06024

2
Out of stock

6

BOLT | MODEL J/K/L/M/N/P This part replaces 07110-06255.

07130-0625B

6
Out of stock

6

BOLT | MODEL R/S/T This part replaces 07130-06253.

07130-0625B

6
Out of stock

7

BOLT | MODEL J/K/L/M/N/P This part replaces 07110-06305.

07130-0630B

2
Out of stock

7

BOLT | MODEL R/S/T This part replaces 07130-06303.

07130-0630B

2
Out of stock

8

BOLT | MODEL J/K/L/M/N/P This part replaces 07110-06355.

07130-0635B

1
Out of stock

8

BOLT | MODEL R/S/T This part replaces 07130-06353.

07130-0635B

1
Out of stock

9

.PLUG | MODEL J/K This part replaces 09259-20012.

09259-20008-XC0

1
Out of stock

9

.PLUG | MODEL L/M/N/P/R/S/T This part replaces 09259-20015.

09259-20008-XC0

1
Out of stock

10

O RING

09280-17003

1
Out of stock

11

COVER,SIGNAL GE | MODEL J This part replaces 11381-27A02.

11381-27A03

1
Out of stock

11

COVER,SIGNAL GE | MODEL K/L/M/N/P/R/S/T<-11381-48B00 This part replaces 11381-48B01.

11381-48B02

1
Out of stock

12

GASKET | MODEL J/K/L This part replaces 11491-27A00.

11491-27A30

1
Out of stock

12

GASKET | MODEL M/N This part replaces 11491-27A10.

11491-27A30

1
Out of stock

12

GASKET, SIGNAL GENERATOR COVE | MODEL P/R/S/T

11491-27A30

1
Out of stock

13

BOLT,6X23 | MODEL J/K/L/M/N/P This part replaces 09106-06059.

09106-06059-XC0

5
Out of stock

13

BOLT (6X23) | MODEL R/S/T

09106-06082

5
Out of stock

14

GASKET

09168-06024

1
Out of stock

15

COVER, STARTER GEAR (GRAY) | MODEL J

11351-17C00

1
Out of stock

15

COVER, STARTER GEAR (BLACK) | MODEL K/L/M/N/P/R/S/T

11351-20C00

1
Out of stock

16

GASKET, GEAR COVER | MODEL J/K/L This part replaces 11483-27A01.

11483-27A20

1
Out of stock

16

GASKET, GEAR COVER | MODEL M/N This part replaces 11483-27A10.

11483-27A20

1
Out of stock

16

GASKET, STARTER GEAR COVER | MODEL P/R/S/T

11483-27A20

1
Out of stock

17

PIN (11X20) This part replaces 09206-11005.

09206-11017

1
Out of stock

18

BOLT | MODEL J/K/L/M/N/P This part replaces 07110-06165.

07130-0616B

1
Out of stock

18

BOLT | MODEL R/S/T This part replaces 07130-06163.

07130-0616B

1
Out of stock

19

BOLT, FRONT BRG HOUSING | MODEL J/K/L/M/N/P This part replaces 07110-06205.

07130-0620B

1
Out of stock

19

BOLT, FRONT BRG HOUSING | MODEL R/S/T This part replaces 07130-06203.

07130-0620B

1
Out of stock

20

BOLT | MODEL J/K/L/M/N/P This part replaces 07110-06255.

07130-0625B

6
Out of stock

20

BOLT | MODEL R/S/T This part replaces 07130-06253.

07130-0625B

6
Out of stock

21

BOLT, STATOR | MODEL J/K/L/M/N/P This part replaces 07110-06405.

07130-0640B

1
Out of stock

21

BOLT, STATOR | MODEL R/S/T This part replaces 07130-06403.

07130-0640B

1
Out of stock

22

GASKET

09168-06024

1
Out of stock

23

COVER,ENGINE SP | MODEL J This part replaces 11361-19C03.

11361-19C04

1
Out of stock

23

COVER, ENGINE SPROCKET | MODEL K/L/M/N/P/R/S/T This part replaces 11361-20C01.

11361-20C02

1
Out of stock

24

PIN

04211-09129

2
Out of stock

25

BOLT, STATOR | MODEL J/K/L/M/N/P This part replaces 07110-06405.

07130-0640B

1
Out of stock

25

BOLT, STATOR | MODEL R/S/T This part replaces 07130-06403.

07130-0640B

1
Out of stock

26

BOLT | MODEL J/K/L/M/N/P This part replaces 07110-06305.

07130-0630B

1
Out of stock

26

BOLT | MODEL R/S/T This part replaces 07130-06303.

07130-0630B

1
Out of stock

27

BOLT | MODEL J/K/L/M/N/P This part replaces 07110-06505.

07130-0650B

1
Out of stock

27

BOLT | MODEL R/S/T This part replaces 07130-06503.

07130-0650B

1
Out of stock

28

BOLT | MODEL J/K/L/M/N/P This part replaces 07110-06655.

07130-0665B

1
Out of stock

28

BOLT | MODEL R/S/T This part replaces 07130-06653.

07130-0665B

1
Out of stock

29

2

$3.79

In stock

30

CAP, CLUTCH RELEASE

09250-30003

1
Out of stock

31

CLAMP(L:80) | MODEL J/K This part replaces 09404-06426.

09404-06036

1
Out of stock
← Crankcase Crankshaft →
