1996 Suzuki GSX600FT Front Damper Diagram

← All diagrams

Find the part on the Front Damper diagram for your 1996 Suzuki GSX600FT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

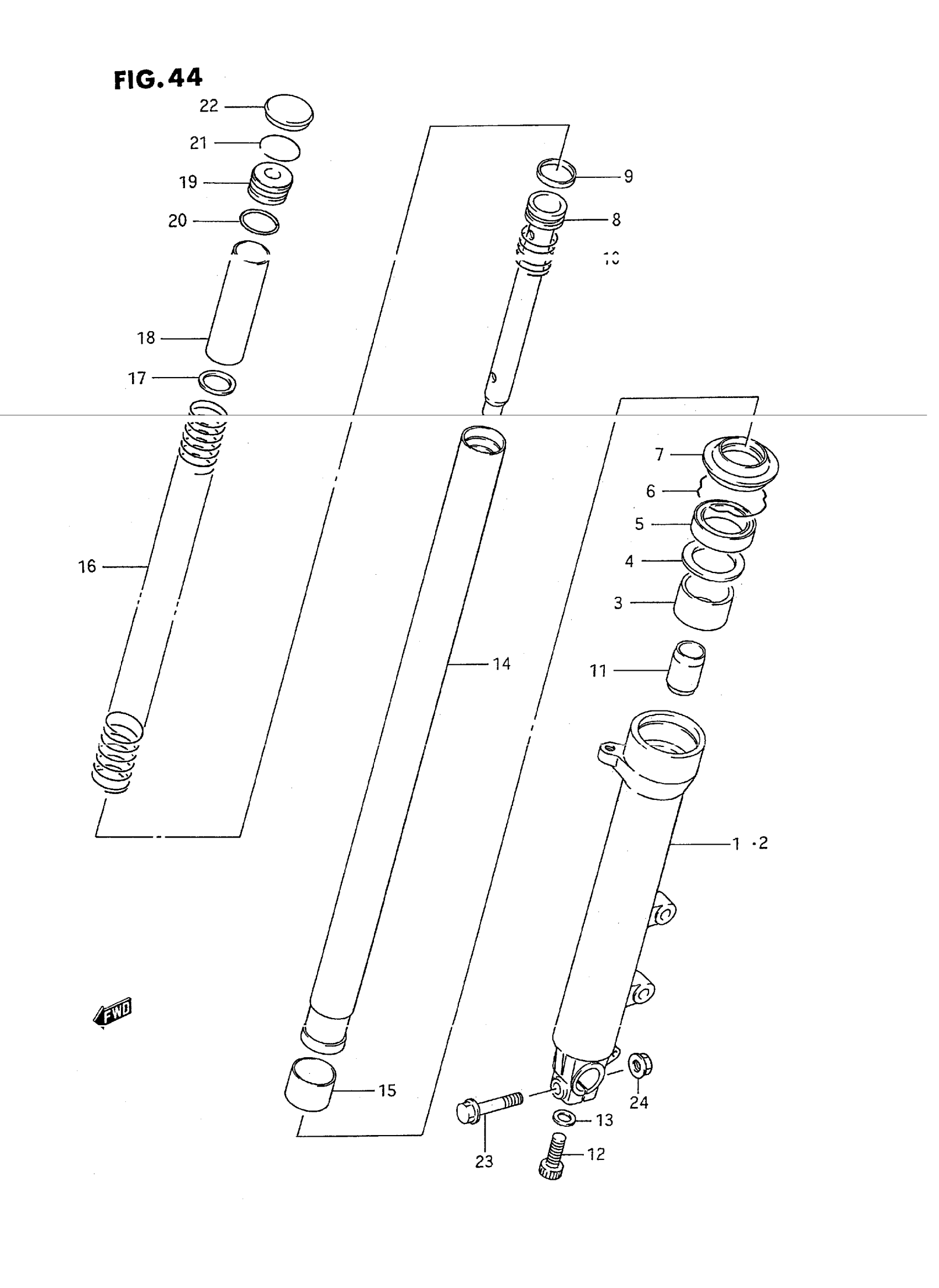

1996 Suzuki GSX600FT Front Damper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

NO DESCRIPTION AVAILABLE This part replaces 51103-19C00.

51103-19C01

1
Out of stock

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 24 This part replaces 51104-19C00.

51104-19C01

1
Out of stock

1

NO DESCRIPTION AVAILABLE This part replaces 51130-19C00.

51130-19C01

1
Out of stock

2

NO DESCRIPTION AVAILABLE This part replaces 51140-19C00.

51140-19C01

1
Out of stock

3

BUSH

51152-48B31

2
Out of stock

4

SPACER

51168-38B00

2
Out of stock

5

OIL SEAL This part replaces 51153-38B00.

51153-08D00

2
Out of stock

6

RING, STOPPER

51556-38B00

2
Out of stock

7

.DUST SEAL This part replaces 51571-38B00.

51173-15D00

2
Out of stock

8

PIPE, SEAT

51146-19C00

2
Out of stock

9

RING, PISTON

51196-19C00

2
Out of stock

10

SPRING, REBOUND

51177-48B31

2
Out of stock

11

PIECE, OIL LOCK

51195-48B31

2
Out of stock

12

BOLT

51147-48130

2
Out of stock

13

GASKET

51148-36011

2
Out of stock

14

TUBE, INNER

51110-19C00

2
Out of stock

15

BUSH, SLIDE

51121-48B31

2
Out of stock

16

SPRING

51171-19C00

2
Out of stock

17

JOINT, SPRING

51192-19C00

2
Out of stock

18

COLLAR, SPRING

51176-19C00

2
Out of stock

19

SEAT, SPRING

51172-19C00

2
Out of stock

20

O RING

51117-19C00

2
Out of stock

21

RING, STOPPER

51169-48B31

2
Out of stock

22

CAP

51189-19C00

2
Out of stock

23

BOLT This part replaces 01517-08504.

01550-0850B

1
Out of stock

24

NUT This part replaces 08316-16085.

08316-1008B

1
Out of stock

25

REFER TO FIG.44A(J-3) FOR

SPECIAL NOTE

—
Out of stock
