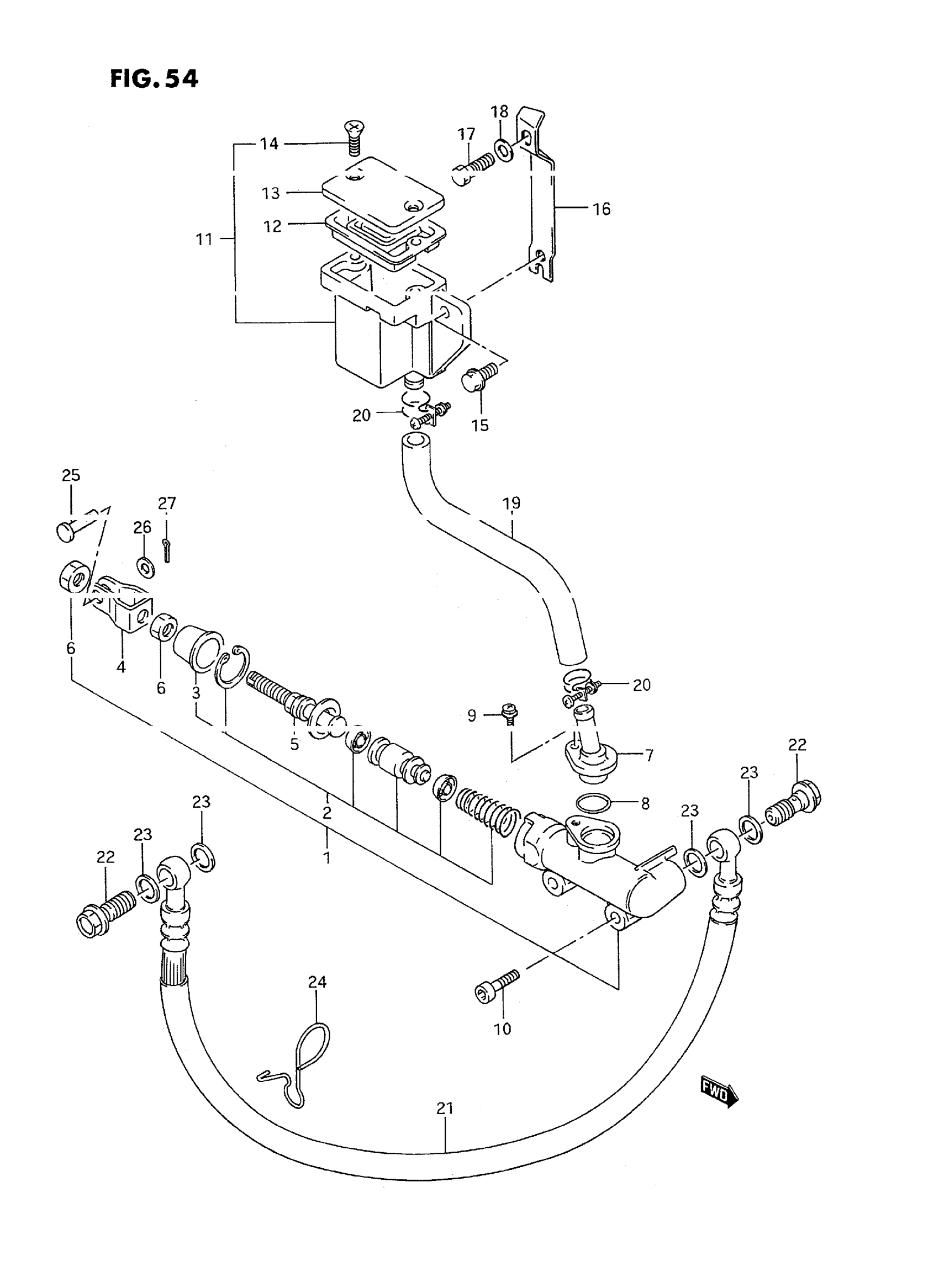

Suzuki GSX600FT (1996) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 9

69600-19C00

Unavailable

2

.PISTON/CUP SET This part replaces 69600-04820.

69600-04821

$29.55

3

.BOOT

69691-00A00

$5.00

4

YOKE

69692-19A00

$19.03

5

ROD, PUSH

69670-19C00

Unavailable

6

NUT | ->69693-05A00 This part replaces 69693-24A00.

69693-05A00

$1.86

6

NUT

69693-05A00

$1.86

7

CONNECTOR

69672-20A00

Unavailable

8

O RING

69686-34200

$2.80

9

.SCREW This part replaces 02112-74123.

02112-7412A

$2.67

10

BOLT | MODEL J/K/L/M/N/P This part replaces 07110-06167.

07130-06167

$4.03

10

BOLT | MODEL R/S/T This part replaces 07130-06163.

07130-0616B

$2.38

11

TANK ASSY, REAR RESERVOIR | MODEL J/K/L/M/N This part replaces 69740-24A00.

69740-24A01

Unavailable

11

TANK ASSY, REAR RESERVOIR | MODEL P/R/S/T; Includes Item(s) 12 - 14

69740-24A01

Unavailable

12

DIAPHRAGM

59667-04700

$8.95

13

CAP | MODEL J/K This part replaces 69669-24A00.

69669-24A01

$14.23

13

CAP | MODEL L/M/N

69669-24A01

$14.23

13

CAP | MODEL P/R/S/T

59669-05D00

$15.78

14

SCREW

69689-04A00

$2.15

15

BOLT | MODEL J/K/L/M/N/P This part replaces 01517-06167.

01550-06167

$2.22

15

BOLT, CLAMP | MODEL R/S/T This part replaces 01550-06123.

01550-0612A

$1.97

16

PLATE, TANK

69750-19C00

Unavailable

17

BOLT | MODEL J/K This part replaces 01107-06166.

01500-0616A

$1.77

17

BOLT | MODEL L/M/N/P This part replaces 01134-06166.

01570-0616A

$2.24

17

BOLT | MODEL R/S/T This part replaces 01570-06163.

01570-0616A

$2.24

18

LOCK WASHER | MODEL J/K This part replaces 08321-21066.

08321-0106A

$1.83

19

HOSE, RESERVOIR

69731-19C00

Unavailable

20

CLAMP | MODEL J/K/L/M/N/P/R/S This part replaces 09400-16302.

09400-16304

$2.84

20

CLAMP | MODEL T This part replaces 09401-13413.

09401-13417

$2.24

21

HOSE, REAR BRAKE | MODEL J/K This part replaces 69480-19C00.

69480-19C20

Unavailable

21

HOSE, REAR BRAKE | MODEL L/M/N This part replaces 69480-19C10.

69480-19C20

Unavailable

21

HOSE, REAR BRAKE | MODEL P/R/S/T

69480-19C20

Unavailable

22

BOLT (10X1.00X24) | MODEL J/K/L/M/N/P

09360-10017

$3.08

22

UNION | MODEL R/S/T This part replaces 09360-10039.

09360-10061

$5.89

23

WASHER (10X15X1.5)

09161-10009

$1.83

24

GUIDE, BRAKE HOSE

69243-19C00

Unavailable

25

PIN (6X18.2) This part replaces 09200-06037.

09200-06068

$3.71

26

WASHER | MODEL J/K/L/M/N/P This part replaces 08322-21067.

08322-01067

$1.86

26

.WASHER | MODEL R/S/T This part replaces 08322-01063.

08322-0106B

$2.24

27

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.22
