1996 Suzuki GSX600FT Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1996 Suzuki GSX600FT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

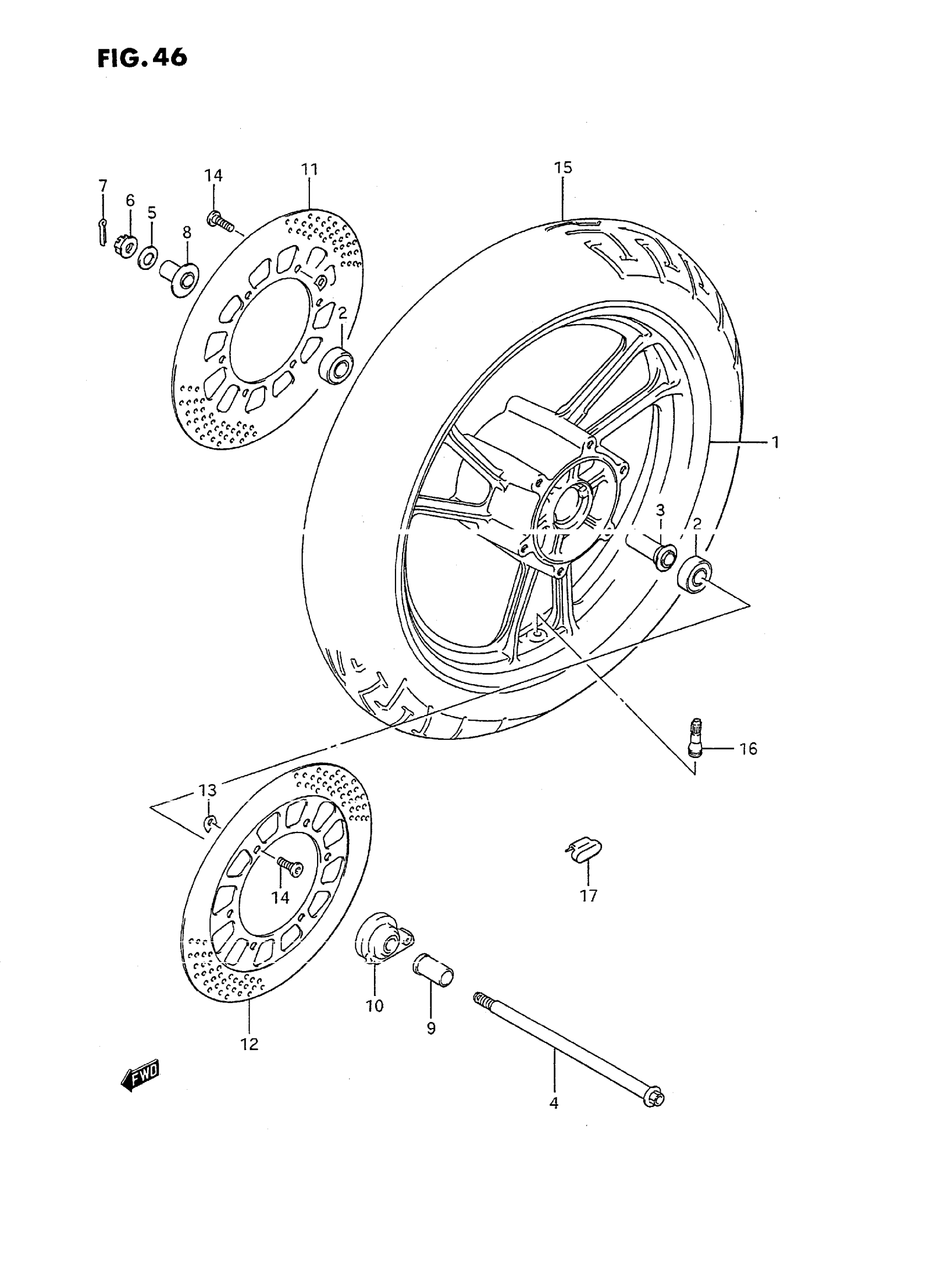

1996 Suzuki GSX600FT Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL, FRONT (2.50X17) WHITE

54111-30B03-28W

1
Out of stock

2

BEARING This part replaces 08123-63027.

08123-6302B

2
Out of stock

3

SPACER

54730-18400

1
Out of stock

4

AXLE, FRONT

54711-19C00

1
Out of stock

5

WASHER This part replaces 08322-21128.

08322-01127

1
Out of stock

6

NUT

09159-12027

1
Out of stock

7

PIN This part replaces 04111-30308.

04111-3030A

1
Out of stock

8

SPACER, BEARING RH

54740-33410

1
Out of stock

9

SPACER, AXLE LH

54741-19C00

1
Out of stock

10

BOX ASSY,SPEEDO This part replaces 54600-30B02.

54600-30B0V

1
Out of stock

11

DISC, FRONT BRAKE RH (GOLD)

59211-19C00-0AV

1
Out of stock

12

DISC, FRONT BRAKE LH (GOLD)

59221-19C00-0AV

1
Out of stock

13

SHIM

59214-19C00

12
Out of stock

14

BOLT This part replaces 09106-08078.

09106-08049

12
Out of stock

15

TIRE, T/L FRONT (110/80 V17) (DUNLOP) | DUNLOP This part replaces 55100-19C00.

55110-19C10

1
Out of stock

16

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

1
Out of stock

17

BALANCER (10G)

55411-00A00

1
Out of stock

17

BALANCER, WHEEL NO.2 This part replaces 55412-00A00.

55412-17G00

1
Out of stock

17

BALANCER (30G) This part replaces 55413-00A00.

55413-00A01

1
Out of stock

18

REFER TO FIG.46A(J- 7) FOR

SPECIAL NOTE

—
Out of stock
