1996 Suzuki GSX600FT Handle Lever Diagram

← All diagrams

Find the part on the Handle Lever diagram for your 1996 Suzuki GSX600FT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

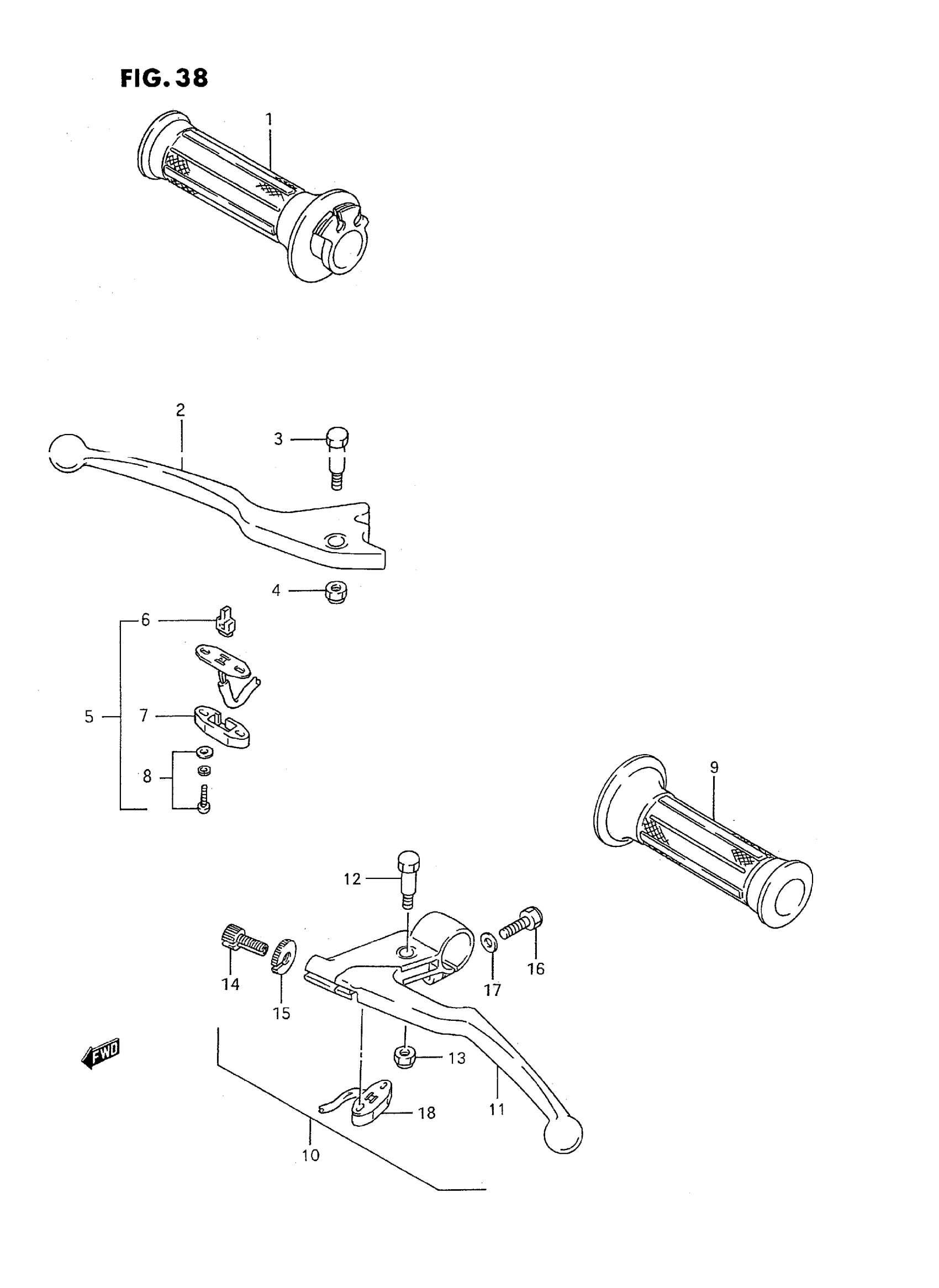

1996 Suzuki GSX600FT Handle Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP, THROTTLE

57110-49501

1

$34.87

In stock

2

LEVER, BRAKE This part replaces 57420-19C00.

57420-38B00

1
Out of stock

3

BOLT

57431-05A00

1
Out of stock

4

.NUT This part replaces 08319-21065.

08319-2106B

1
Out of stock

5

1

$44.47

In stock

6

HOLDER

57465-18601

1

$4.33

In stock

7

COVER

57481-33010

1

$5.98

In stock

8

2

$2.43

In stock

9

GRIP, LH

57211-49500

1

$14.31

In stock

10

LEVER ASSY, CLUTCH | Includes Item(s) 11 - 18 This part replaces 57500-19C00.

57500-19C01

1
Out of stock

11

1

$21.74

In stock

12

BOLT

57431-49110

1

$8.37

In stock

13

.NUT This part replaces 08319-21065.

08319-2106B

1
Out of stock

14

ADJUSTER

57441-44400

1

$8.33

In stock

15

1

$2.92

In stock

16

BOLT

01204-06204

1

$2.97

In stock

17

.WASHER This part replaces 08322-21064.

08322-0106B

1
Out of stock

18

SWITCH ASSY, CLUTCH This part replaces 57560-08A00.

57560-18D10

1
Out of stock

19

REFER TO FIG.38A(G-12) FOR

SPECIAL NOTE

—
Out of stock
