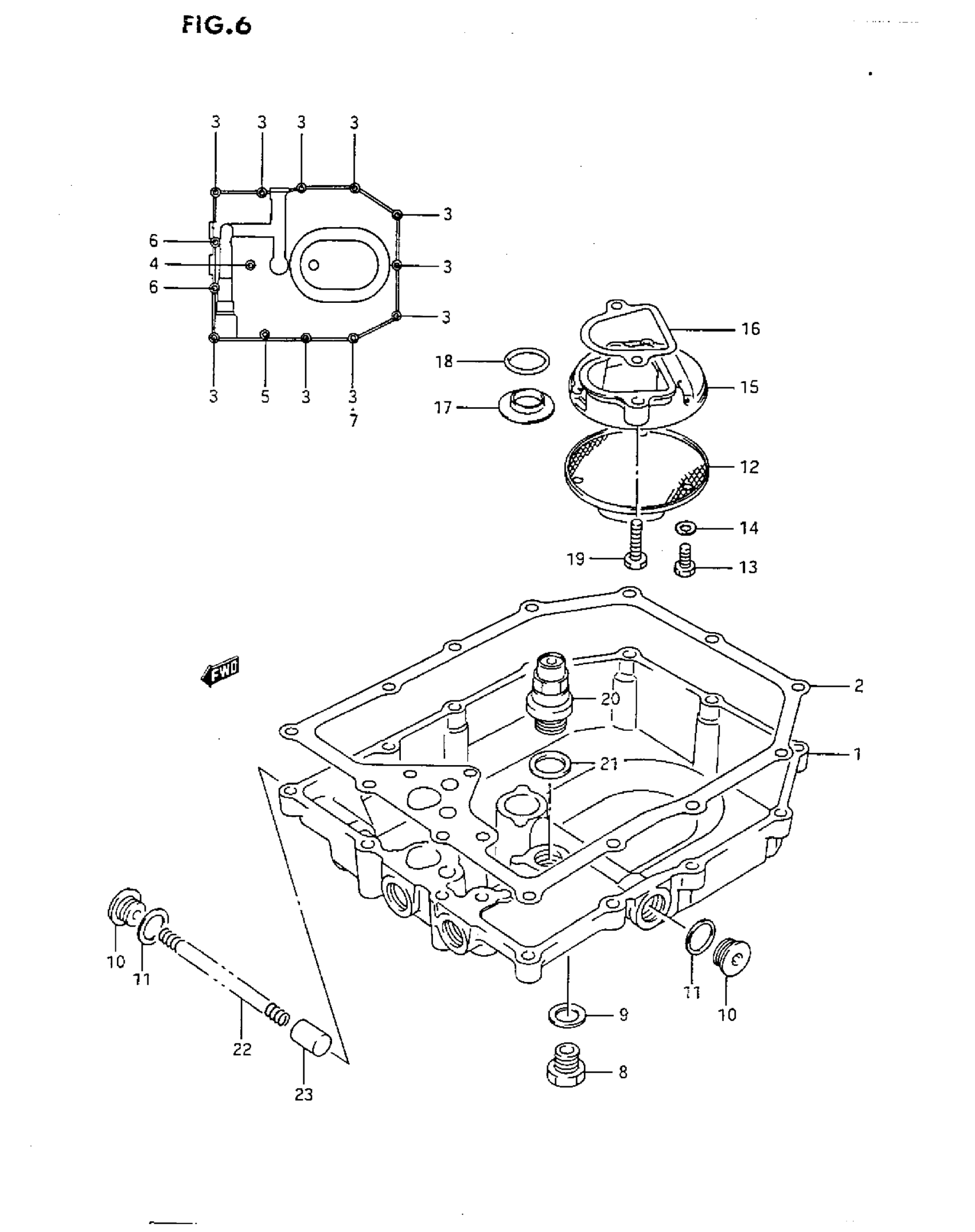

Suzuki GSX600F (1993) OIL PAN Diagram

#

Description
Price

1

PAN, OIL

11511-19C00

Unavailable

2

O RING, OIL PAN | MODEL J/K/L This part replaces 11489-27A00.

11489-27A21

$14.94

2

O RING, OIL PAN | MODEL M/N This part replaces 11489-27A10.

11489-27A21

$14.94

2

O RING, OIL PAN | MODEL P/R This part replaces 11489-27A20.

11489-27A21

$14.94

3

BOLT | ~E.NO.138650 This part replaces 07110-06255.

07130-0625B

$2.80

3

BOLT | E.NO.138651~ This part replaces 07130-06258.

07130-06257

$2.90

3

BOLT | MODEL R This part replaces 07130-06253.

07130-0625B

$2.80

4

BOLT | ~E.NO.138650 This part replaces 07110-06355.

07130-0635B

$3.04

4

NO DESCRIPTION AVAILABLE | E.NO.138651~ This part replaces 07130-06358.

07130-06357

Unavailable

4

BOLT | MODEL R This part replaces 07130-06353.

07130-0635B

$3.04

5

BOLT, STATOR | ~E.NO.138650 This part replaces 07110-06405.

07130-0640B

$3.10

5

BOLT | E.NO.138651~ This part replaces 07130-06408.

07130-06407

Unavailable

5

BOLT, STATOR | MODEL R This part replaces 07130-06403.

07130-0640B

$3.10

6

BOLT | ~E.NO.138650 This part replaces 07110-06455.

07130-0645B

$4.45

6

BOLT | E.NO.138651~ This part replaces 07130-06458.

07130-0645B

$4.45

6

BOLT | MODEL R This part replaces 07130-06453.

07130-0645B

$4.45

7

GASKET

09168-06024

$2.19

8

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$4.73

9

GASKET

09168-14002

$2.83

10

PLUG, OIL DRAIN This part replaces 09248-16010.

09248-16012

$4.19

11

GASKET

09168-16002

$1.89

12

STRAINER, ENGINE OIL

16520-06B01

Unavailable

13

BOLT | MODEL J/K/L/M/N/P This part replaces 01107-06127.

01500-06127

$1.97

13

BOLT | MODEL R This part replaces 01570-06123.

01570-0612A

$2.87

14

LOCK WASHER | MODEL J/K/L/M/N/P This part replaces 08321-21067.

08321-01067

$1.83

15

PROTECTOR, STRAINER

16525-48B01

Unavailable

16

GASKET, OIL STR PROTECTOR | MODEL J/K/L This part replaces 16528-27A02.

16528-27A21

$6.18

16

GASKET, OIL STR PROTECTOR | MODEL M/N This part replaces 16528-27A10.

16528-27A21

$6.18

16

GASKET, OIL STR PROTECTOR | MODEL P/R This part replaces 16528-27A20.

16528-27A21

$6.18

17

GASKET, OIL OUTLET

16529-27A01

$2.15

18

O-RING

09280-18009

$5.26

19

BOLT | MODEL J/K/L/M/N/P This part replaces 01517-06257.

01550-06257

$2.31

19

BOLT | MODEL R This part replaces 01550-06253.

01550-0625A

$1.97

20

REGULATOR, ENGINE OIL

16440-27A01

$74.95

21

WASHER

09168-16002

$1.89

22

SPRING

09440-09023

Unavailable

23

PLUNGER, OIL CONTROL

16442-34301

Unavailable
