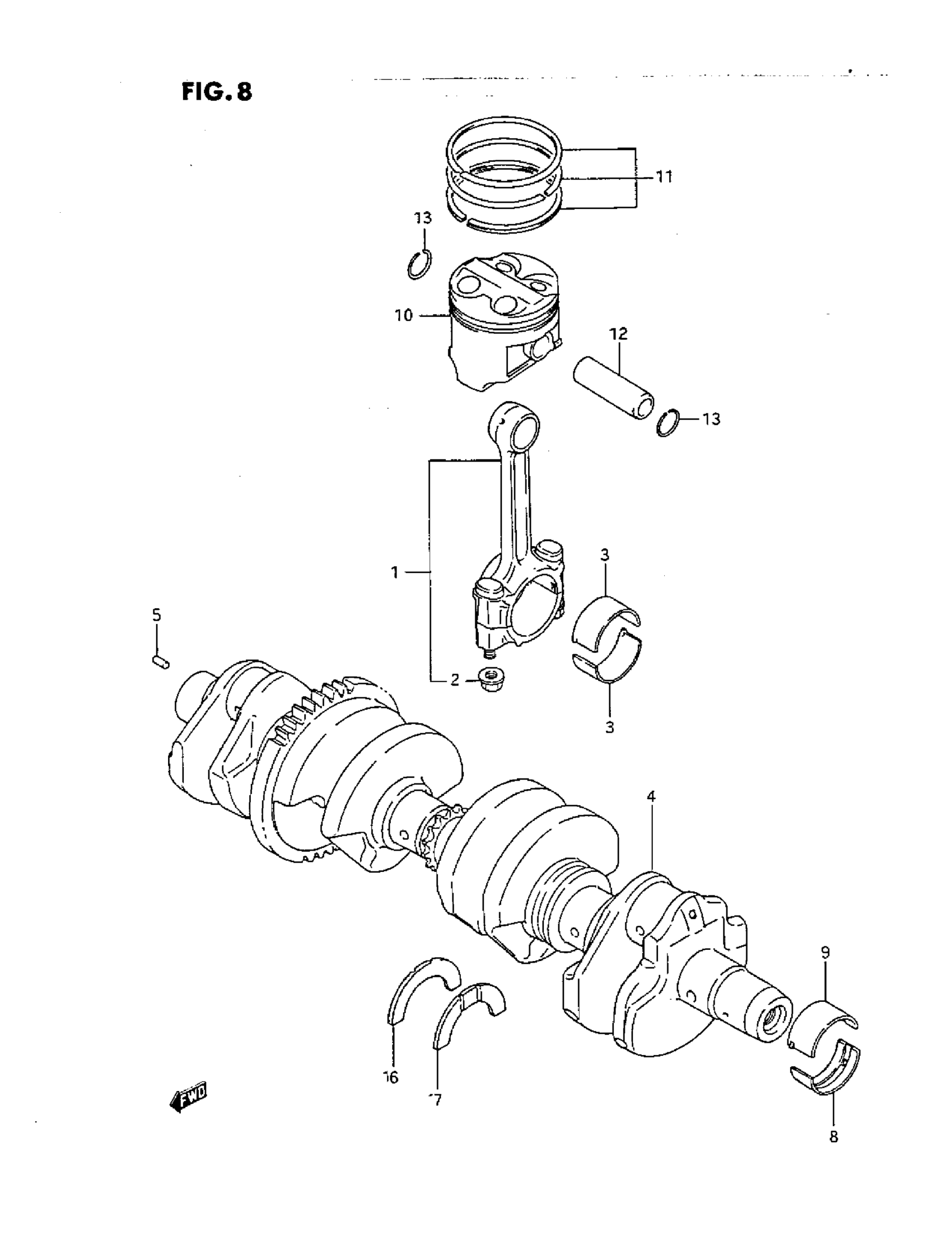

Find the part on the Crankshaft diagram for your 1993 Suzuki GSX600F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1993 Suzuki GSX600F Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ROD ASSY, CONNECTING This part replaces 12160-27A13.

12160-27A14

4
Out of stock

2

NUT

09159-08033

8
Out of stock

3

BEARING, CRANK PIN (GREEN) | ~E.NO.149892 This part replaces 12164-27A00-0A0.

12164-17E01-0A0

8
Out of stock

3

BEARING, CRANK PIN (BLACK) | ~E.NO.149892 This part replaces 12164-27A00-0B0.

12164-17E01-0B0

8
Out of stock

3

BEARING, CRANK PIN (BROWN) | ~E.NO.149892 This part replaces 12164-27A00-0C0.

12164-17E01-0C0

8
Out of stock

3

BEARING, CRANK PIN (YELLOW) | ~E.NO.149892 This part replaces 12164-27A00-0D0.

12164-17E01-0D0

8
Out of stock

3

BEARING, CRANK PIN (GREEN) | E.NO.149893~ This part replaces 12164-17E00-0A0.

12164-17E01-0A0

8
Out of stock

3

BEARING, CRANK PIN (BLACK) | E.NO.149893~ This part replaces 12164-17E00-0B0.

12164-17E01-0B0

8
Out of stock

3

BEARING, CRANK PIN (BROWN) | E.NO.149893~ This part replaces 12164-17E00-0C0.

12164-17E01-0C0

8
Out of stock

3

BEARING, CRANK PIN (YELLOW) | E.NO.149893~ This part replaces 12164-17E00-0D0.

12164-17E01-0D0

8
Out of stock

4

NO DESCRIPTION AVAILABLE | MODEL J/K/L/M This part replaces 12000-47810.

12000-47811

1
Out of stock

4

CRANKSHAFT SET | MODEL N/P ~E.NO.149892 This part replaces 12000-47830.

12000-47831

1
Out of stock

4

NO DESCRIPTION AVAILABLE | MODEL P/R E.NO.149893~ This part replaces 12000-47840.

12000-47841

1
Out of stock

5

PIN (4X13.8)

04221-04089

1
Out of stock

5

BEARING KIT | (NOT SHOWN) INCLUDES REF #'S 5-7

99104-BRGKT-003

1
Out of stock

6

BEARING KIT | (NOT SHOWN) INCLUDES REF #'S 5-7

99104-BRGKT-003

1
Out of stock

6

BEARING, THRUST RH (GREEN) | BEARING KIT This part replaces 12228-19C00.

12228-43414

1
Out of stock

7

BEARING KIT | (NOT SHOWN) INCLUDES REF #'S 5-7

99104-BRGKT-003

1
Out of stock

7

BEARING, THRUST LH (RED) | AVAILABLE

12228-43411

1
Out of stock

7

BEARING, THRUST LH (BLACK)

12228-43412

1
Out of stock

7

BEARING, THRUST LH (BLUE)

12228-43413

1
Out of stock

7

BEARING, THRUST LH (GREEN)

12228-43414

1
Out of stock

7

BEARING, THRUST LH (YELLOW)

12228-43415

1
Out of stock

7

BEARING, THRUST LH (WHITE)

12228-43416

1
Out of stock

8

BEARING, CRANKSHAFT (GREEN) | LOWER

12229-27A00-0A0

6
Out of stock

8

BEARING, CRANKSHAFT (BLACK)

12229-27A00-0B0

6
Out of stock

8

BEARING, CRANKSHAFT (BROWN)

12229-27A00-0C0

6
Out of stock

8

BEARING, CRANKSHAFT (YELLOW)

12229-27A00-0D0

6
Out of stock

9

BEARING, CRANKSHAFT (GREEN) | UPPER

12229-27A10-0A0

6
Out of stock

9

BEARING, CRANKSHAFT (BLACK)

12229-27A10-0B0

6
Out of stock

9

BEARING, CRANKSHAFT (BROWN)

12229-27A10-0C0

6
Out of stock

9

BEARING, CRANKSHAFT (YELLOW)

12229-27A10-0D0

6
Out of stock

10

PISTON | MODEL J/K/L/M This part replaces 12111-19C01.

12111-19C20-0F0

4
Out of stock

10

PISTON (OS:0.5) | MODEL J/K/L/M OPT This part replaces 12111-19C01-050.

12111-19C02-050

4
Out of stock

10

PISTON SET (OS:1.0) | MODEL J/K/L/M OPT This part replaces 12111-19C01-100.

12100-19C20-100

4
Out of stock

10

PISTON | MODEL N/P This part replaces 12111-19C02.

12111-19C20-0F0

4
Out of stock

10

PISTON (OS:0.5) | MODEL N/P OPT

12111-19C02-050

4
Out of stock

10

PISTON SET (OS:1.0) | MODEL N/P OPT This part replaces 12111-19C02-100.

12100-19C20-100

4
Out of stock

11

RING SET, PISTON

12140-19C10

4
Out of stock

11

RING SET, PISTON ( OS:0.5) | OPT

12140-19C10-050

4
Out of stock

11

RING SET, PISTON (OS:1.0) | OPT

12140-19C10-100

4
Out of stock

12

PIN, PISTON This part replaces 12151-19C01.

12151-19C02

4
Out of stock

13

CIRCLIP This part replaces 09381-18003.

09381-18005

8
Out of stock
