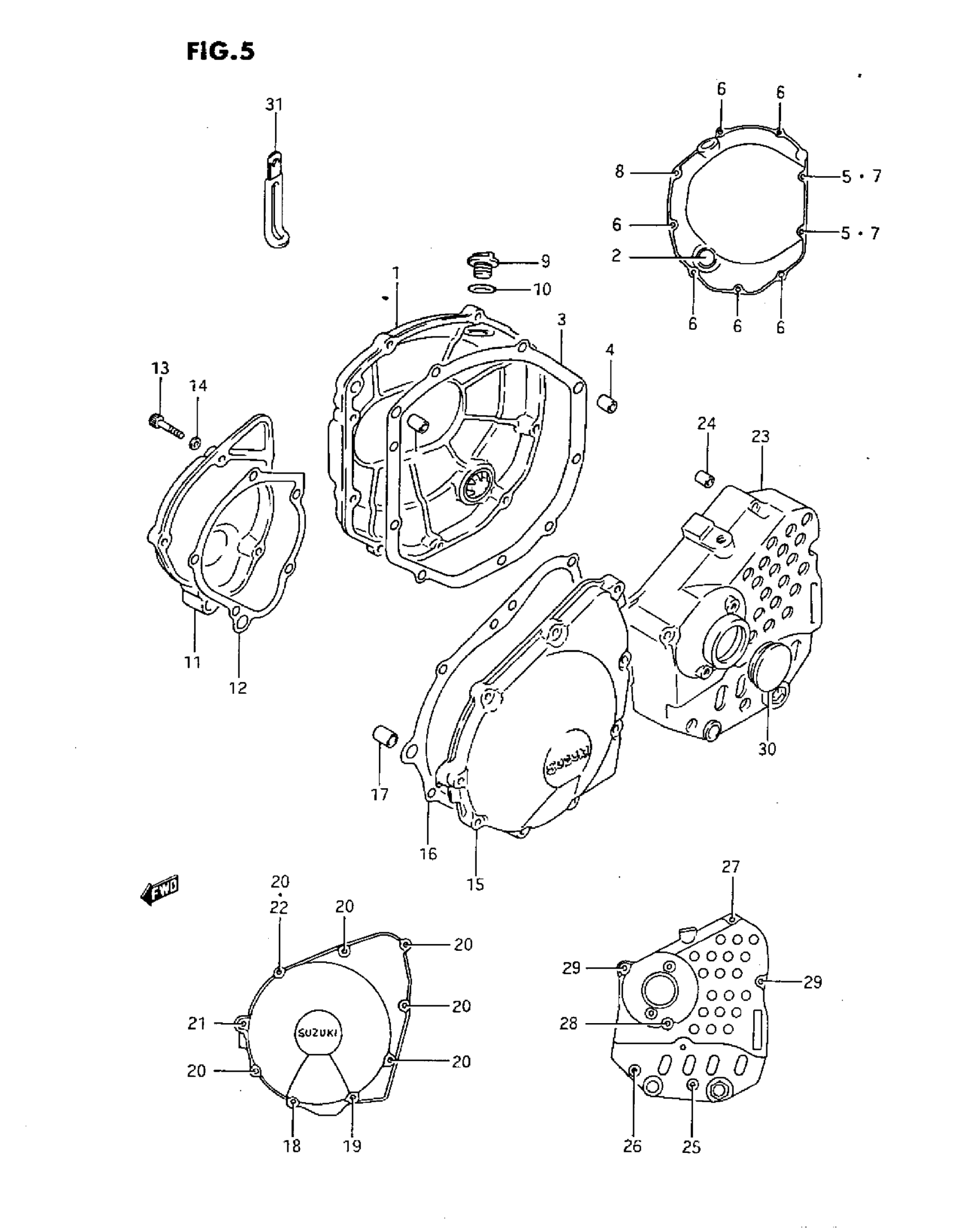

Suzuki GSX600F (1993) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH (BLACK) | MODEL J This part replaces 11340-27A00.

11340-20C00

Unavailable

1

COVER, CLUTCH | MODEL K/L/M/N/P/R

11340-20C00

Unavailable

2

LENS, OIL LEVEL

11971-33210

$17.41

3

GASKET, CLUTCH COVER | MODEL J/K/L This part replaces 11482-27A01.

11482-27A20

$13.59

3

GASKET, CLUTCH COVER | MODEL M/N This part replaces 11482-27A10.

11482-27A20

$13.59

3

GASKET, CLUTCH COVER | MODEL P/R

11482-27A20

$13.59

4

PIN

04211-09189

$1.70

5

GASKET

09168-06024

$2.19

6

BOLT | MODEL J/K/L/M/N/P This part replaces 07110-06255.

07130-0625B

$2.82

6

BOLT | MODEL R This part replaces 07130-06253.

07130-0625B

$2.82

7

BOLT | MODEL J/K/L/M/N/P This part replaces 07110-06305.

07130-0630B

$3.13

7

BOLT | MODEL R This part replaces 07130-06303.

07130-0630B

$3.13

8

BOLT | MODEL J/K/L/M/N/P This part replaces 07110-06355.

07130-0635B

$3.15

8

BOLT | MODEL R This part replaces 07130-06353.

07130-0635B

$3.15

9

.PLUG | MODEL J/K This part replaces 09259-20012.

09259-20008-XC0

$6.97

9

.PLUG | MODEL L/M/N/P/R This part replaces 09259-20015.

09259-20008-XC0

$6.97

10

O-RING

09280-17003

$1.70

11

COVER,SIGNAL GE | MODEL J This part replaces 11381-27A01.

11381-27A03

Unavailable

11

COVER,SIGNAL GE | MODEL K/L/M/N This part replaces 11381-48B00.

11381-48B02

Unavailable

11

COVER,SIGNAL GE | MODEL P/R This part replaces 11381-48B01.

11381-48B02

Unavailable

12

GASKET | MODEL J/K/L This part replaces 11491-27A00.

11491-27A30

$8.04

12

GASKET | MODEL M/N This part replaces 11491-27A10.

11491-27A30

$8.04

12

GASKET | MODEL P/R This part replaces 11491-27A20.

11491-27A30

$8.04

13

BOLT,6X23 | MODEL J/K/L/M/N/P This part replaces 09106-06059.

09106-06059-XC0

Unavailable

13

BOLT (6X23) | MODEL R

09106-06082

$3.30

14

GASKET

09168-06024

$2.19

15

COVER, STARTER GEAR | MODEL J

11351-17C00

Unavailable

15

COVER, STARTER GEAR | MODEL K/L/M/N/P/R

11351-20C00

$225.70

16

GASKET, GEAR COVER | MODEL J/K/L This part replaces 11483-27A00.

11483-27A20

$10.70

16

GASKET, GEAR COVER | MODEL M/N This part replaces 11483-27A10.

11483-27A20

$10.70

16

GASKET, STARTER GEAR COVER | MODEL P/R

11483-27A20

$10.70

17

PIN (11X20) This part replaces 09206-11005.

09206-11017

$6.85

18

BOLT | MODEL J/K/L/M/N/P This part replaces 07110-06165.

07130-0616B

$2.44

18

BOLT | MODEL R This part replaces 07130-06163.

07130-0616B

$2.44

19

BOLT, FRONT BRG HOUSING | MODEL J/K/L/M/N/P This part replaces 07110-06205.

07130-0620B

$2.88

19

BOLT, FRONT BRG HOUSING | MODEL R This part replaces 07130-06203.

07130-0620B

$2.88

20

BOLT | MODEL J/K/L/M/N/P This part replaces 07110-06255.

07130-0625B

$2.82

20

BOLT | MODEL R This part replaces 07130-06253.

07130-0625B

$2.82

21

BOLT, STATOR | MODEL J/K/L/M/N/P This part replaces 07110-06405.

07130-0640B

$3.21

21

BOLT, STATOR | MODEL R This part replaces 07130-06403.

07130-0640B

$3.21

22

GASKET

09168-06024

$2.19

23

COVER,ENGINE SP | MODEL J This part replaces 11361-19C03.

11361-19C04

Unavailable

23

COVER, ENGINE SPROCKET | MODEL K/L/M/N This part replaces 11361-20C00.

11361-20C02

Unavailable

23

COVER, ENGINE SPROCKET | MODEL P/R This part replaces 11361-20C01.

11361-20C02

Unavailable

24

PIN

04211-09129

$1.70

25

BOLT, STATOR | MODEL J/K/L/M/N/P This part replaces 07110-06405.

07130-0640B

$3.21

25

BOLT, STATOR | MODEL R This part replaces 07130-06403.

07130-0640B

$3.21

26

BOLT | MODEL J/K/L/M/N/P This part replaces 07110-06305.

07130-0630B

$3.13

26

BOLT | MODEL R This part replaces 07130-06303.

07130-0630B

$3.13

27

BOLT | MODEL J/K/L/M/N/P This part replaces 07110-06505.

07130-0650B

$4.45

27

BOLT | MODEL R This part replaces 07130-06503.

07130-0650B

$4.45

27

BOLT | MODEL L/M/N/P CALIFORNIA ONLY This part replaces 07110-06705.

07130-0670B

$3.64

27

BOLT | MODEL R CALIFORNIA ONLY This part replaces 07130-06703.

07130-0670B

$3.64

28

BOLT | MODEL J/K/L/M/N/P This part replaces 07110-06655.

07130-0665B

$3.59

28

BOLT | MODEL R This part replaces 07130-06653.

07130-0665B

$3.59

29

BOLT | MODEL J/K/L/M/N/P This part replaces 07110-06705.

07130-0670B

$3.64

29

BOLT | MODEL R This part replaces 07130-06703.

07130-0670B

$3.64

30

CAP, CLUTCH RELEASE

09250-30003

$3.64

31

CLAMP(L:80) | MODEL J/K This part replaces 09404-06426.

09404-06036

$1.81
