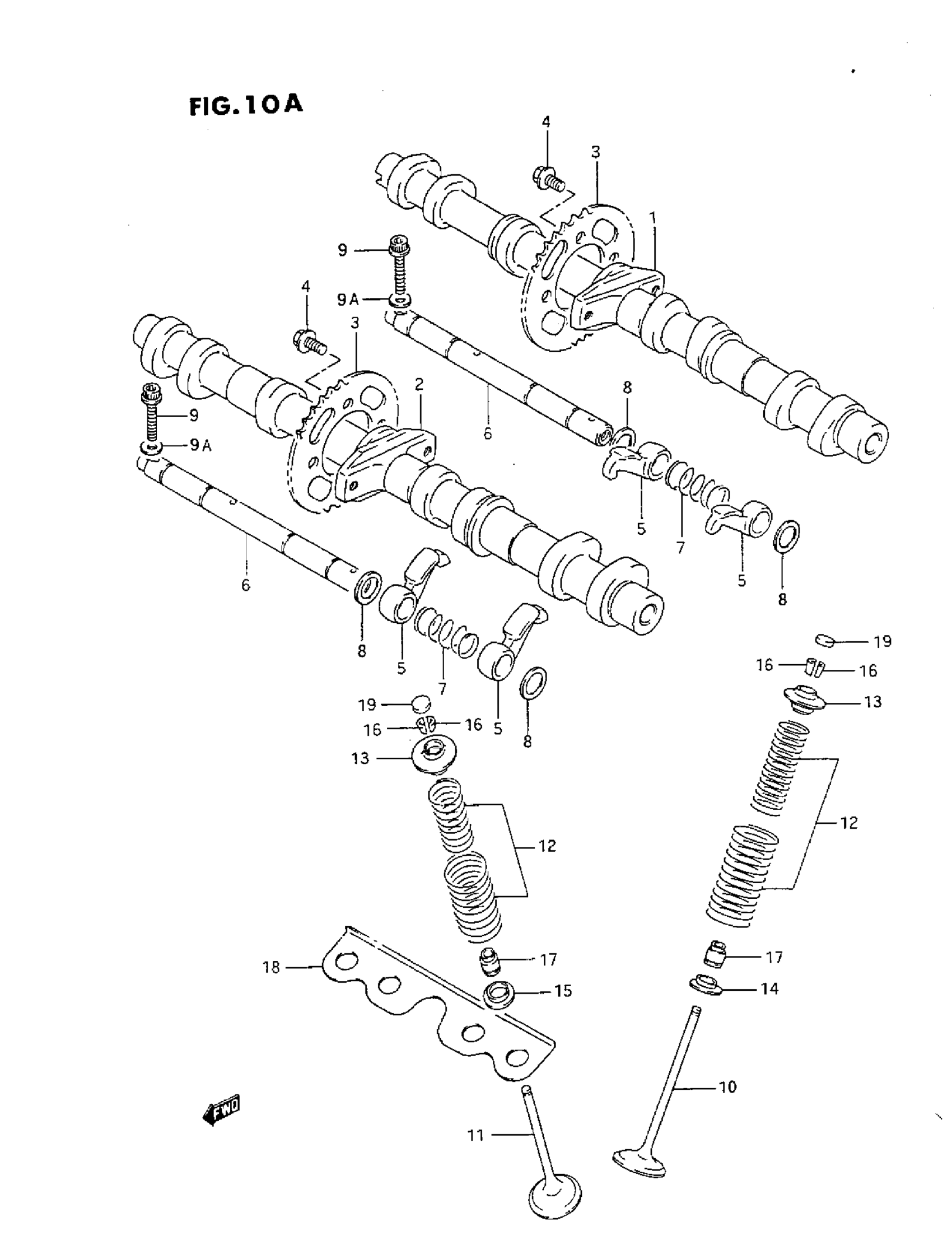

Suzuki GSX600F (1993) CAM SHAFT VALVE (N/P/R) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 12711-19E10.

12711-19E11

Unavailable

1

CAMSHAFT,INTAKE | MODEL R, CALIFORNIA ONLY This part replaces 12711-19E20.

12711-19E21

Unavailable

2

CAMSHAFT,EXHAUS This part replaces 12721-19E00.

12721-19E01

Unavailable

2

NO DESCRIPTION AVAILABLE | MODEL R, CALIFORNIA ONLY This part replaces 12721-19E20.

12721-19E21

Unavailable

3

SPROCKET, CAM SHAFT

12741-27A00

Unavailable

4

BOLT

09103-07001

$2.51

5

ARM, VALVE LOCKER

12841-33C02

Unavailable

6

SHAFT, VALVE LOCKER ARM

12861-19E00

Unavailable

7

SPRING This part replaces 09440-14019.

09440-14044

Unavailable

8

WASHER

08212-12183

Unavailable

9

BOLT, CENTER | MODEL N/P This part replaces 07120-06255.

07120-0625A

$2.57

9

BOLT, CENTER | MODEL R This part replaces 07120-06253.

07120-0625A

$2.57

9

.WASHER | MODEL R This part replaces 08322-01063.

08322-0106B

$2.31

10

VALVE, INTAKE

12911-19E00

Unavailable

11

VALVE, EXHAUST

12912-19E00

Unavailable

12

SPRING SET, VALVE

12920-41C00

Unavailable

13

RETAINER, VALVE SPRING This part replaces 12931-41C00.

12931-41C01

Unavailable

14

SEAT,VALVE SPRING

12933-81400

$5.09

15

SEAT, SPRING EXHAUST | MODEL N This part replaces 12934-27A00.

12934-27A01

$3.92

15

SEAT, SPRING EXHAUST | MODEL P/R

12934-27A01

$3.92

16

COTTER, VALVE

12932-27A00

$2.20

17

OIL SEAL

09289-05011

$5.87

18

PLATE, VALVE SEAT | MODEL N/P This part replaces 11137-19C00.

11137-19C01

Unavailable

18

PLATE, VALVE SEAT | MODEL R

11137-19C01

Unavailable

19

SHIM SET, TAPPET (5PCS.EA) | OPT NOT SHOWN INC ALL REF #19

12800-41810

$1,242.87

19

CASE, TAPPET SHIM | OPT NOT SHOWN

99000-69471

Unavailable

19

SHIM, TAPPET (T:2.30)

12892-41C00-230

$12.85

19

SHIM, TAPPET (T:2.35)

12892-41C00-235

$13.35

19

SHIM, TAPPET (T:2.40)

12892-41C00-240

$13.35

19

SHIM, TAPPET (T:2.45)

12892-41C00-245

$13.35

19

SHIM, TAPPET (T:2.50)

12892-41C00-250

$13.35

19

SHIM, TAPPET (T:2.55)

12892-41C00-255

$13.35

19

SHIM, TAPPET (T:2.60)

12892-41C00-260

$12.85

19

SHIM, TAPPET (T:2.65)

12892-41C00-265

$12.85

19

SHIM, TAPPET (T:2.70)

12892-41C00-270

$12.85

19

SHIM, TAPPET (T:2.75)

12892-41C00-275

$9.54

19

SHIM, TAPPET (T:2.80)

12892-41C00-280

$12.85

19

SHIM, TAPPET (T:2.85)

12892-41C00-285

$13.35

19

SHIM, TAPPET (T:2.90)

12892-41C00-290

$12.85

19

SHIM, TAPPET (T:2.95)

12892-41C00-295

$13.35

19

SHIM, TAPPET (T:3.00)

12892-41C00-300

$13.10

19

SHIM, TAPPET (T:3.05)

12892-41C00-305

$13.35

19

SHIM, TAPPET (T:3.10)

12892-41C00-310

$12.85

19

SHIM, TAPPET (T:3.15)

12892-41C00-315

Unavailable

19

SHIM, TAPPET (T:3.20)

12892-41C00-320

$13.10

19

SHIM, TAPPET (T:3.25)

12892-41C00-325

$13.35

19

SHIM, TAPPET (T:3.30)

12892-41C00-330

$13.35

19

SHIM, TAPPET (T:3.35)

12892-41C00-335

$13.35

19

SHIM, TAPPET (T:3.40)

12892-41C00-340

$13.35

19

SHIM, TAPPET (T:3.45)

12892-41C00-345

Unavailable

19

SHIM, TAPPET (T:3.50)

12892-41C00-350

$13.35
