2025 Suzuki GSX250RRLJM5 Speedometer Diagram

← All diagrams

Find the part on the Speedometer diagram for your 2025 Suzuki GSX250RRLJM5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

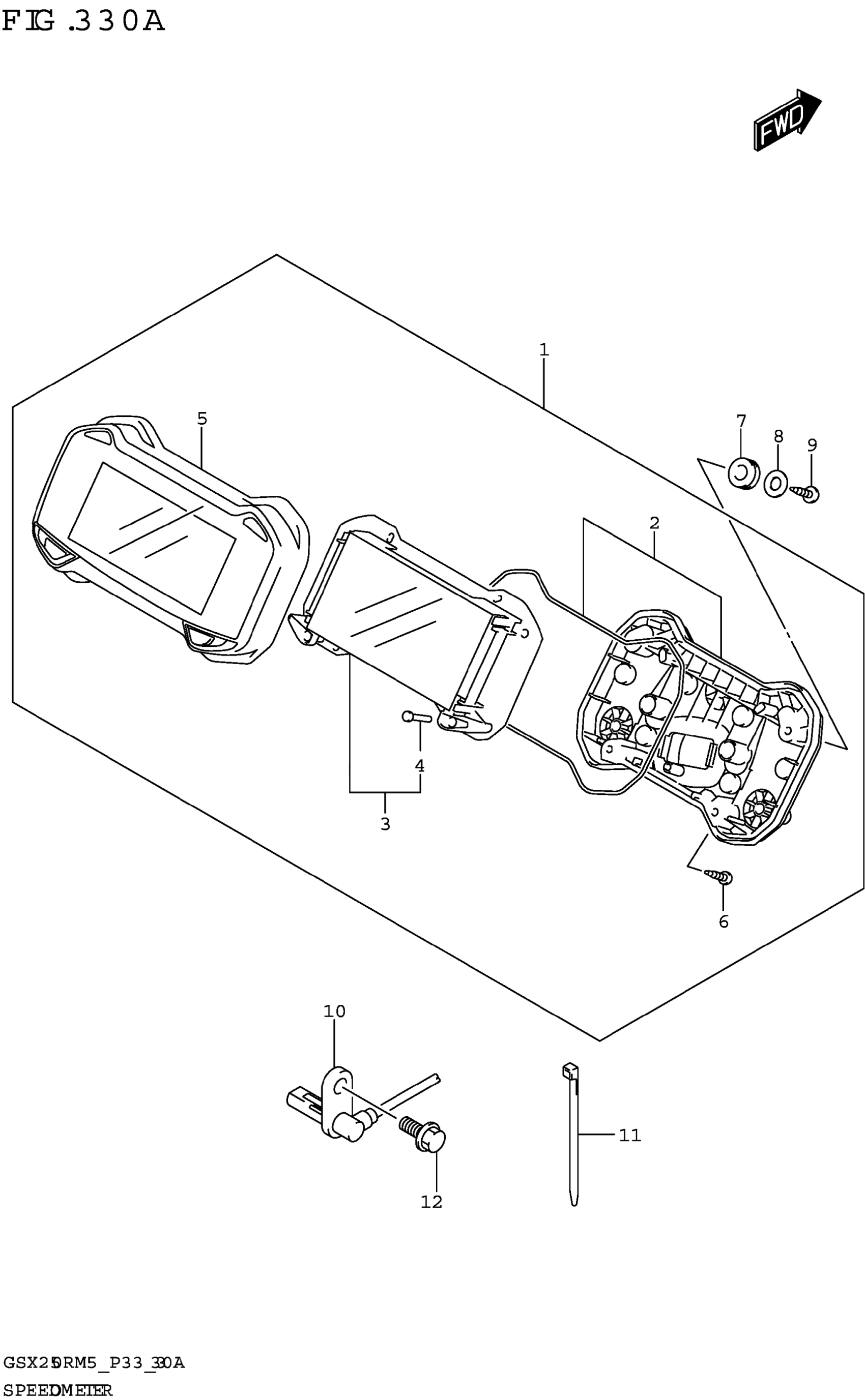

2025 Suzuki GSX250RRLJM5 Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSY

34100-20K52

1
Out of stock

2

.LOWER CASE

34111-20K01

1
Out of stock

3

.SPEEDOMETER

34120-20K51

1
Out of stock

4

..KEY TOP

34124-20K00

2
Out of stock

5

.UPPER CASE

34150-20K10

—
Out of stock

6

SCREW (3X16)

09132-03008

6
Out of stock

7

CUSHION,SPEEDOMETER

34189-30H30

3
Out of stock

8

WASHER (4.5X16X1.2)

09160-04026

1
Out of stock

9

SCREW

03541-0416A

1
Out of stock

10

SENSOR,RR WHEEL SPEED

65710-20K00

1
Out of stock

11

CLAMP (L:145)

09407-14407

1
Out of stock

12

BOLT (8X16)

01550-0816A

1
Out of stock
