2025 Suzuki GSX250RRLJM5 Electrical Diagram

← All diagrams

Find the part on the Electrical diagram for your 2025 Suzuki GSX250RRLJM5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

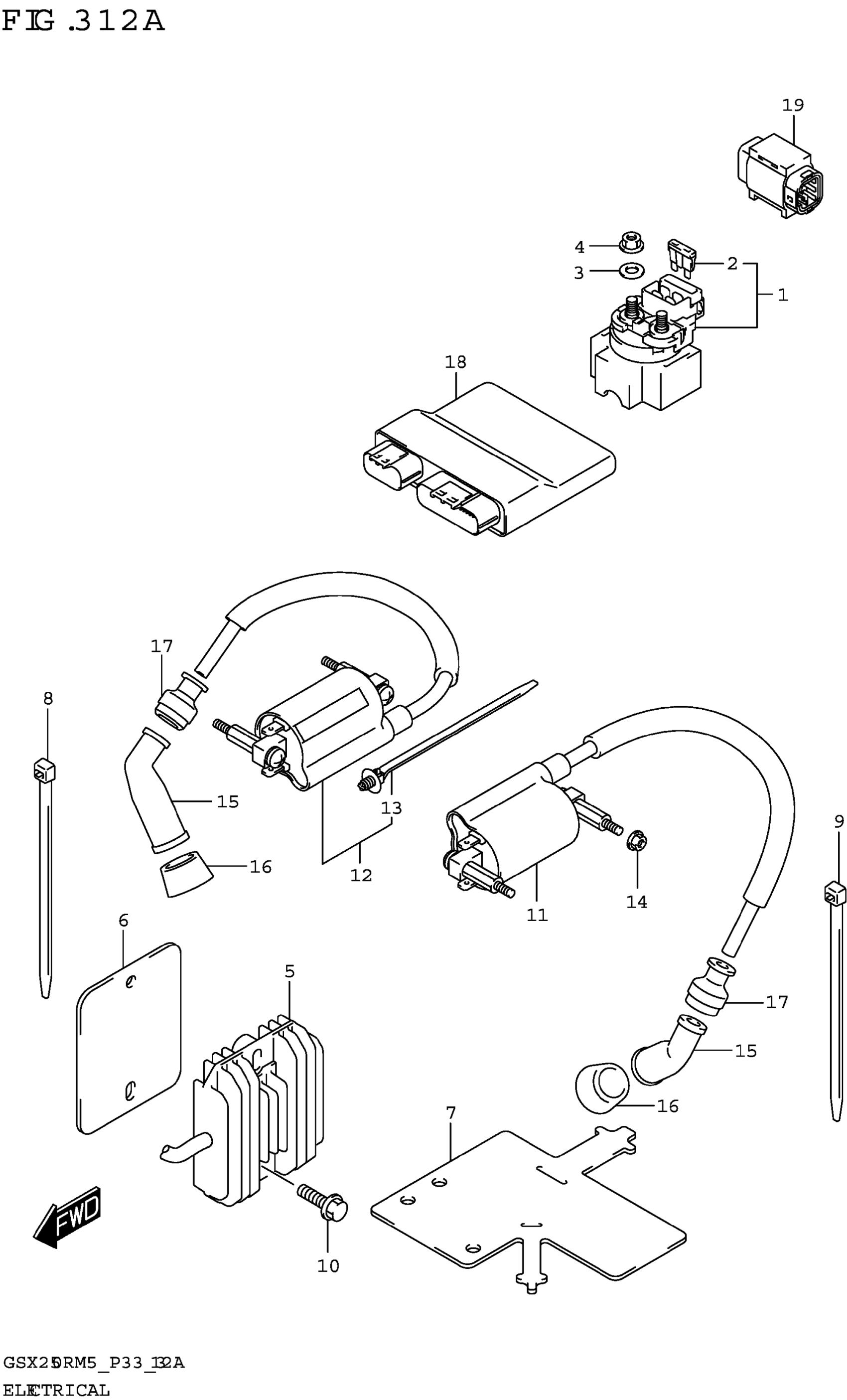

2025 Suzuki GSX250RRLJM5 Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RELAY ASSY,STARTING MOTOR

31800-48H01

1
Out of stock

2

.FUSE (30A)

09481-30101

2
Out of stock

3

WASHER (7.5X13X1)

09160-07019

2
Out of stock

4

NUT

08361-3506A

2
Out of stock

5

RECTIFIER ASSY

32800-20K40

1
Out of stock

6

PLATE,RECTIFIER

32832-20K00

1
Out of stock

7

SHEET,RECTIFIER

32853-20K00

1
Out of stock

8

CLAMP This part replaces 09407-20405.

09407-25402

2
Out of stock

9

CLAMP This part replaces 09407-20405.

09407-25402

2
Out of stock

10

SCREW

02162-0625A

2
Out of stock

11

COIL ASSY,IGNITION NO.1

33410-20K01

1
Out of stock

12

COIL ASSY,IGNITION NO.2

33420-20K01

1
Out of stock

13

CLAMP (L:170)

09407-17403

1
Out of stock

14

NUT

08316-1005B

4
Out of stock

15

CAP,SPARK PLUG

33510-48H00

1
Out of stock

16

SEAL,SPARK PLUG

33541-48H01

1
Out of stock

17

1

$4.93

In stock

18

CONTROL UNIT,FI

32920-20K50

—
Out of stock

19

SENSOR ASSY,FUEL CUT

33960-06G10

1
Out of stock
← Battery Holder Handle Switch →
