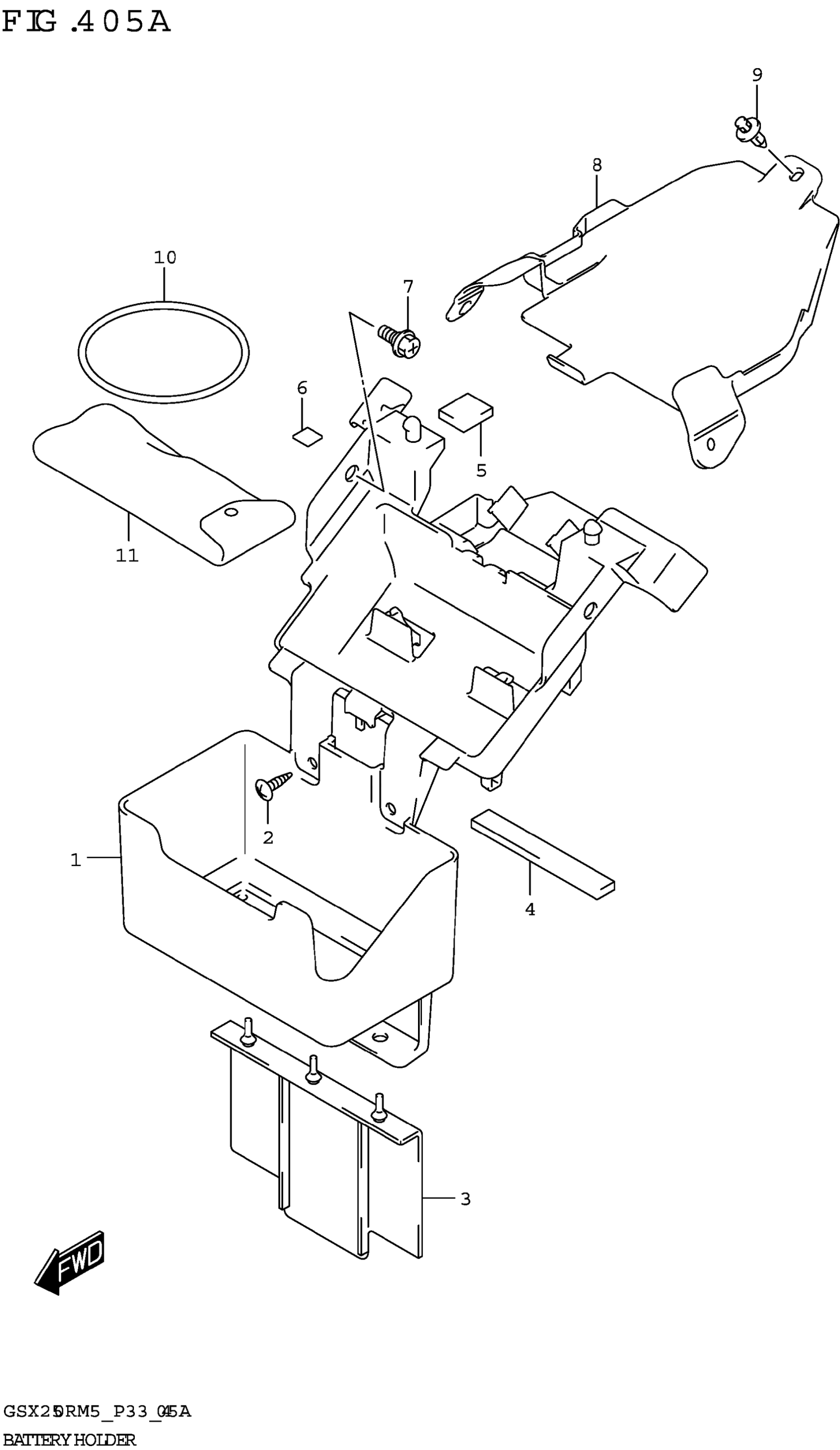

Suzuki GSX250RRLJM5 (2025) BATTERY HOLDER Diagram

#

Description
Price

1

HOLDER,ELECTRIC PARTS

47411-20K00

$53.03

2

SCREW

03541-0512B

$1.77

3

MUDGUARD,REAR FENDER

63113-48H01

$7.05

4

CUSHION,HOLDER NO.1

47413-20K00

$4.05

5

CUSHION,HOLDER NO.2

47414-20K00

$3.62

6

.CUSHION (15X15X1)

94429-20K00

$1.73

7

BOLT (6X12)

09111-06107

$2.66

8

PLATE,ACCESSORY

47412-20K00

$18.62

9

CLIP

48292-32GH0

$2.93

10

BAND,TOOL

47435-20K00

$10.08

11

TOOL ASSY

96510-20K01

$49.80
