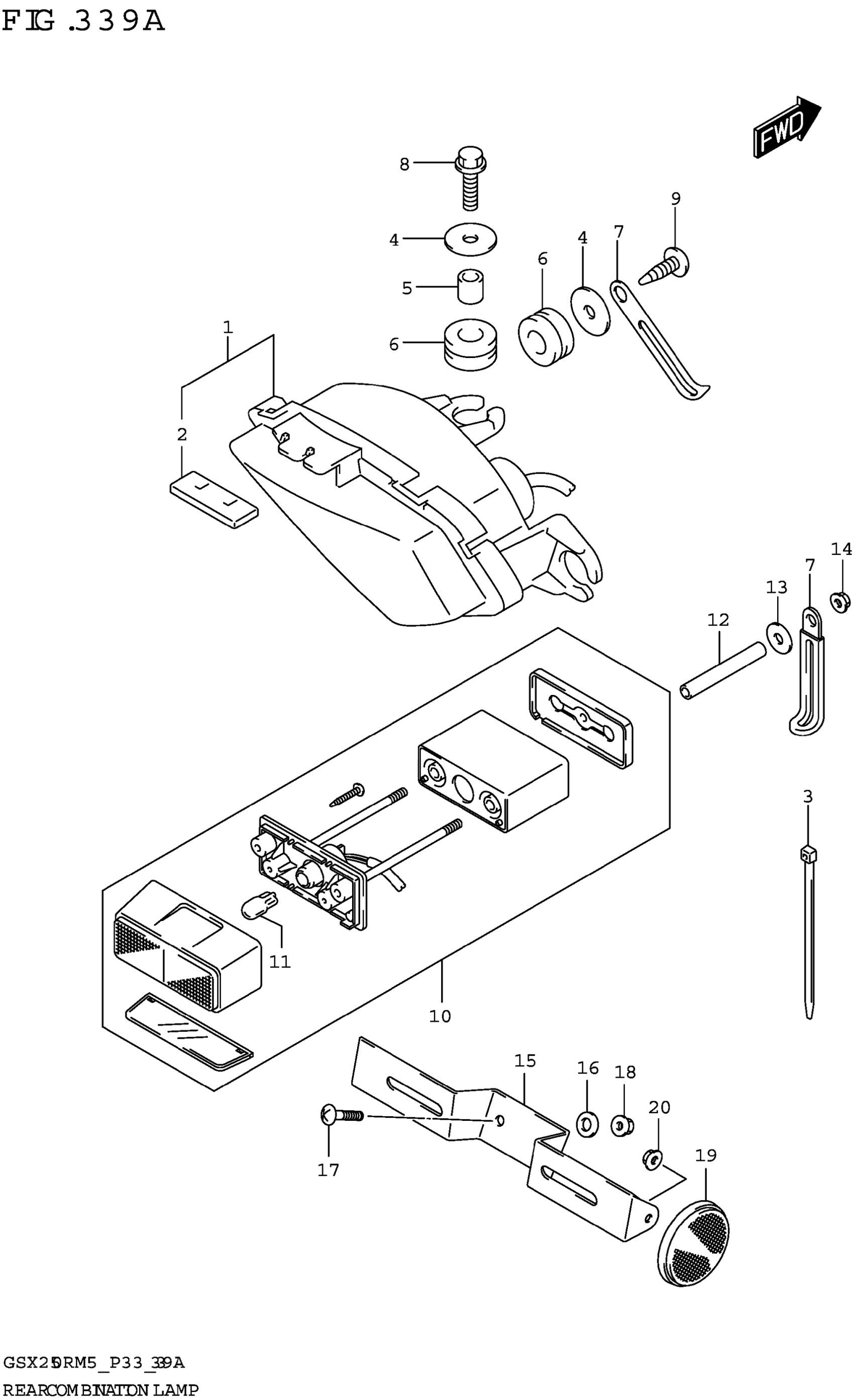

Suzuki GSX250RRLJM5 (2025) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY,REAR COMB

35710-20K01

$296.30

2

.COVER

35781-20K00

$3.62

3

.CLAMP (L:50)

36990-48H20

Unavailable

4

WASHER (5.5X20X1.2)

09160-05501

$1.86

5

SPACER (6.5X10X10)

09180-06310

$1.92

6

CUSHION

09320-10073

$2.12

7

CLAMP (L:45)

09404-06429

$1.82

8

BOLT

01550-0520A

$0.83

9

SCREW

03541-0516A

$1.37

10

LAMP ASSY.LICENSE

35910-48H40

$62.28

11

.BULB (12V5W)

09471-12216

$4.84

12

SPACER,LICENSE LAMP

35996-48H30

$3.48

13

WASHER (6.5X20X1.2)

09160-06077

$1.89

14

NUT (6X12)

08316-1006A

$2.19

15

BRACKET,LICENSE PLATE

35927-48H30

$9.23

16

WASHER (6.5X16X1.2)

09160-06019

$1.38

17

SCREW

02142-0616A

$1.37

18

NUT (6X12)

08316-1006A

$2.19

19

REFLECTOR ASSY,RR SIDE

35950-04HA0

$16.05

20

NUT

08316-1005A

$2.19
