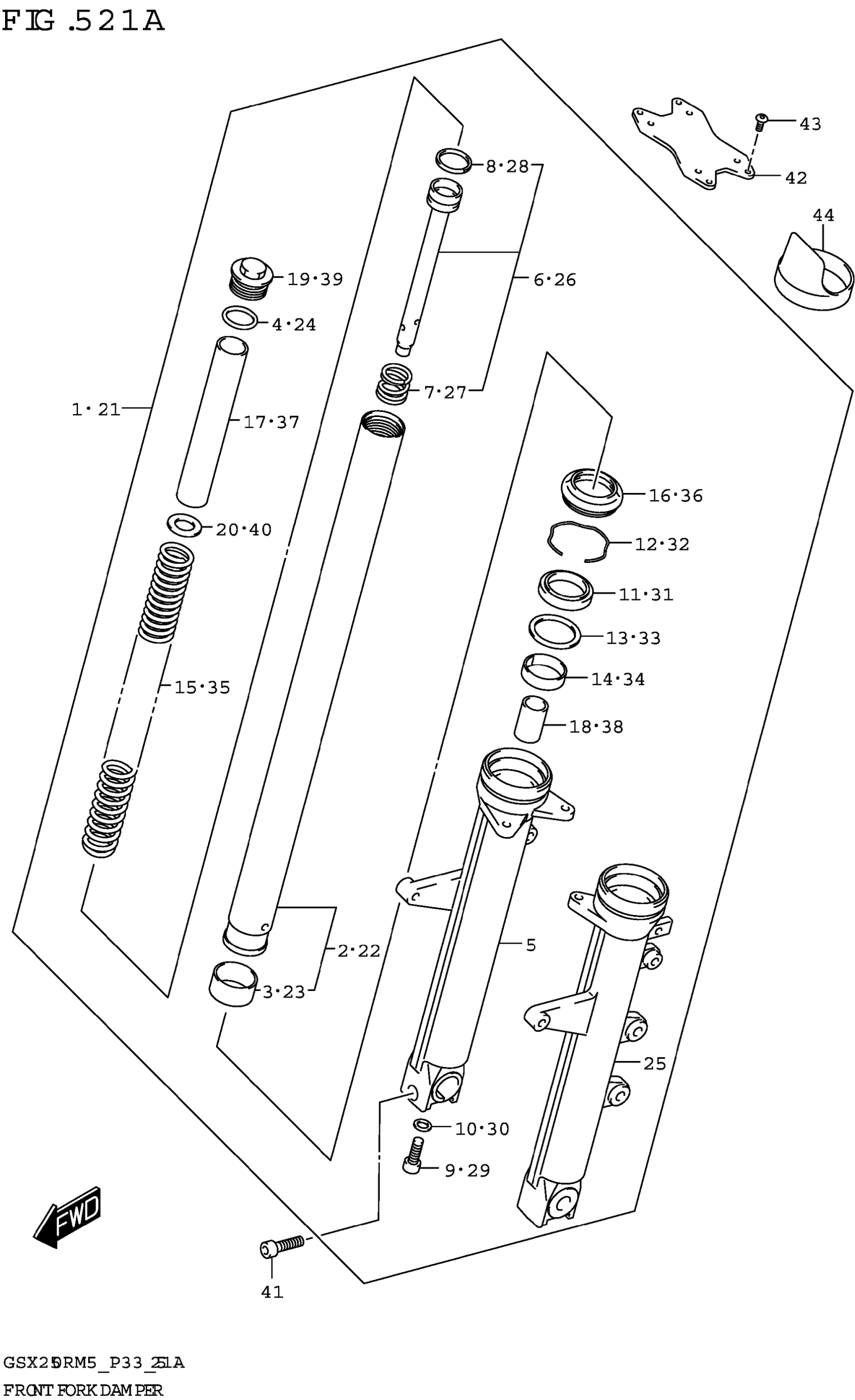

Suzuki GSX250RRLJM5 (2025) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY,FRONT FORK RH

51103-20K00

$1,365.37

2

.TUBE,INNER

51110-20K00

$331.32

3

..PISTON

51121-01D00

$25.08

4

.O-RING

51117-38260

$4.28

5

.TUBE,OUTER RH

51130-20K00

$636.17

6

.CYLINDER

51146-20K00

$111.03

7

..SPRING,REBOUND

51177-48H00

$16.00

8

..RING

51196-16730

$3.67

9

.BOLT

51147-05H00

$6.10

10

.GASKET

51148-41310

$2.14

11

.SEAL,OIL

51153-26F00

$28.53

12

.RING,SNAP

51156-20K00

$6.75

13

.WASHER

51158-48H00

$3.92

14

.METAL,SLIDE

51167-01D00

$11.89

15

.SPRING,MAIN

51171-20K00

$90.88

16

.SEAL,DUST

51173-48H00

$27.88

17

.SPACER

51176-48H10

Unavailable

18

.PIECE,OIL LOCK

51195-20K00

$16.70

19

.CAP

51351-48H00

$131.63

20

.WASHER

51356-48H00

$10.62

21

DAMPER ASSY,FRONT FORK LH

51104-20K00

Unavailable

22

.TUBE,INNER

51110-20K00

$331.32

23

..PISTON

51121-01D00

$25.08

24

.O-RING

51117-38260

$4.28

25

.TUBE,OUTER LH

51140-20K00

Unavailable

26

.CYLINDER

51146-20K00

$111.03

27

..SPRING,REBOUND

51177-48H00

$16.00

28

..RING

51196-16730

$3.67

29

.BOLT

51147-05H00

$6.10

30

.GASKET

51148-41310

$2.14

31

.SEAL,OIL

51153-26F00

$28.53

32

.RING,SNAP

51156-20K00

$6.75

33

.WASHER

51158-48H00

$3.92

34

.METAL,SLIDE

51167-01D00

$11.89

35

.SPRING,MAIN

51171-20K00

$90.88

36

.SEAL,DUST

51173-48H00

$27.88

37

.SPACER

51176-48H10

Unavailable

38

.PIECE,OIL LOCK

51195-20K00

$16.70

39

.CAP

51351-48H00

$131.63

40

.WASHER

51356-48H00

$10.62

41

BOLT

51328-48H00

Unavailable

42

STABILIZER,FR

51471-48H00

Unavailable

43

SCREW (6X16)

09139-06030

$3.33

44

PROTECTOR

51201-48H00

$20.00
