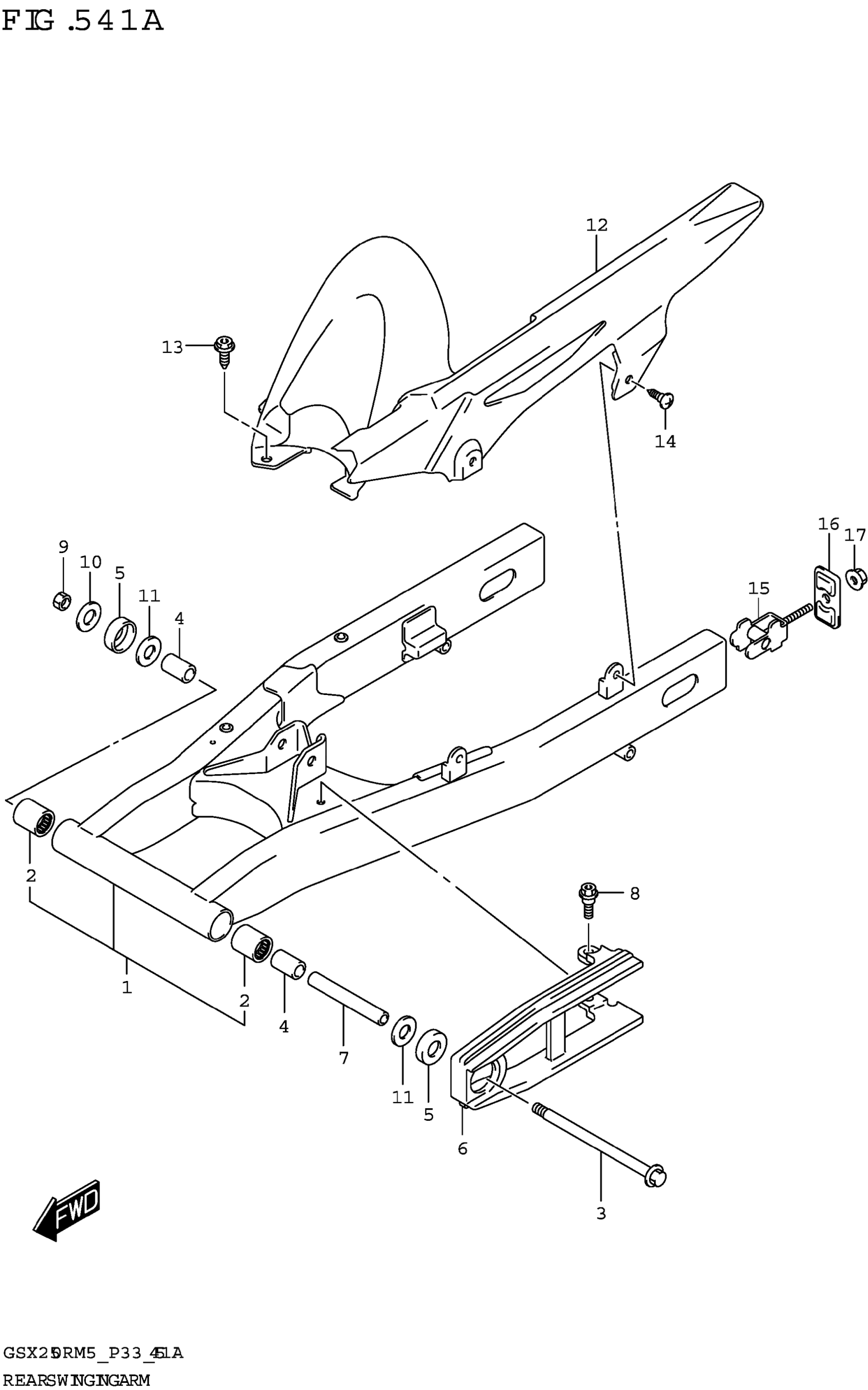

Suzuki GSX250RRLJM5 (2025) REAR SWINGINGARM Diagram

#

Description
Price

1

SWINGINGARM ASSY,REAR (BLACK)

61000-48H51-QGE

$270.25

2

.BEARING (22X29X30)

09263-22078

$12.57

3

SHAFT,RR SWGARM PIVOT

61211-48H11

$29.52

4

SPACER,RR SWGARM PIVOT BEARIN

61251-48H00

$23.80

5

COVER,RR SWGARM PIVOT DUST

61262-48H10

$4.12

6

BUFFER,CHAIN TOUCH DEFENSE

61273-48H01

$26.81

7

SPACER,RR SWGARM PIVOT CTR

61282-48H00

$13.07

8

BOLT (6X17.8)

09111-06072

$2.01

9

NUT

09159-14019

$10.63

10

WASHER (14.5X29X2.3)

09160-14067

Unavailable

11

WASHER (14X34X1)

09160-14068

Unavailable

12

CASE,CHAIN

61310-20K00

$31.13

13

BOLT (6X16)

09111-06065

Unavailable

14

SCREW, UPPER This part replaces 09139-06165.

09139-06168

$2.64

15

ADJUSTER,CHAIN

61410-48H00

$5.90

16

PLATE,CHAIN ADJUSTER GUIDE

61421-48H10

$5.10

17

NUT

08319-3108A

$2.31
