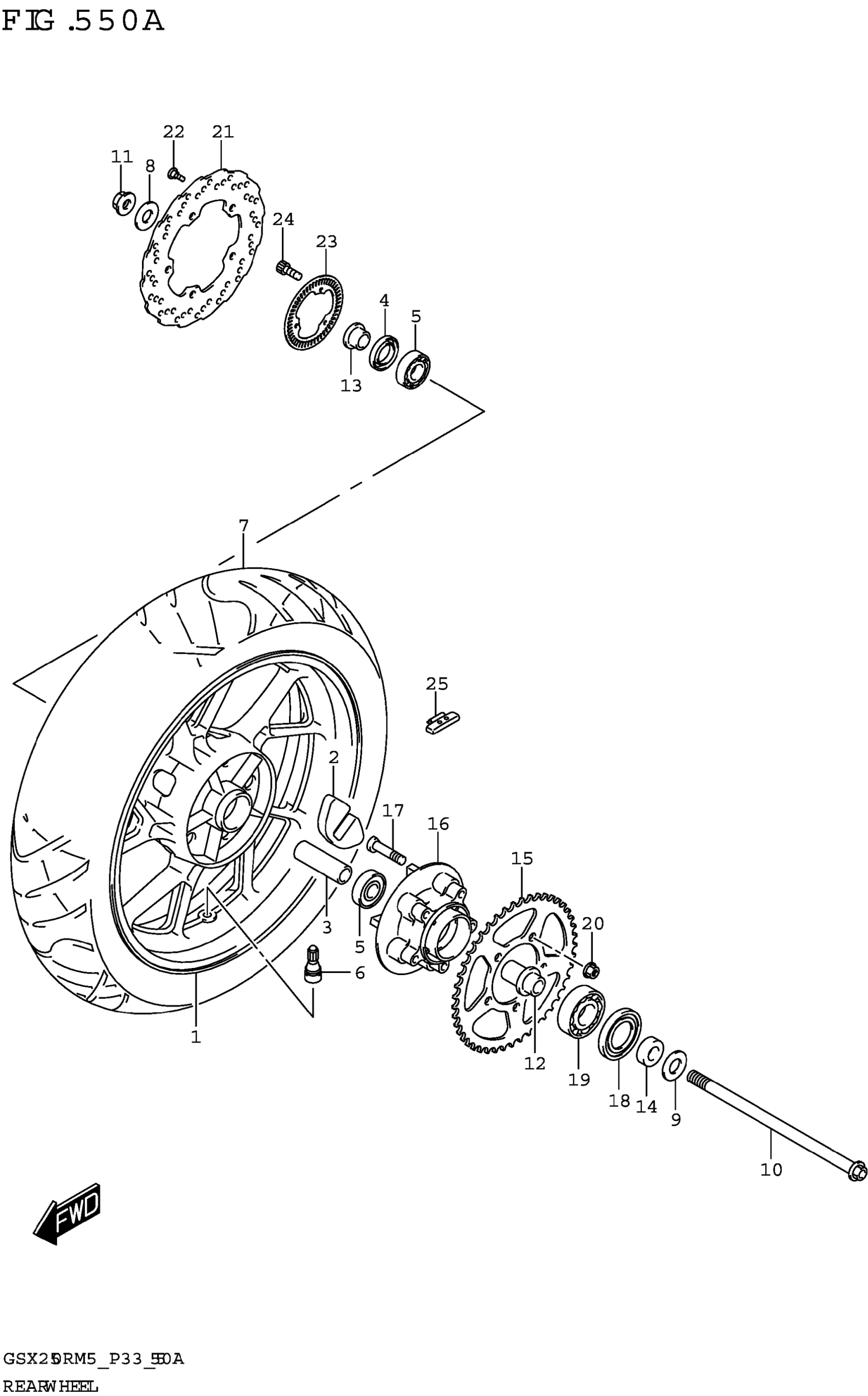

Suzuki GSX250RRLJM5 (2025) REAR WHEEL Diagram

#

Description
Price

1

WHEEL,REAR (17M/CXMT4.00,BLAC | )

64111-20K00-YGA

$563.32

2

ABSORBER,REAR HUB SHOCK

64651-20K00

$3.82

3

SPACER (17.5X25X78)

09180-17116

Unavailable

4

SEAL,OIL (25X47X8)

09283-25L02

$10.82

5

BEARING

08123-6303B

$14.23

6

VALVE ASSY,WHEEL RIM (TR412)

43130-32GH0

Unavailable

7

TIRE,REAR (140/70-17M/C 66H) | RX-01R,IRC

65110-48H31

$317.40

8

WASHER,RR AXLE RH

61445-48H00

$5.37

9

WASHER,RR AXLE LH

61455-48H00

$5.37

10

AXLE,RR

64711-48H10

$30.67

11

NUT,RR AXLE

64721-48H00

$5.37

12

RETAINER,RR SPROCKET DRUM

64733-10D00

$36.60

13

SPACER,RR AXLE,R

64741-48H00

$9.23

14

SPACER,RR AXLE,L

64751-48H00

$7.68

15

SPROCKET,RR (NT:46)

64511-48H10

$79.12

16

DRUM,RR SPROCKET

64611-17C10

Unavailable

17

BOLT (10X43.5)

09119-10088

$2.07

18

SEAL,OIL (35X62X8)

09285-35L01

$6.35

19

BEARING

08113-6305B

$26.57

20

NUT

08319-3110A

$2.73

21

DISC,REAR BRAKE

69211-20K00

$143.30

22

BOLT,RR BRAKE DISC

69222-48H00

$3.30

23

RING,SPEED SENSOR FR (50T)

54162-44H00

$26.80

24

BOLT

07130-0512A

$2.19

25-1

BALANCER,WHEEL (10G)

55411-48H00

$32.53

25-2

BALANCER,WHEEL (20G)

55412-48H00

$29.78

25-3

BALANCER,WHEEL (30G)

55413-48H00

$32.53
