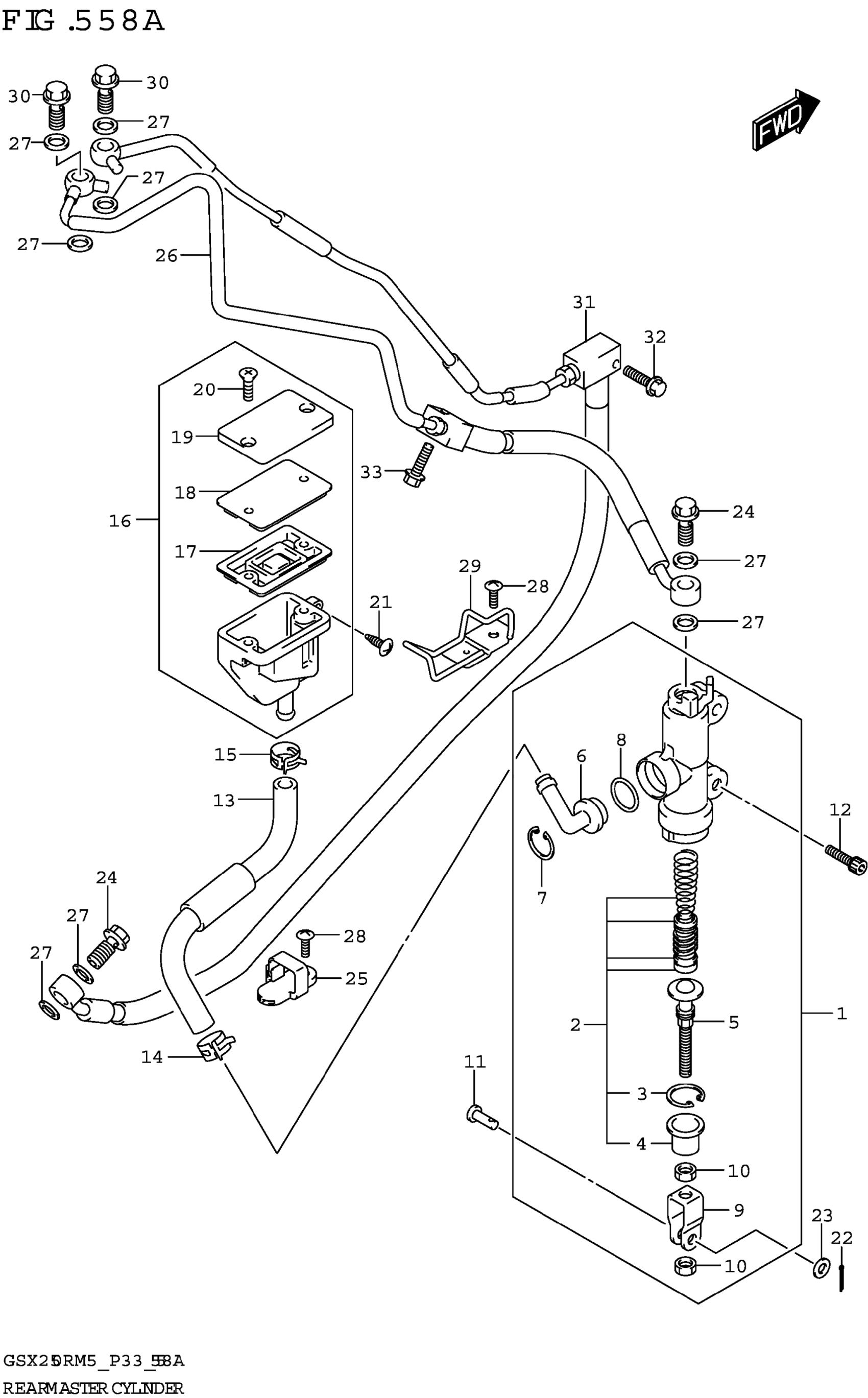

Suzuki GSX250RRLJM5 (2025) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY,REAR MASTER

69600-20K00

$180.48

2

.PISTON/CUP SET

69600-40820

$110.43

3

.CIRCLIP

69665-47H00

$5.65

4

.BOOT

69691-04A00

$5.83

5

.ROD,PUSH

69670-48H10

$81.25

6

.CONNECTOR

69672-00B20

$6.42

7

.CIRCLIP

69674-00B20

$3.73

8

.O-RING

69686-34200

$2.80

9

.YOKE

69692-44H00

$19.03

10

NUT This part replaces 69693-24A00.

69693-05A00

$1.86

11

PIN

69697-48H00

$3.48

12

BOLT

69698-48H00

Unavailable

13

HOSE,RR RESERVOIR TANK

69730-20K00

$55.05

14

CLIP,RR RSVR TANK HOSE LWR

69735-48H00

Unavailable

15

CLIP,RR RSVR TANK HOSE UPR

69735-48H10

Unavailable

16

TANK ASSY,REAR RESERVOIR

69740-48H50

$71.43

17

.DIAPHRAGM

69667-48H00

$29.10

18

.PLATE,DIAPHRAGM

69668-48H00

$10.08

19

.CAP

69669-48H50

$25.12

20

.SCREW

69689-48H10

$2.73

21

BOLT

01547-0616A

$2.01

22

PIN

04111-2015A

$1.22

23

WASHER

08322-0106A

$1.83

24

BOLT,BRAKE FLUID

59492-48H00

Unavailable

25

GUIDE,RR BRAKE HOSE

61196-48H00

$4.12

26

HOSE ASSY,RR BK MASTER TO UNI

69200-20K00

Unavailable

27

WASHER,BRAKE FLUID (10X15X1.5

59464-48H00

$2.95

28

SCREW

02142-0616A

$1.37

29

GUIDE,REAR BRAKE HOSE

69260-20K00

$8.75

30

BOLT,BRAKE FLUID (M10X1.25)

59492-48H20

Unavailable

31

HOSE ASSY,UNIT TO RR BK CLPR

69400-20K00

Unavailable

32

BOLT

01547-0616A

$2.01

33

BOLT

01547-0625A

$2.01
