2018 Suzuki GSX250RL8 Throttle Body Diagram

← All diagrams

Find the part on the Throttle Body diagram for your 2018 Suzuki GSX250RL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

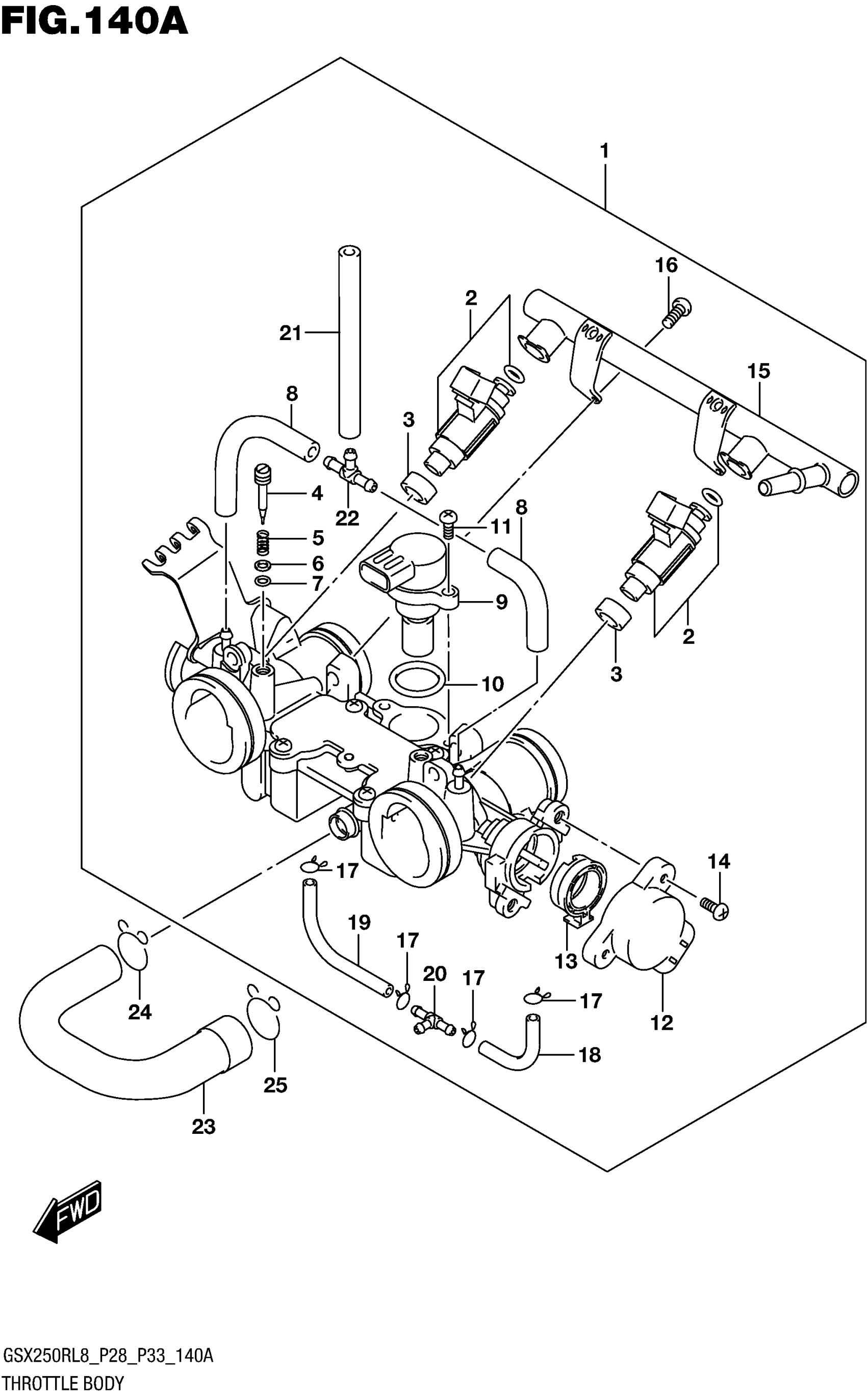

2018 Suzuki GSX250RL8 Throttle Body Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSY, THROTTLE

13400-48H30

1
Out of stock

2

.INJECTOR ASSY

15710-48H00

2
Out of stock

3

SEAL

15722-29G00

2
Out of stock

4

.ADJUSTER

13279-13G10

2
Out of stock

5

SPRING,THROTTLE SCREW

13268-48700

2

$4.33

In stock

6

WASHER

13606-47A00

2
Out of stock

7

O-RING This part replaces 13295-29900.

13295-29901

2
Out of stock

8

.HOSE

13681-39F00-090

2
Out of stock

9

.MOTOR ASSY

18117-14J01

1
Out of stock

10

.O RING

13679-37H00

1
Out of stock

11

2

$1.33

In stock

12

.SENSOR ASSY This part replaces 13580-48H00.

13580-48H01

1
Out of stock

13

.RING

13311-48H00

1
Out of stock

14

.SCREW

13605-02F00

2
Out of stock

15

.DELIVERLY PIPE

15730-48H00

1
Out of stock

16

.SCREW

13602-06148

1
Out of stock

17

CLIP

13671-29G00

4
Out of stock

18

.HOSE

13683-48H00

1
Out of stock

19

.HOSE

13683-48H10

1
Out of stock

20

NIPPLE

13685-29G00

1
Out of stock

21

HOSE (L:425) This part replaces 13683-10F60.

13683-10F61

1
Out of stock

22

3WAY,VACUUM HOSE

13685-02FA0

1
Out of stock

23

HOSE,ISC VALVE

13697-48H00

1
Out of stock

24

CLIP

09401-15101

1
Out of stock

25

CLIP

09401-18101

1
Out of stock
