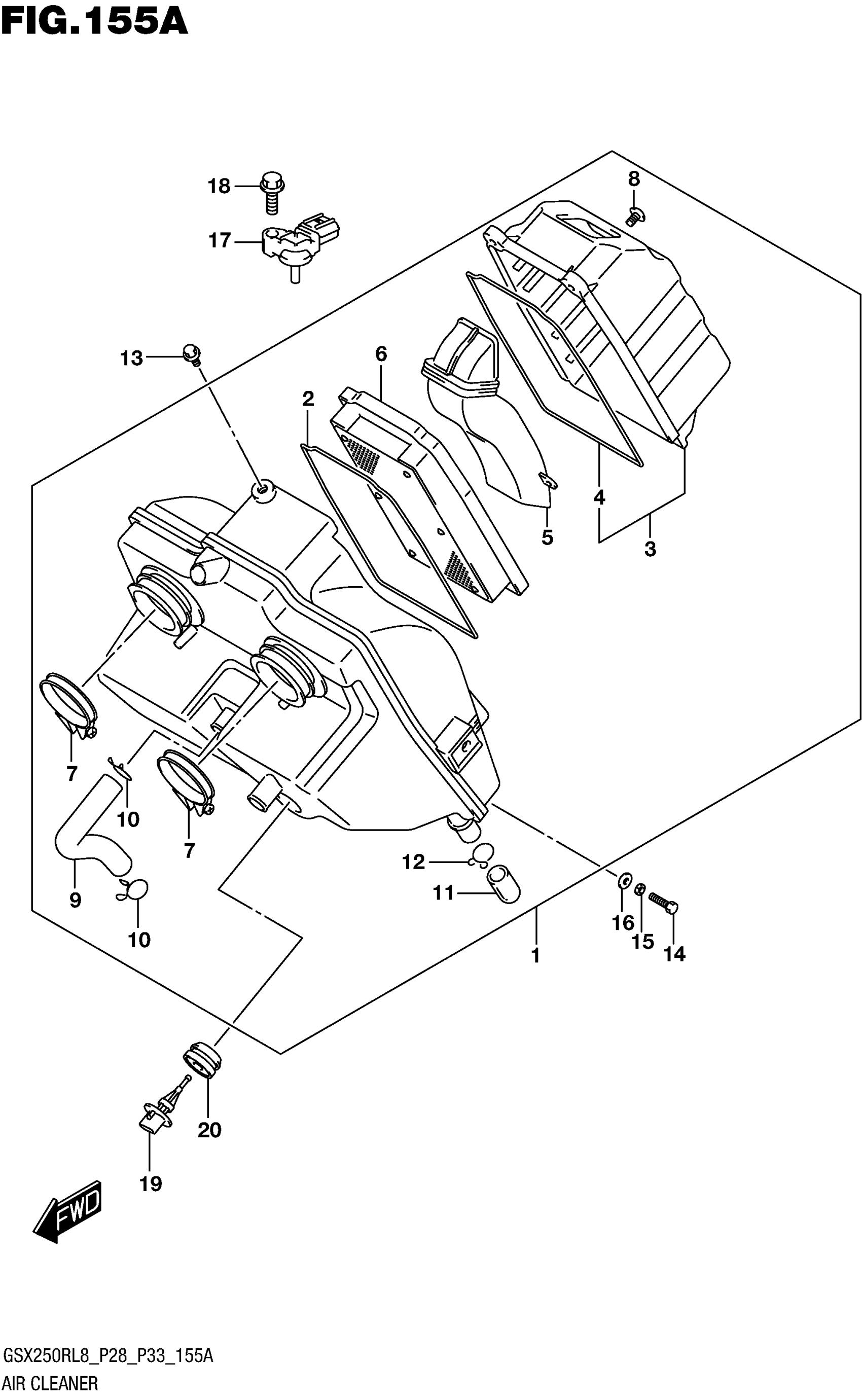

Find the part on the AIR Cleaner diagram for your 2018 Suzuki GSX250RL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Suzuki GSX250RL8 AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY, AIR

13700-48H03

1
Out of stock

2

.GASKET,AIR CLEANER This part replaces 13746-48H00.

13746-48H01

1
Out of stock

3

.CAP, AIR CLEANER

13740-48H00

1
Out of stock

4

.GASKET,AIR CLEANER This part replaces 13746-48H00.

13746-48H01

1
Out of stock

5

.TUBE, INLET

13891-48H00

1
Out of stock

6

.FILTER ASSY This part replaces 13780-48H00.

13780-48H01

1
Out of stock

7

.CLAMP

13826-48H00

2
Out of stock

8

.SCREW

02142-0512A

2
Out of stock

9

.TUBE, BREATHER

13853-48H00

1
Out of stock

10

.CLIP

09401-15101

2
Out of stock

11

.PLUG,DRAIN This part replaces 13878-48H00.

13878-48H01

1
Out of stock

12

.CLIP

09401-14101

1
Out of stock

13

BOLT

01550-0610A

1
Out of stock

14

BOLT

01500-0620A

1
Out of stock

15

LOCK WASHER

08321-0106A

1

$1.97

In stock

16

.WASHER (6.5X20X1.6)

09160-06088

1

$1.80

In stock

17

SENSOR,BOOST

18590-18K00

1
Out of stock

18

BOLT

01550-0520A

1

$0.83

In stock

19

SENSOR, AIR TEMP

13650-52G00

1
Out of stock
