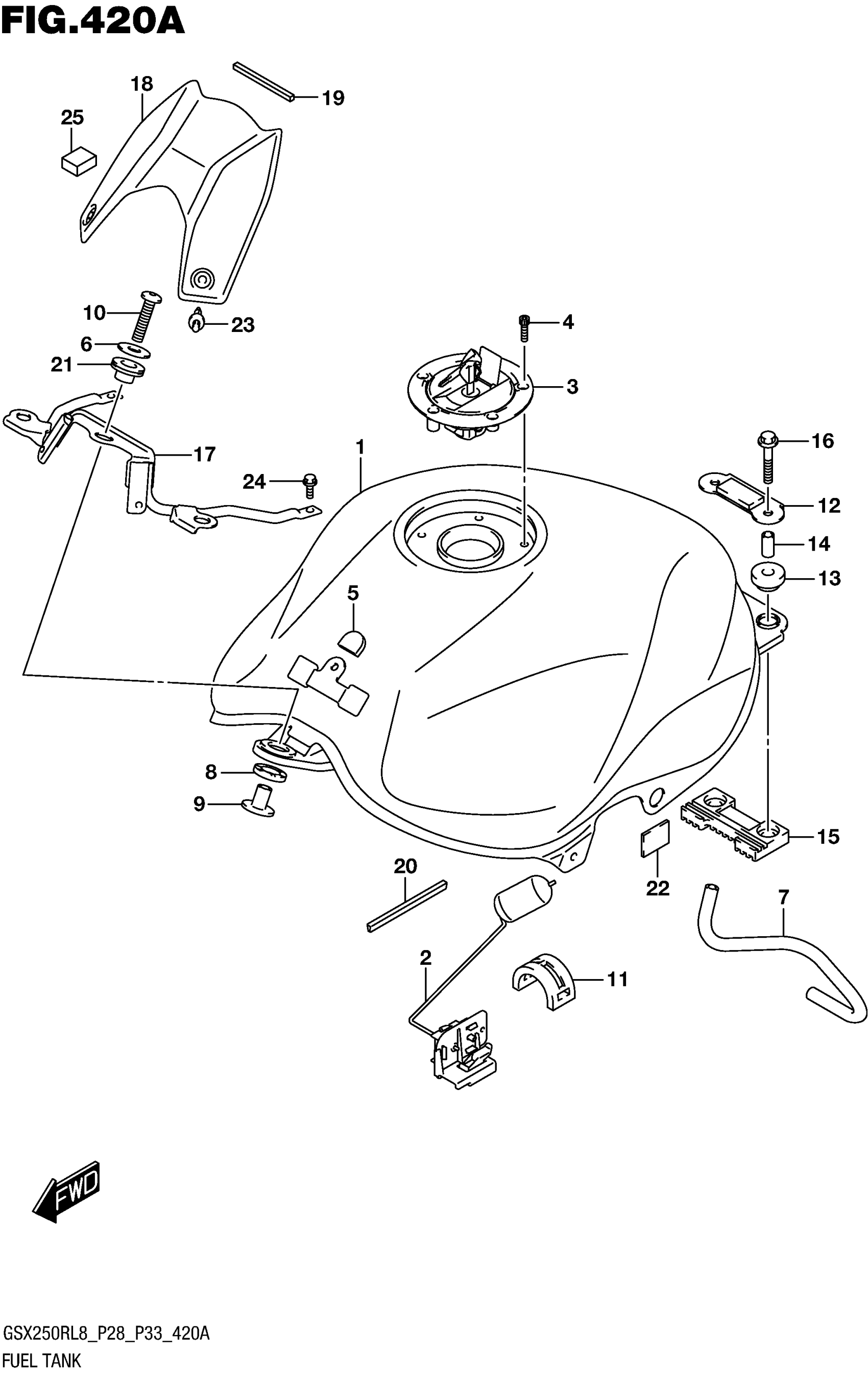

Suzuki GSX250RL8 (2018) FUEL TANK Diagram

#

Description
Price

1-1

TANK ASSY, FUEL (WHITE)

44100-20K00-QHW

$869.80

1-2

TANK ASSY, FUEL (BLACK)

44100-20K00-YAY

$869.80

2

GAUGE ASSY,FUEL LEVEL SENDER

34810-48H01

$91.57

3

CAP SET,FUEL TA This part replaces 44200-16870.

44200-16872

$172.96

4

BOLT (5X20)

44211-48H00

$2.58

5

CUSHION,FUEL TANK COVER

44276-48H00

$1.62

6

WASHER,FUEL TANK FRONT

44262-20K00

$3.48

7

HOSE,FUEL TANK WATER DRAIN

44423-48H10

Unavailable

8

CUSHION, FUEL TANK FRONT LWR

44511-20K00

$5.38

9

SPACER,FUEL TANK FRONT

44512-20K00

$6.02

10

SCREW,FUEL TANK FRONT

44513-48H10

$6.47

11

CUSHION,FUEL TANK SIDE

44541-48H00

$6.35

12

PLATE,FUEL TANK REAR

44540-20K00

$16.70

13

CUSHION,FUEL TANK RR UPR

44543-20K00

$5.38

14

SPACER,FUEL TANK RR

44544-48H00

Unavailable

15

CUSHION, FUEL TANK REAR LOWER

44545-20K00

$10.08

16

BOLT

01550-0635A

$2.31

17

BRACE,FUEL TANK COVER

44520-20K00

$63.02

18

COVER,FUEL TANK CENTER

44191-20K00

$26.55

19

CUSHION,FUEL TANK COVER CTR

44277-20K00

$6.75

20

MOLDING,FUEL TANK This part replaces 68241-20K00.

68241-20K01

$1.47

21

CUSHION, FUEL TANK FRONT UPR

44515-20K00

$4.77

22

FASTENER,FRAME COVER This part replaces 47351-20K00.

47351-20K01

$12.18

23

CLIP, FRAME COVER

48292-32GH0

$2.93

24

BOLT

01550-0612A

$1.97

25

CUSHION (20X25X11)

56327-48H00

$3.08
