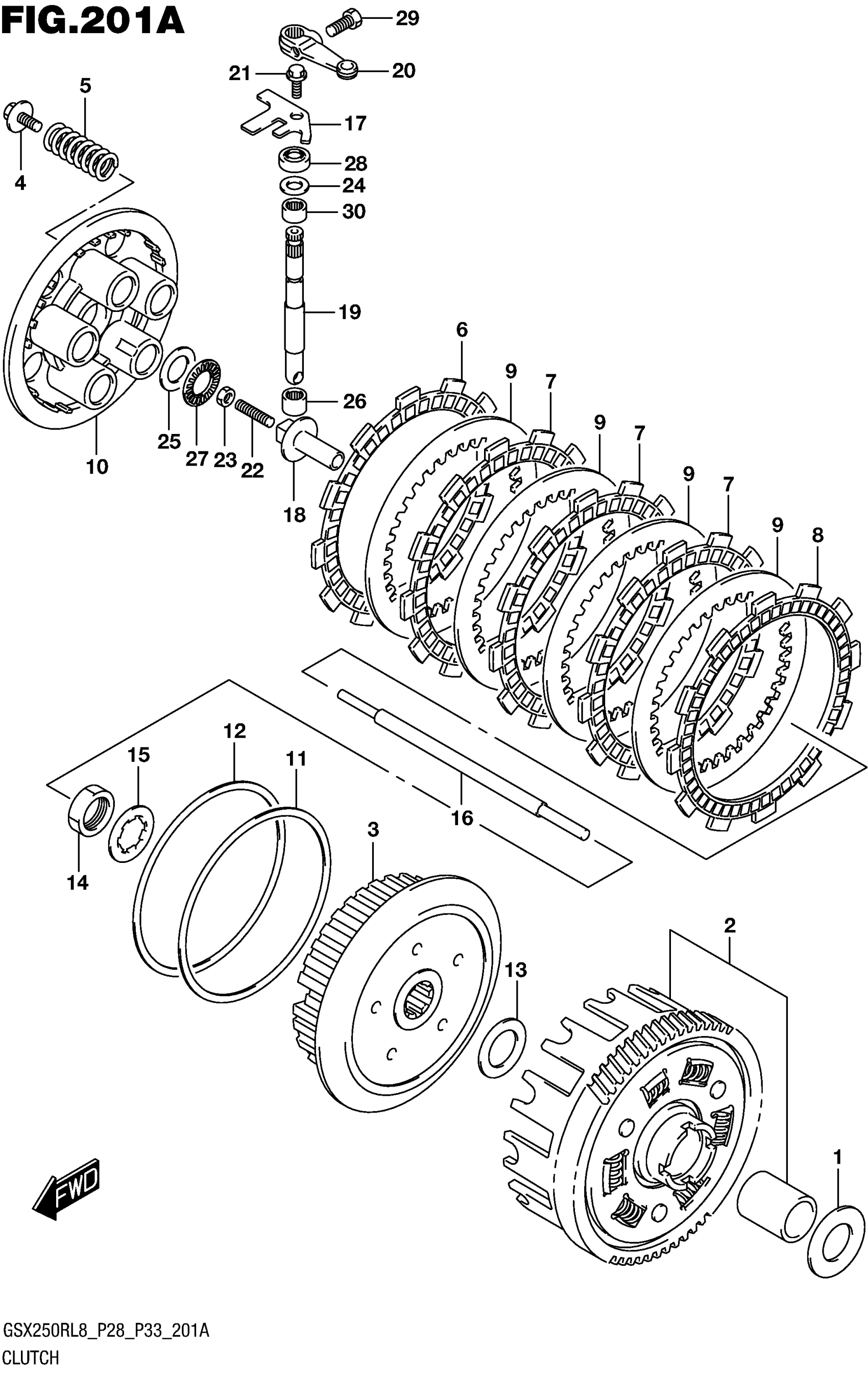

Suzuki GSX250RL8 (2018) CLUTCH Diagram

#

Description
Price

1

WASHER,THRUST

21252-48H00

$5.10

2

GEAR ASSY, PRIMARY DRIVEN

21200-48880

$276.18

2

(NT:68)

21200-48880

$276.18

3

HUB,CLUTCH SLEEVE

21411-48H00

$47.65

4

BOLT,CLUTCH SPRING

21412-48H00

$3.05

5

SPRING,CLUTCH

21413-48H10

$5.10

6

PLATE, CLUTCH DRIVE NO.1

21441-48H00

$53.73

6

(T:3.0)

21441-48H00

$53.73

7

PLATE, CLUTCH DRIVE NO.2

21441-48H10

$38.34

7

(T:3.0)

21441-48H10

$38.34

8

PLATE, CLUTCH DRIVE NO.3

21442-48H00

$54.07

8

(T:3.5)

21442-48H00

$54.07

9

PLATE,CLUTCH DRIVEN (T:2.0)

21451-48H00

$9.23

10

DISC,CLUTCH PRESSURE

21462-48H00

$26.63

11

SEAT,WAVE WASHER

21471-48H00

$9.30

12

WASHER, CLUTCH SLEEVE HUB WAV

21472-48H00

$11.08

13

WASHER

08211-22363

$4.35

14

NUT

09140-22005

$4.20

15

LOCK WASHER

09167-22029

$1.15

16

ROD,CLUTCH PUSH

23110-48H00

$11.53

17

RETAINER,CL RLSE OIL SEAL

23117-48H00

Unavailable

18

PIECE,CLUTCH PUSH

23121-48H00

Unavailable

19

CAMSHAFT,CLUTCH RELEASE

23122-48H10

$13.45

20

ARM,CLUTCH RELEASE

23271-48H00

Unavailable

21

BOLT (6X12)

09103-06233

$2.18

22

SCREW (6X25)

09134-06018

Unavailable

23

NUT

09140-06023

$2.07

24

WASHER (12.5X17X1)

09160-12119

$1.29

25

WASHER (15.5X28X1)

09160-15045

$3.52

26

BEARING (10X14X10)

09263-10023

$7.85

27

BEARING (15X28X2)

09263-15L01

$8.87

28

OIL SEAL (10X17X5)

09285-10L01

$4.55

29

BOLT

01500-0616A

$1.77

30

BEARING (12X16X10) This part replaces 09263-12028.

09263-12029

$6.77
