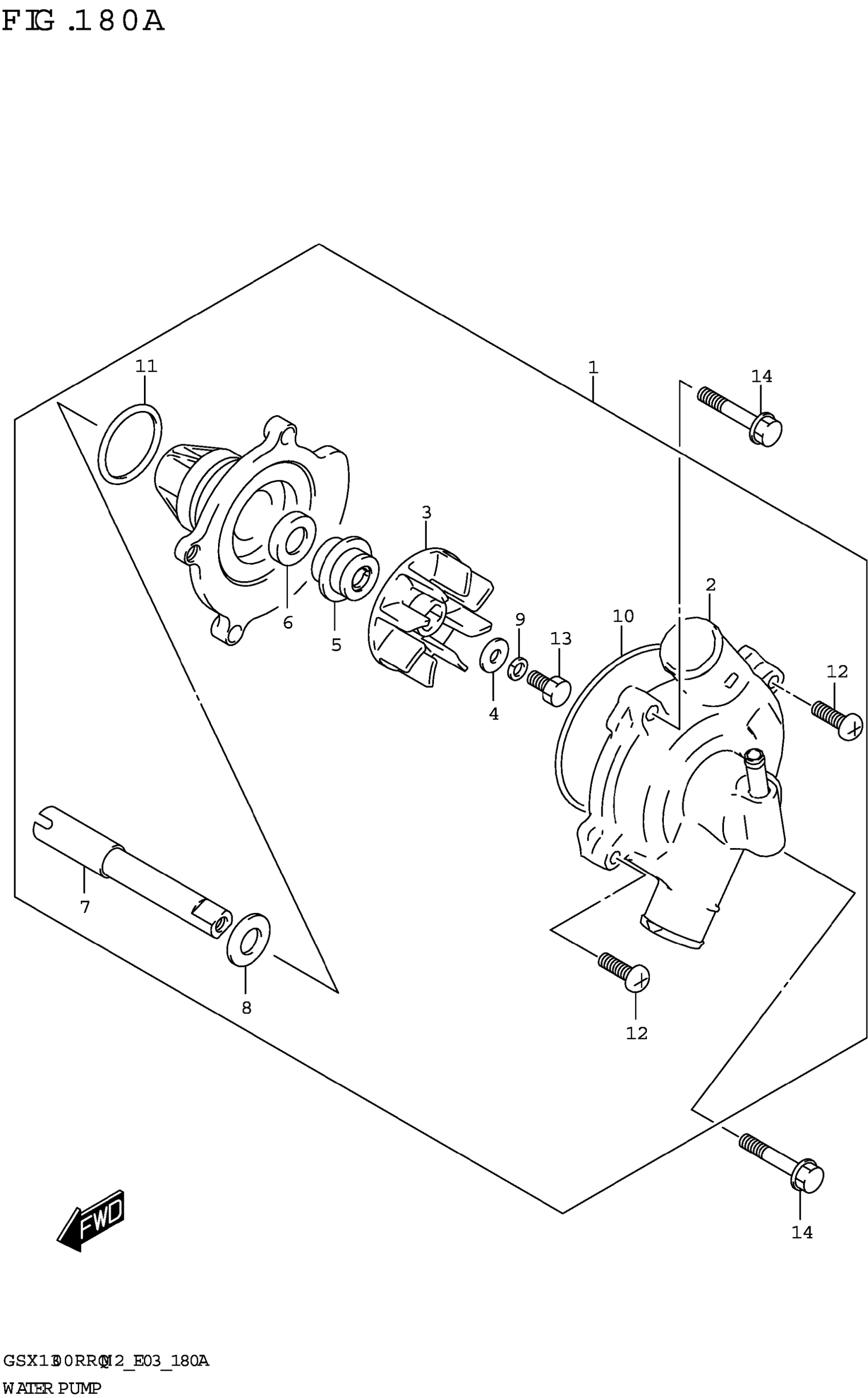

Suzuki GSX1300RRQM2 (2022) WATER PUMP Diagram

#

Description
Price

1

PUMP ASSY,WATER

17400-10L00

$241.08

2

.CASE

17411-10L00

$79.97

3

.IMPELLER

17491-17E01

$26.34

4

.GASKET (6X15X2.2)

09168-06025

$2.80

5

.SEAL,MECHANICAL

17470-02F11

$27.96

6

.SEAL,OIL (10X21X5)

17461-48G00

$13.02

7

.SHAFT

17511-24F10

$138.35

8

.WASHER

17432-07G00

$2.74

9

.WASHER

09164-06006

$2.66

10

.O-RING

17418-33401

$4.28

11

.O-RING

17435-33400

$14.63

12

.SCREW

02112-0616A

$1.46

13

.BOLT (6X13)

09100-06099

$2.08

14

BOLT

01547-0635A

$2.38
