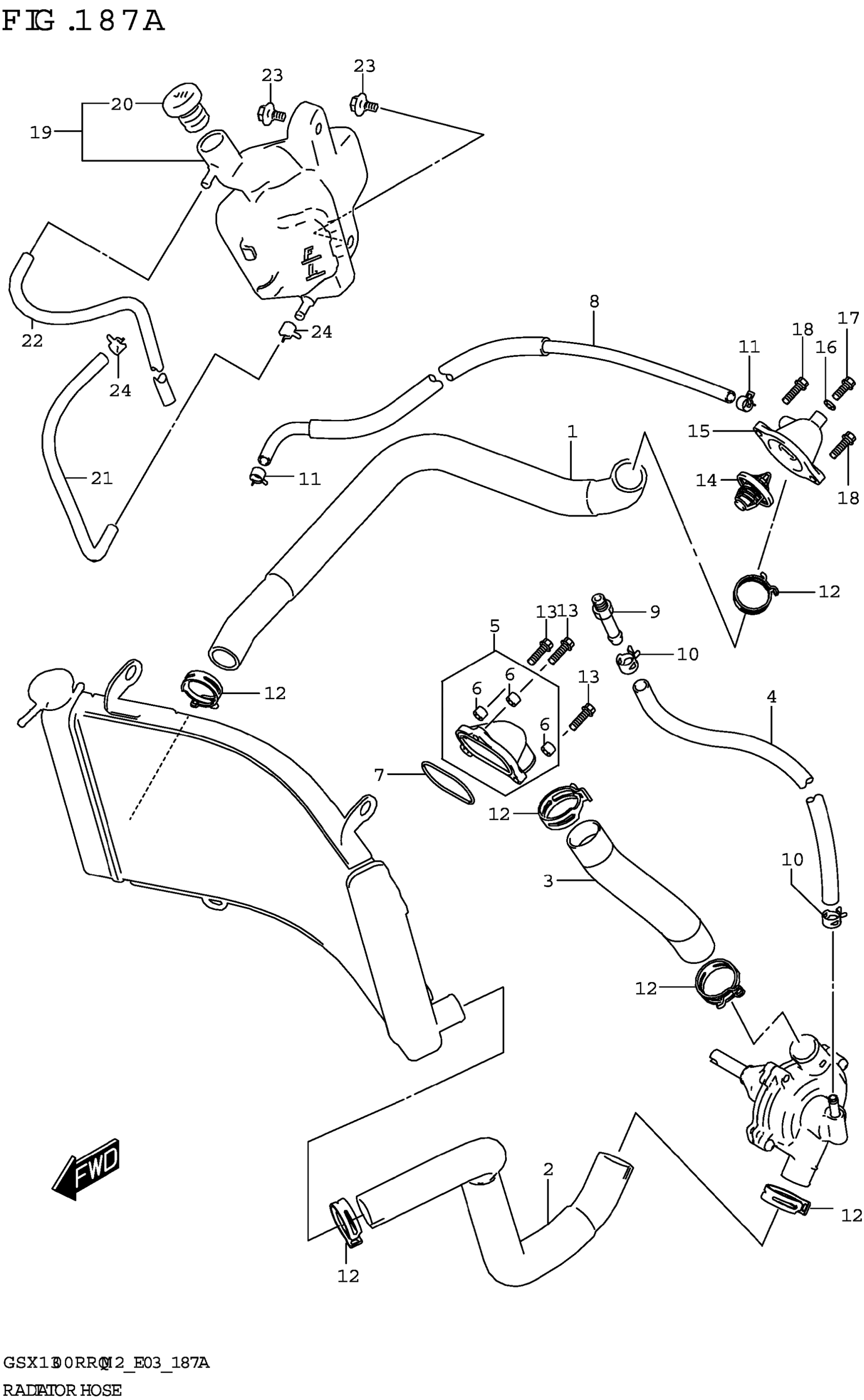

Suzuki GSX1300RRQM2 (2022) RADIATOR HOSE Diagram

#

Description
Price

1

HOSE,RADIATOR INLET

17851-10L00

$41.83

2

HOSE,RADIATOR OUTLET

17852-10L00

$40.48

3

HOSE,CYLINDER INLET

17853-10L00

$21.35

4

HOSE,WATER BYPASS

17854-10L00

$22.17

5

CONNECTOR, CYLINDER WATER

17861-33E20

$21.58

6

SPACER (6.5X9X8)

09180-06261

$1.97

7

O RING

17863-33E00

$3.86

8

HOSE,WATER AIR BLEED

17855-10L00

$24.90

9

UNION

09362-09011

$7.84

10

CLIP

09401-12414

$3.09

11

CLIP (ID:10.5,H:8)

09401-10409

$2.37

12

CLAMP

09401-29001

$2.80

13

BOLT

01547-0620A

$2.10

14

THERMOSTAT,WATER

17670-15H00

$35.20

15

COVER, THERMOSTAT

17661-35F00

$57.22

16

GASKET (6.4X11.5X0.84)

09168-06026

$2.88

17

UNION BOLT,AIR VENT

17568-50F00

$6.32

18

BOLT

01547-0620A

$2.10

19

TANK ASSY,RESERVOIR

17910-10L00

$24.38

20

.CAP,WATER RESERVOIR TANK

17931-31J00

$8.13

21

HOSE (5X9X600)

09352-50901-600

$7.63

22

HOSE,RESERVOIR TANK OVER FLOW

17982-10L00

$11.17

23

BOLT (6X12)

09111-06085

$4.28

24

CLIP (ID:8.6)

09401-08411

$1.82
