2022 Suzuki GSX1300RRQM2 Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2022 Suzuki GSX1300RRQM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

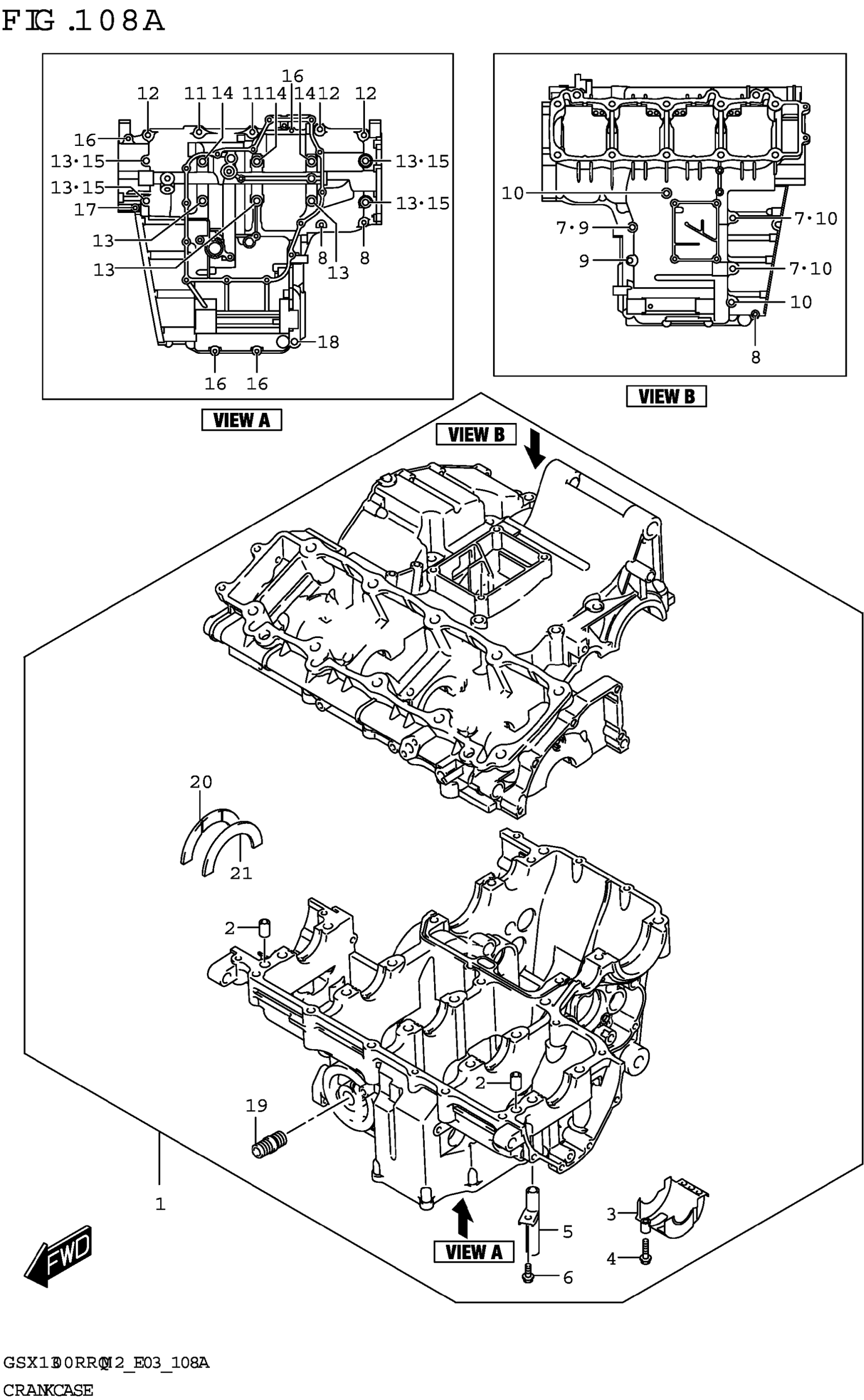

2022 Suzuki GSX1300RRQM2 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE SET

11300-10810

1
Out of stock

2

PIN,CRANKCASE

11319-33E50

4
Out of stock

3

.SEPARATOR,OIL

11323-24F10

1
Out of stock

4

BOLT

01547-0625A

1
Out of stock

5

.UNION,BREATHER

11328-24F00

1
Out of stock

6

BOLT

01547-0612A

1
Out of stock

7

GASKET (8.2X14X1)

09168-08016

3
Out of stock

8

BOLT

01547-0650A

3
Out of stock

9

.BOLT

01550-0865A

2
Out of stock

10

.BOLT

01550-0880A

4
Out of stock

11

.BOLT (8X60)

09103-08155

2
Out of stock

12

.BOLT (8X50)

09103-08355

3
Out of stock

13

.BOLT (9X95)

09103-09008

7
Out of stock

14

.BOLT (9X115)

09103-09010

3
Out of stock

15

.GASKET (10.2X20X2.3)

09168-10031

4
Out of stock

16

BOLT

01547-0640A

4
Out of stock

17

BOLT

01547-0660A

1
Out of stock

18

.BOLT

01550-1060A

1

$5.13

In stock

19

UNION,OIL STAND

16591-06B01

1
Out of stock

20

.BEARING,CRANK THRUST (GREEN) | N)

12228-24F00-0D0

1
Out of stock

21-1

.BEARING,CRANK THRUST,L (RED)

12228-24F00-0A0

1
Out of stock

21-2

.BEARING,CRANK THRUST,L (BLAC | K)

12228-24F00-0B0

1
Out of stock

21-3

.BEARING,CRANK THRUST,L (BLUE | )

12228-24F00-0C0

1
Out of stock

21-4

.BEARING,CRANK THRUST (GREEN) | N)

12228-24F00-0D0

1
Out of stock

21-5

.BEARING,CRANK THRUST,L (YELL | OW)

12228-24F00-0E0

1
Out of stock

21-6

.BEARING,CRANK THRUST,L (WHIT | E)

12228-24F00-0F0

1
Out of stock
