2022 Suzuki GSX1300RRQM2 Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2022 Suzuki GSX1300RRQM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

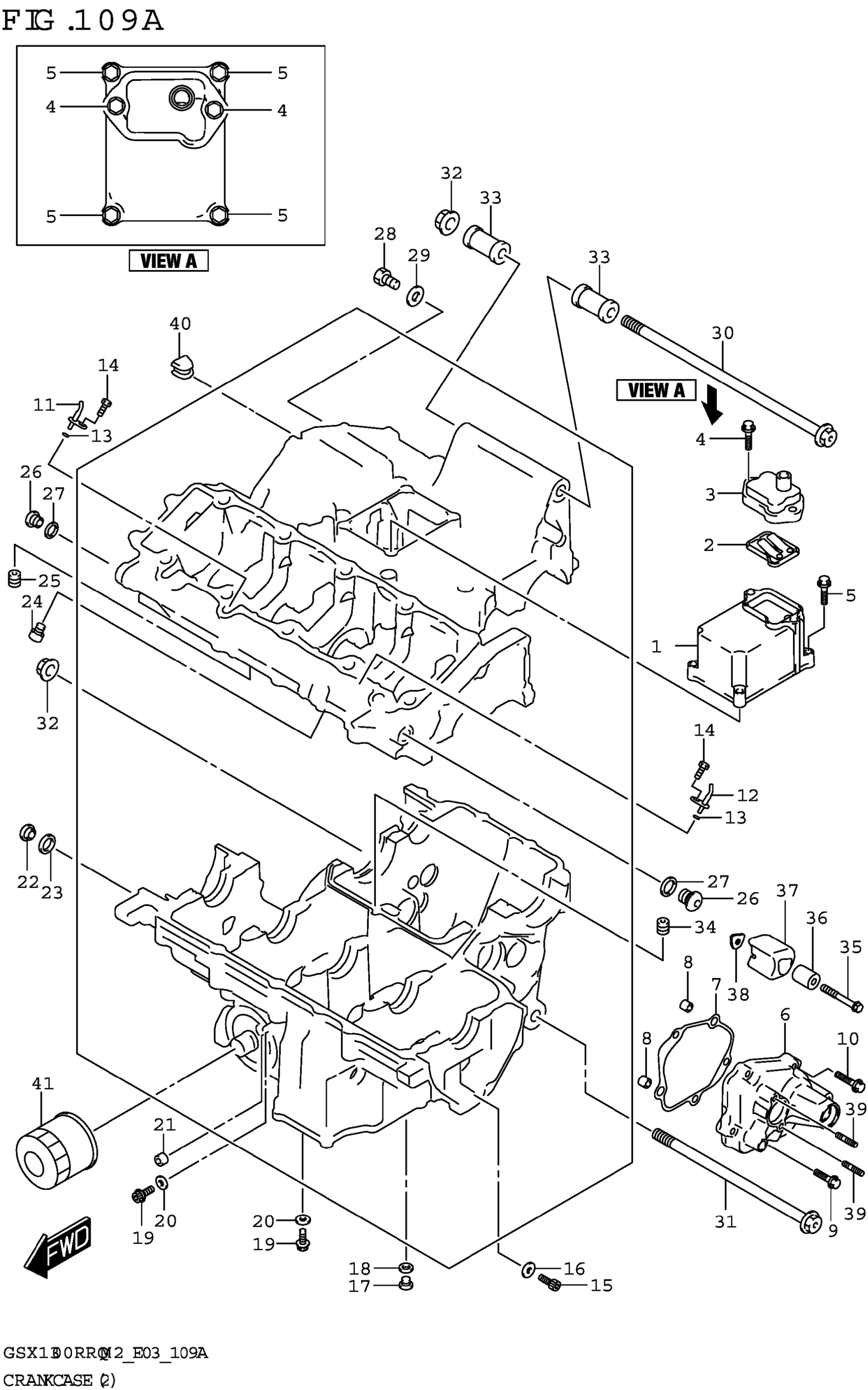

2022 Suzuki GSX1300RRQM2 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER,BREATHER

11331-15H00

1

$99.63

In stock

2

1

$78.90

In stock

3

1

$21.70

In stock

4

BOLT

01547-0620A

2
Out of stock

5

BOLT

01547-0630A

4

$2.48

In stock

6

COVER,GEAR SHIFT

11383-10L00

1

$114.80

In stock

7

1

$6.49

In stock

8

PIN (8.5X18X2.3)

04211-09149

2
Out of stock

9

BOLT

01547-0625A

3
Out of stock

10

BOLT

01547-0635A

2
Out of stock

11

JET,PISTON COOLING

11390-34E00

2
Out of stock

12

JET,PISTON COOLING

11390-34E10

2
Out of stock

13

O-RING (D:1.2,ID:4)

09280-04004

4

$2.03

In stock

14

BOLT (6X12)

09106-06075

4
Out of stock

15

BOLT

07130-0816B

1

$4.62

In stock

16

GASKET (8.2X14X1)

09168-08016

1
Out of stock

17

PLUG (10X10)

09248-10010

1
Out of stock

18

GASKET (10X14X3.6)

09168-10002

1

$2.27

In stock

19

BOLT

07120-0612A

1
Out of stock

20

GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

21

JET,OIL PAN GALLERY

11532-46E00

1

$13.02

In stock

22

PLUG (16X8)

09248-16012

1
Out of stock

23

GASKET (16X22X2)

09168-16002

1
Out of stock

24

BOLT (6X10)

09103-06188

4

$3.17

In stock

25

JET,AIR (#100)

09493-20012

1
Out of stock

26

PLUG (14X12)

09248-14011

1
Out of stock

27

GASKET (13.8X18.8X4.8)

09168-14002

1
Out of stock

28

BOLT

07120-0612A

2
Out of stock

29

GASKET (5.8X13X1.2)

09168-06023

2
Out of stock

30

BOLT (12X320)

09103-12120

1

$36.20

In stock

31

BOLT (12X243)

09103-12119

1

$33.80

In stock

32

NUT

09159-12056

2

$7.15

In stock

33

SPACER,ENG MTG (L47)

11611-24F00

2

$30.20

In stock

34

JET,T/M OIL

09493-40004

1

$11.40

In stock

35

BOLT (L:45)

09103-06532

1

$2.39

In stock

36

SPACER

09180-06381

1

$7.60

In stock

37

1

$35.75

In stock

38

1

$9.33

In stock

39

BOLT,STUD

09108-05007

2

$2.87

In stock

40

1

$8.23

In stock

41

FILTER ASSY,ENGINE OIL (P1.0)

16510-07J00

1
Out of stock
