2022 Suzuki GSX1300RRQM2 Stand Diagram

← All diagrams

Find the part on the Stand diagram for your 2022 Suzuki GSX1300RRQM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

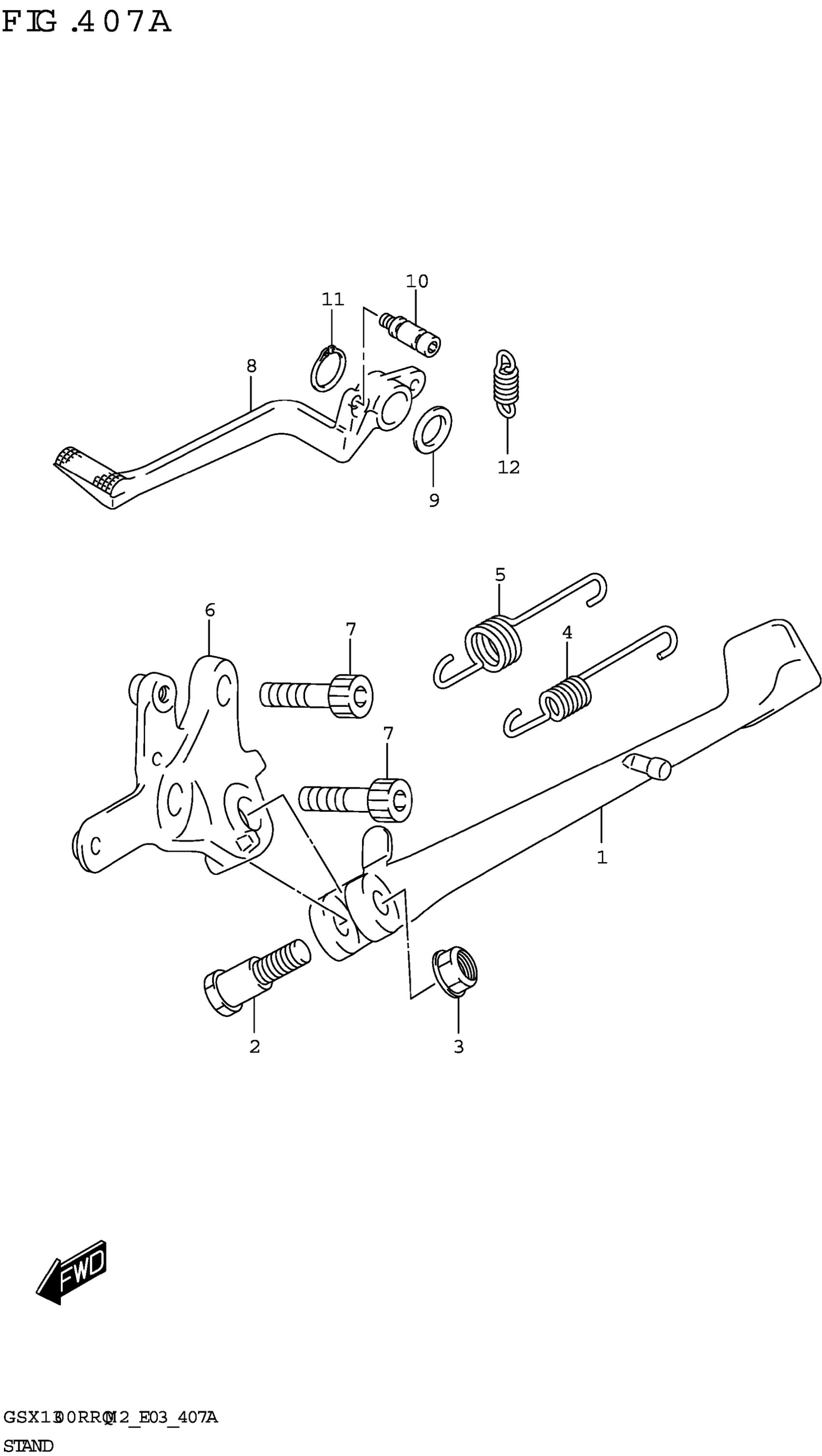

2022 Suzuki GSX1300RRQM2 Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND,PROP

42310-24F00

1
Out of stock

2

BOLT (10X21)

09111-10059

1
Out of stock

3

NUT

09159-10103

1
Out of stock

4

SPRING

09443-14068

1
Out of stock

5

SPRING

09443-19015

1
Out of stock

6

BRACKET,PROP STAND

42330-24F01

1
Out of stock

7

BOLT (12X35)

09106-12003

2
Out of stock

8

PEDAL,BRAKE

43110-10L00

1
Out of stock

9

WASHER

09160-16057

1
Out of stock

10

HOOK,RETURN SPRING

43561-24F00

1
Out of stock

11

CIRCLIP

08331-31169

1
Out of stock

12

SPRING

09443-13032

1
Out of stock
