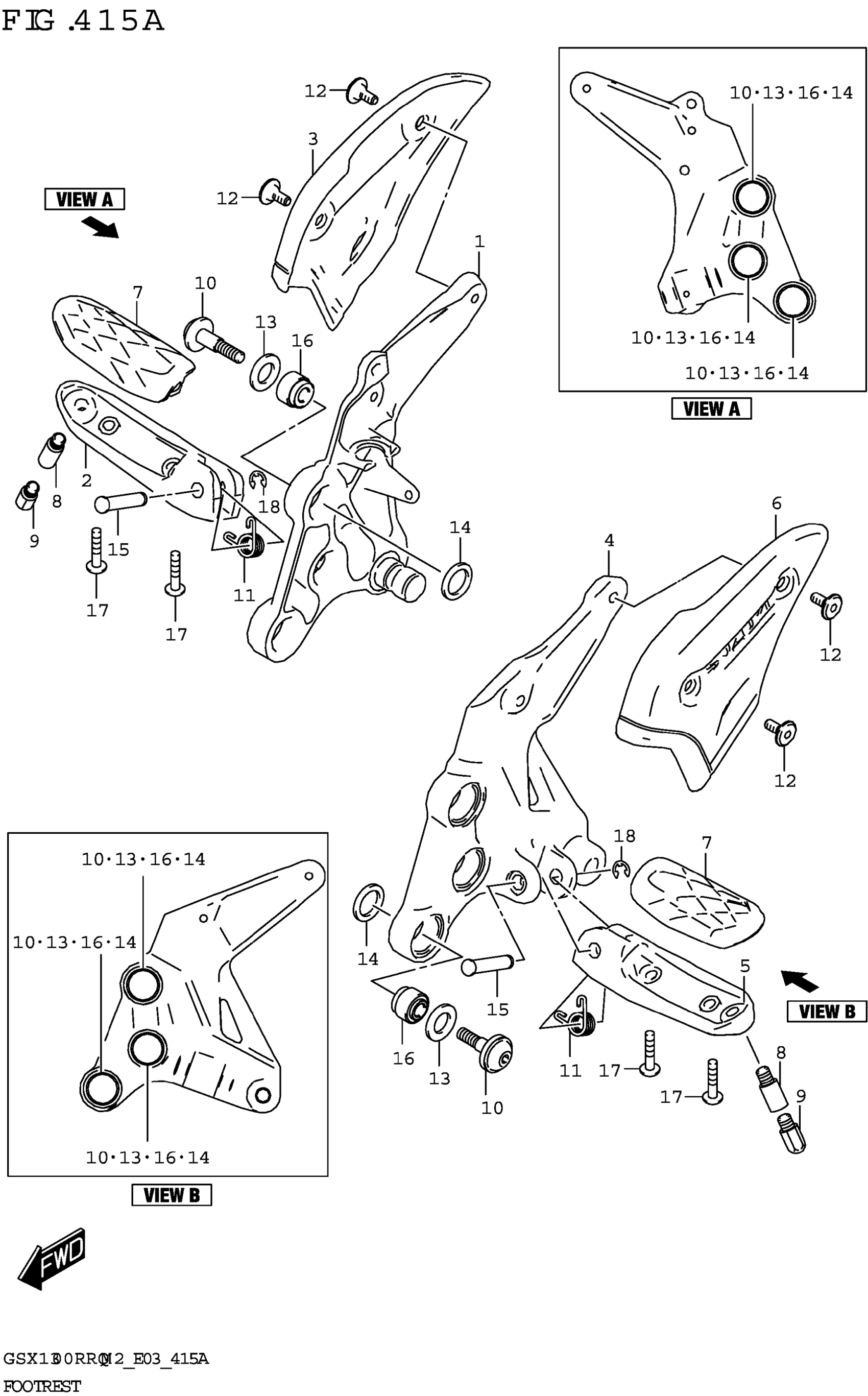

Suzuki GSX1300RRQM2 (2022) FOOTREST Diagram

#

Description
Price

1

BRACKET,FR FOOTREST RH

43510-10L00

$204.02

2

BAR,FRONT FOOTREST RH

43516-10L00

$40.10

3

GUARD,FR FOOTREST RH

43571-10L00

$15.48

4

BRACKET,FR FOOTREST LH

43521-10L00

$174.10

5

BAR,FRONT FOOTREST LH

43526-10L00

$39.90

6

GUARD,FR FOOTREST LH

43572-10L00

$15.48

7

RUBBER, FOOTREST

43550-10L00

$19.77

8

SENSOR,FOOTREST

43576-15H00

$14.34

9

SENSOR,FOOTREST

43576-15H40

$16.02

10

BOLT (8X30)

09106-08147

$5.92

11

SPRING,FRONT FOOTREST

43581-47H00

$3.19

12

SCREW (5X13)

09139-05092

$2.29

13

WASHER (13.7X24X2)

09161-13004

$3.71

14

WASHER (17.2X24X2.2)

09161-17002

$5.00

15

PIN

09208-08019

$2.80

16

BUSH (8.4X20X16)

09319-08045

$18.85

17

.SCREW

02142-0516A

$1.46

18

E-RING

08332-1106A

$1.46
