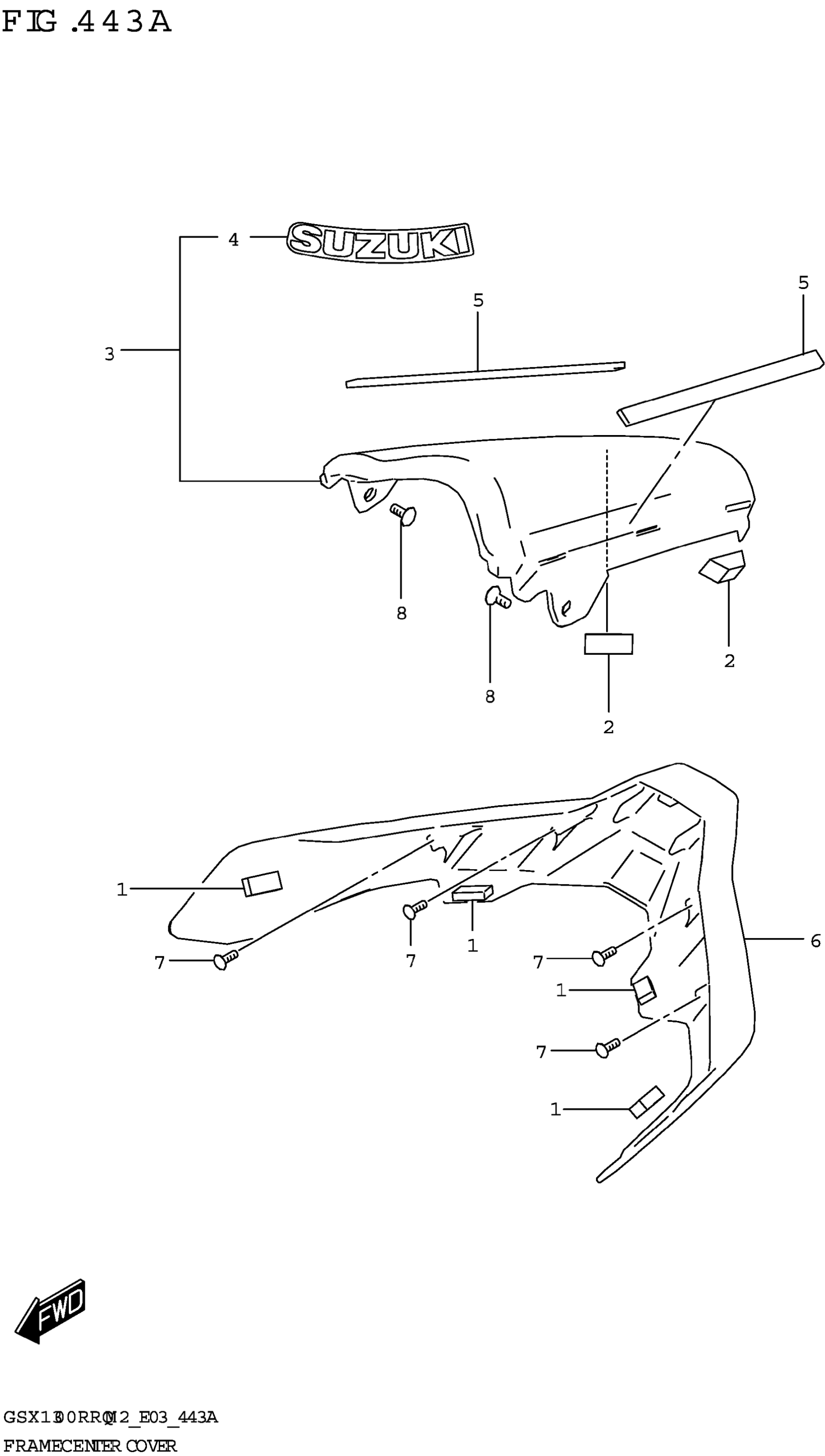

Suzuki GSX1300RRQM2 (2022) FRAME CENTER COVER (GSX1300RRQ) Diagram

#

Description

Price

1

CUSHION,FRAME COVER UNDER

47113-10L00

$0.78

2

CUSHION,FRAME COVER CTR

47114-10L00

$3.08

3-1

COVER,FRAME CTR (BLACK) | BODY COLOR:B5L

47310-10L00-YVB

$106.52

3-2

COVER,FRAME CTR (WHITE) | BODY COLOR:B5N

47310-10L00-YUH

$106.52

4-1

.EMBLEM,SUZUKI (GRAY) | BODY COLOR:B5L

68641-19F01-YLF

$9.07

4-2

.EMBLEM,"SUZUKI" (GRAY) | BODY COLOR:B5N

68641-19F01-PGZ

$9.07

5

CUSHION,FRAME COVER CTR

47324-10L00

$1.48

6-1

COVER,FRAME UNDER (GOLD) | BODY COLOR:B5L

47511-10L00-QSY

$254.62

6-2

COVER,FRAME UNDER (BLUE) | BODY COLOR:B5N

47511-10L00-YUA

$244.77

7

SCREW

03541-0412A

$1.41

8

SCREW

03541-0512A

$1.41
