2022 Suzuki GSX1300RRQM2 Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2022 Suzuki GSX1300RRQM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

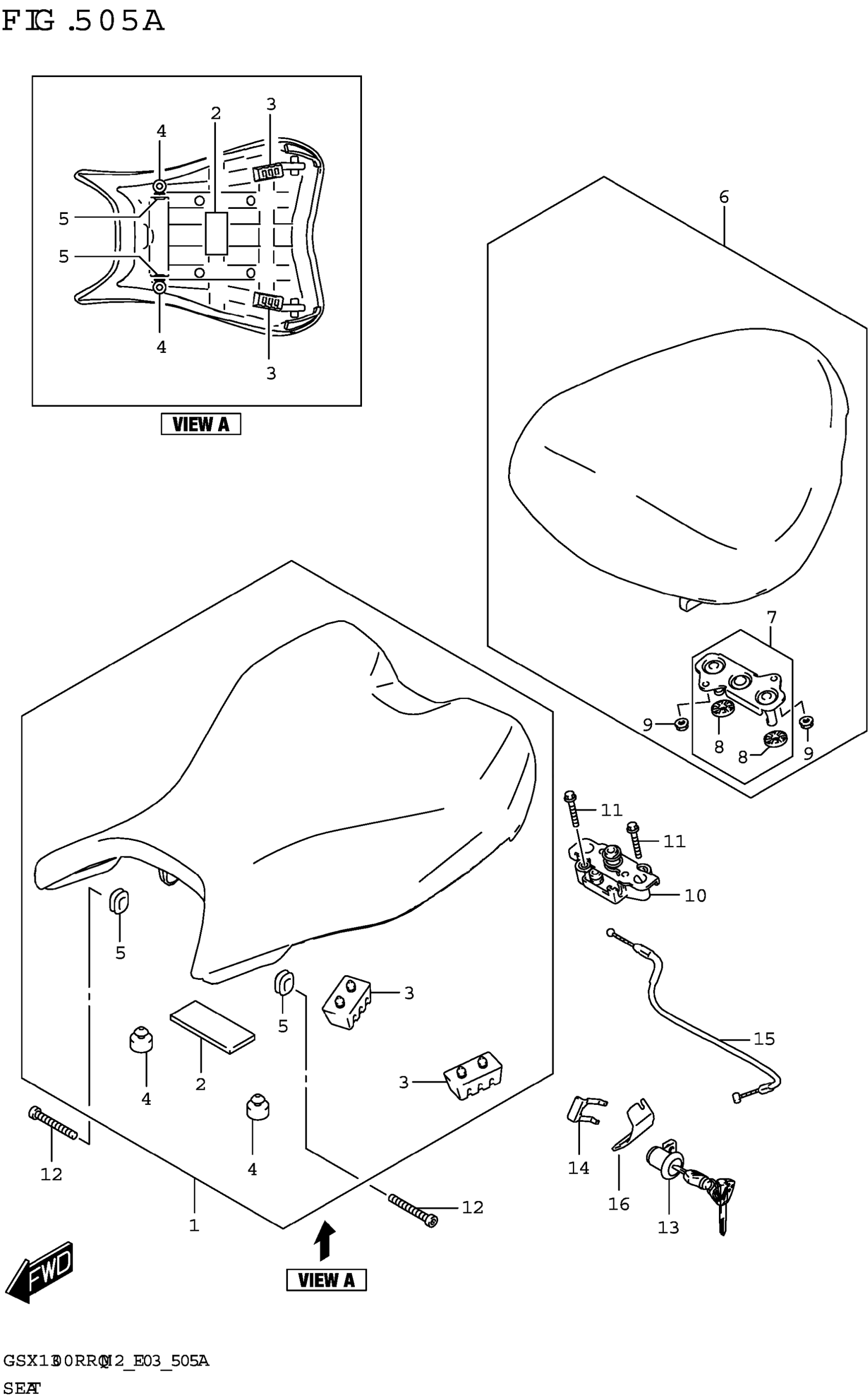

2022 Suzuki GSX1300RRQM2 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAT ASSY (BLACK) This part replaces 45100-10L00-QUZ.

45100-10L01-QUZ

1
Out of stock

2

.CUSHION

45117-15H01

1
Out of stock

3

.CUSHION,SUPPORT (50X25X32)

45149-45330

2
Out of stock

4

.CUSHION

09321-10011

2
Out of stock

5

.CUSHION

45118-15H00

2
Out of stock

6

SEAT ASSY,PILLION (BLACK) This part replaces 45300-10L00-QUZ.

45300-10L03-QUZ

1
Out of stock

7

.STRIKER,SEAT LOCK

45290-10L00

1
Out of stock

8

..CUSHION

45213-42F00

2
Out of stock

9

NUT (6X12)

08316-1006A

2
Out of stock

10

BRACKET,STRIKER SUPPORT

45220-15H00

1
Out of stock

11

BOLT

01547-0630A

2
Out of stock

12

BOLT,SEAT FR

45191-15H00

2
Out of stock

13

LOCK SET, SEAT This part replaces 95700-14F00.

95700-14810

1
Out of stock

14

PLATE,SEAT LOCK ASSY

45289-11F00

1
Out of stock

15

CABLE,SEAT LOCK

45280-26F00

1
Out of stock

16

GUIDE,SEAT LOCK CABLE

45288-14F00

1
Out of stock
