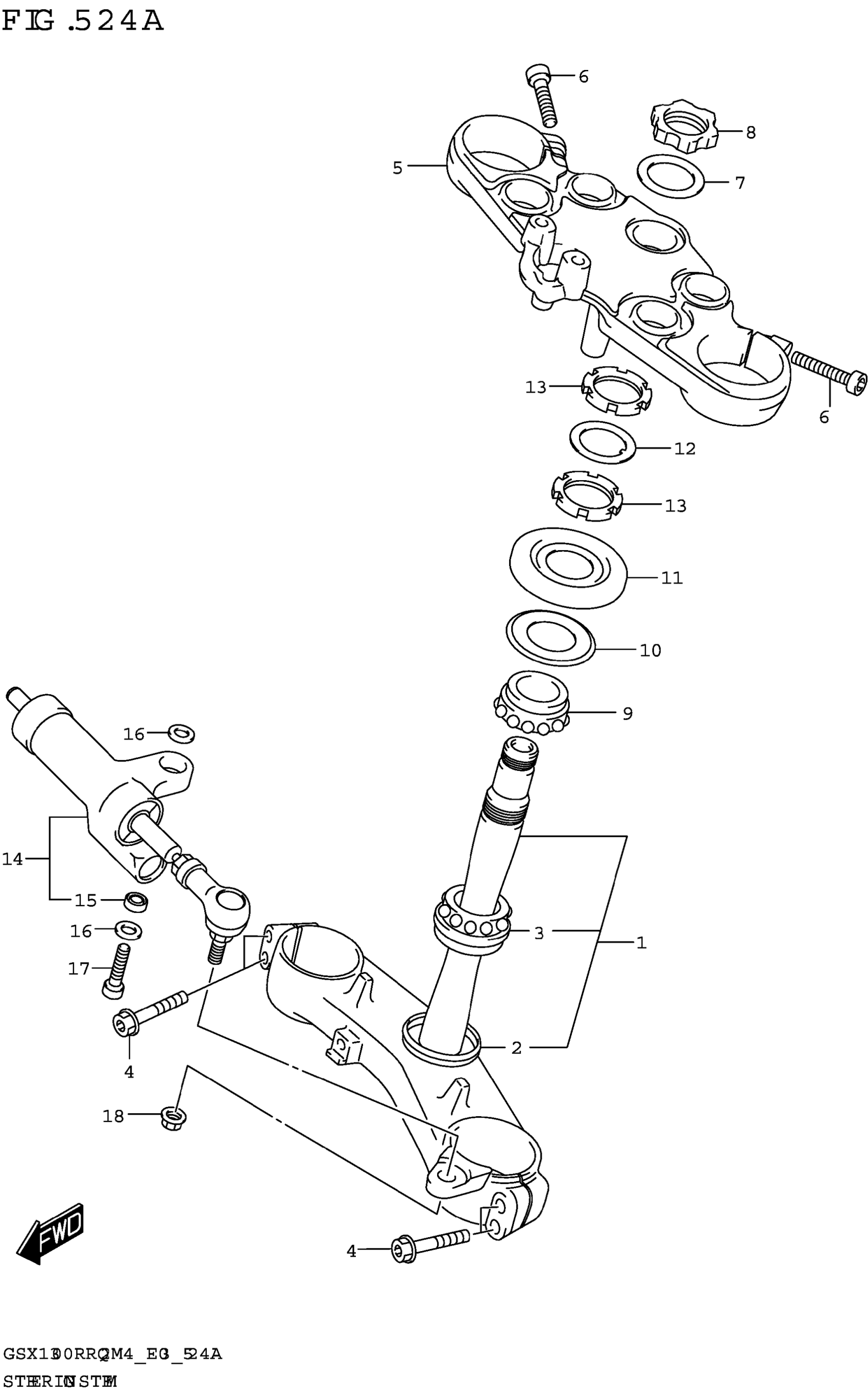

Suzuki GSX1300RRQ2M4 (2024) STEERING STEM Diagram

#

Description
Price

1

BRACKET,FR FORK UNDER

51410-24F50

$1,146.85

2

.SEAL,STEERING LWR (30.1X56X4

51644-12C00

$9.04

3

.BEARING (30X55X17)

09267-30010

$44.72

4

BOLT,AXLE STOPPER (8X40)

51166-01D80

Unavailable

5

BRACKET,FR FORK UPR

51311-24F50

$486.92

6

BOLT

51328-24F50

$10.35

7

WASHER

51356-24F50

$7.35

8

NUT

51353-06L00

$36.28

9

.BEARING (30X55X17)

09267-30010

$44.72

10

.SEAL,STEERING LWR (30.1X56X4

51644-12C00

$9.04

11

COVER,STEERING UPR

51643-41G00

$8.57

12

WASHER,STEERING STEM

51641-33E00

$5.93

13

NUT,STEERING STEM

51631-33E00

$22.62

14

DAMPER ASSY,STEERING

51750-15H00

$858.35

15

.BEARING (8X17.5X11)

09269-08003

$48.44

16

SEAL,PILLOW BALL,DUST

64339-14101

$7.83

17

NUT

08319-3108A

$2.38

18

BOLT (8X35)

09103-08391

$2.62
