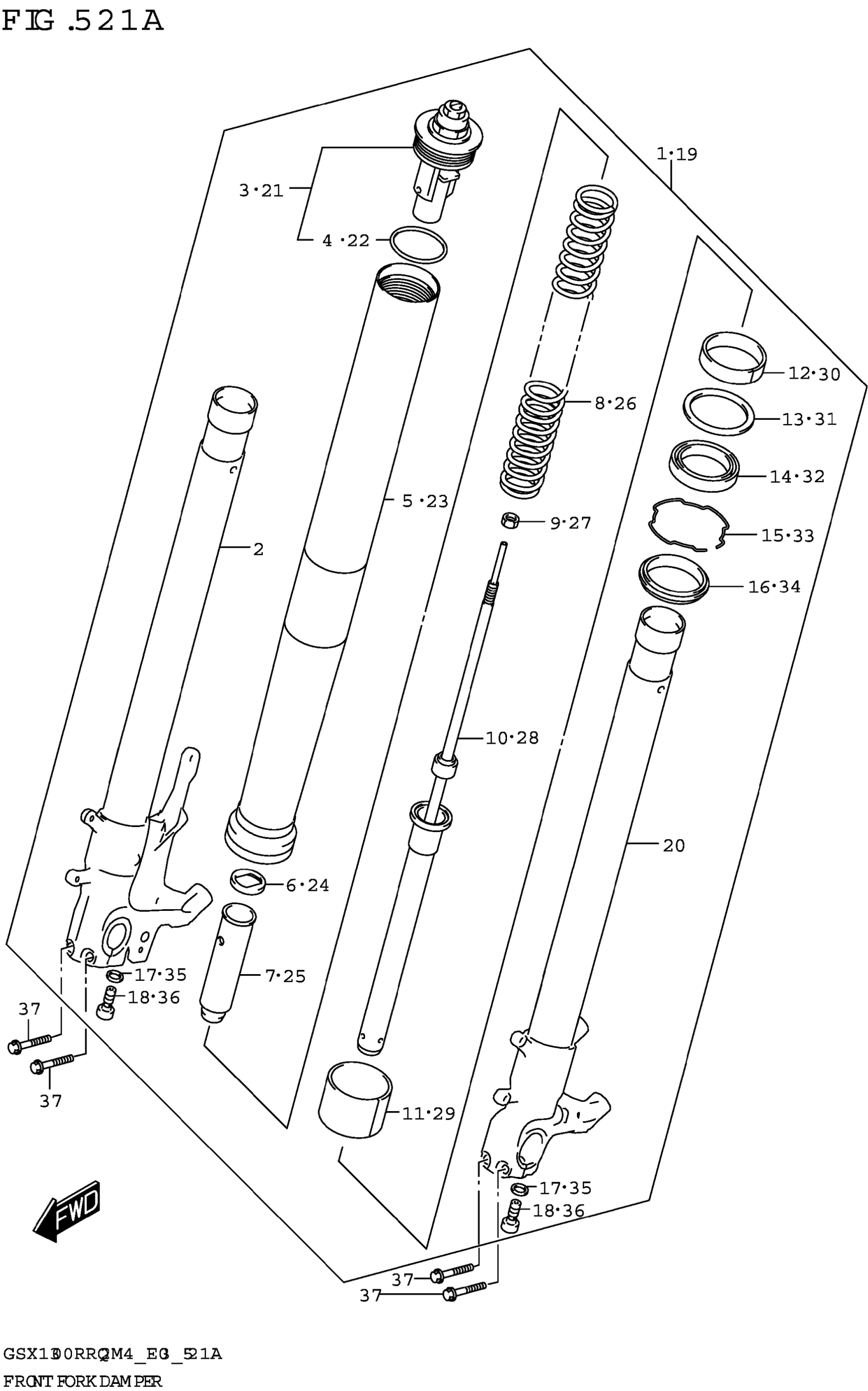

Suzuki GSX1300RRQ2M4 (2024) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY,R

51103-10L00

$1,636.41

2

.TUBE,INNER RH

51110-10L00

$805.38

3

.CAP

51351-10L00

$195.45

4

..O RING

62278-14100

$3.69

5

.TUBE,OUTER

51131-10L00

$629.73

6

.WASHER

51158-40F30

$11.75

7

.SPACER, SPRING

51176-40F30

$29.78

8

.SPRING

51171-10L00

$88.40

9

.NUT, ROD

51352-13A60

$3.42

10

.CYLINDER

51146-10L00

$463.95

11

.PISTON

51112-31J00

$12.25

12

.METAL,SLIDE

51152-31J00

$11.72

13

.WASHER

51158-14200

$4.75

14

.SEAL,OIL

51153-41G00

$23.04

15

.RING,STOPPER

51156-14200

$4.63

16

.SEAL,DUST

51173-41G00

$24.34

17

.GASKET

51148-41310

$2.14

18

.BOLT

51147-24F50

$9.87

19

DAMPER ASSY,L

51104-10L00

$1,636.41

20

.TUBE,INNER LH

51120-10L00

$805.38

21

.CAP

51351-10L00

$195.45

22

..O RING

62278-14100

$3.69

23

.TUBE,OUTER

51131-10L00

$629.73

24

.WASHER

51158-40F30

$11.75

25

.SPACER, SPRING

51176-40F30

$29.78

26

.SPRING

51171-10L00

$88.40

27

.NUT, ROD

51352-13A60

$3.42

28

.CYLINDER

51146-10L00

$463.95

29

.PISTON

51112-31J00

$12.25

30

.METAL,SLIDE

51152-31J00

$11.72

31

.WASHER

51158-14200

$4.75

32

.SEAL,OIL

51153-41G00

$23.04

33

.RING,STOPPER

51156-14200

$4.63

34

.SEAL,DUST

51173-41G00

$24.34

35

.GASKET

51148-41310

$2.14

36

.BOLT

51147-24F50

$9.87

37

BOLT, AXLE STOPPER

51434-40H20

$3.38
